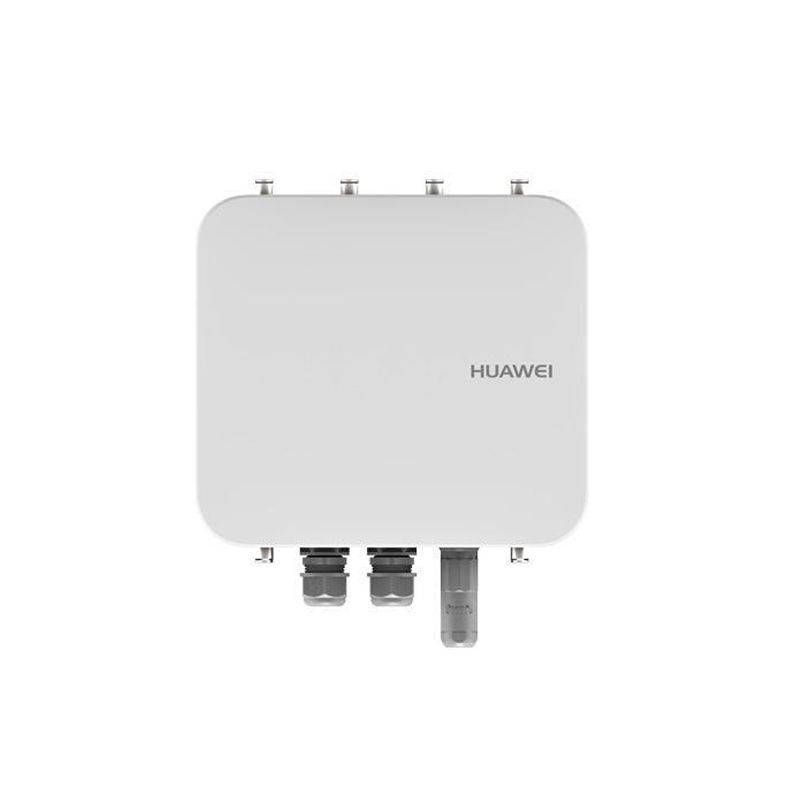

AP8130DN, Huawei AP8130 Series Access Point, 3x3 MIMO, Outdoor, Ext. Antenna
Brand: Huawei · SKU: AP8130DN · MPN: AP8130DN · Category: Networking
AP8130DN Mainframe (11ac, General AP Outdoor, 3x3 Double Frequency, External Antenna)
Specifications
| Model | AP8130DN |
|---|---|
| Weight | 9 kg |
| Altitude | 196.8 ft. to 16,404.1 ft. (-60m to 5,000m) |
| Humidity | 5% to 95% (Non-condensing) |
| Power input | PoE: in compliance with IEEE 802.3at |
| Antenna Gain | ·2.4G: 2.5 dBi ·5G: 4 dBi |
| Antenna Type | Built-in |
| Channel Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n: 6.5 Mbit/s to 450 Mbit/s 802.11ac: 6.5 Mbit/s to 1,300 Mbit/s |
| System memory | 256MB DDR3 64MB flash memory |
| Waterproof grade | IP67 |
| Storage temperature | -40 o F to 158 o F (-40 o C to 70 o C) |
| Receiver Sensitivity | 2.4GHz 802.11b (CCK) -100 dBm @ 1 Mbit/s -90 dBm @ 11 Mbit/s |
| Operating temperature | -40 o F to 14 0 oF (-40 o C to 60 o C) |
| Maximum Number of Users | ≤ 256 Note: The number of concurrent online users on each VAP or radio frequency cannot exceed 128 |
| Dimensions (H × W × D) | 39in. x 10.2in. x 11.4in. (100mm x 260mm x 290mm) |
| Maximum power consumption | 22.4W Note: Maximum power consumption depends on local laws and regulations |
| Maximum Transmit Power for each Radio Frequency | 2.4GHz: 23 dBm 5GHz: 21 dBm Note: The 2.4GHz radio frequency does not support the 40M bandwidth in F.C.C. regions (including America). The actual transmit power depends on local laws and regulations. You can adjust the transmit power to the maximum transmit power of 15 dB in 1 dB steps |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AP8130DN, Huawei AP8130 Series Access Point, 3x3 MIMO, Outdoor, Ext. Antenna (AP8130DN) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AP8130DN, Huawei AP8130 Series Access Point, 3x3 MIMO, Outdoor, Ext. Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AP8130DN, Huawei AP8130 Series Access Point, 3x3 MIMO, Outdoor, Ext. Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP8130DN.
