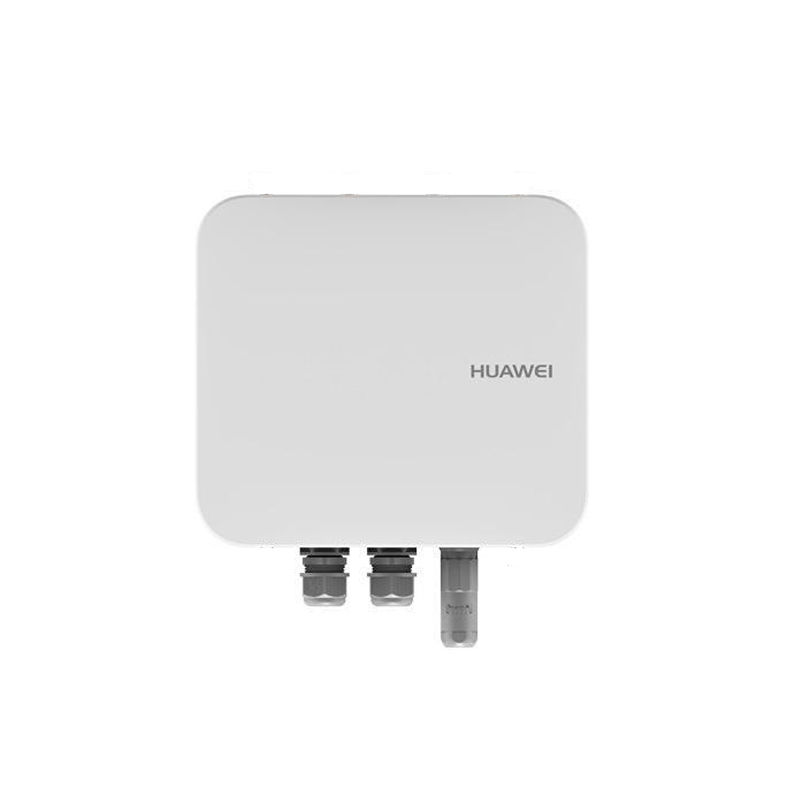

AP8030DN, Huawei AP8030DN Access Point, 3x3 MIMO/Outdoor/Built-in Antenna
Brand: Huawei · SKU: AP8030DN · MPN: AP8030DN · Category: Networking
AP8030DN Mainframe (11ac, General AP Outdoor,3x3 Double Frequency, Built-in Antenna)
Specifications
| Model | AP8030DN |
|---|---|
| Weight | 10.23 kg |
| Altitude | 196.8 ft. to 16,404.1 ft. (-60m to 5,000m) |
| Humidity | 5% to 95% (Non-condensing) |
| Power input | PoE: in compliance with IEEE 802.3at |
| Antenna Gain | ·2.4G: 2.5 dBi ·5G: 4 dBi |
| Antenna Type | Built-in |
| Channel Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n: 6.5 Mbit/s to 450 Mbit/s 802.11ac: 6.5 Mbit/s to 1,300 Mbit/s |
| System memory | 256MB DDR3 64MB flash memory |
| Waterproof grade | IP67 |
| Storage temperature | -40 o F to 158 o F (-40 o C to 70 o C) |
| Receiver Sensitivity | 2.4GHz 802.11b (CCK) -100 dBm @ 1 Mbit/s -90 dBm @ 11 Mbit/s |
| Operating temperature | -40 o F to 14 0 oF (-40 o C to 60 o C) |
| Maximum Number of Users | ≤ 256 Note: The number of concurrent online users on each VAP or radio frequency cannot exceed 128 |
| Dimensions (H × W × D) | 39in. x 10.2in. x 11.4in. (100mm x 260mm x 290mm) |
| Maximum power consumption | 20.1W Note: Maximum power consumption depends on local laws and regulations |
| Maximum Transmit Power for each Radio Frequency | 2.4GHz: 23 dBm 5GHz: 21 dBm Note: The 2.4GHz radio frequency does not support the 40M bandwidth in F.C.C. regions (including America). The actual transmit power depends on local laws and regulations. You can adjust the transmit power to the maximum transmit power of 15 dB in 1 dB steps |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
