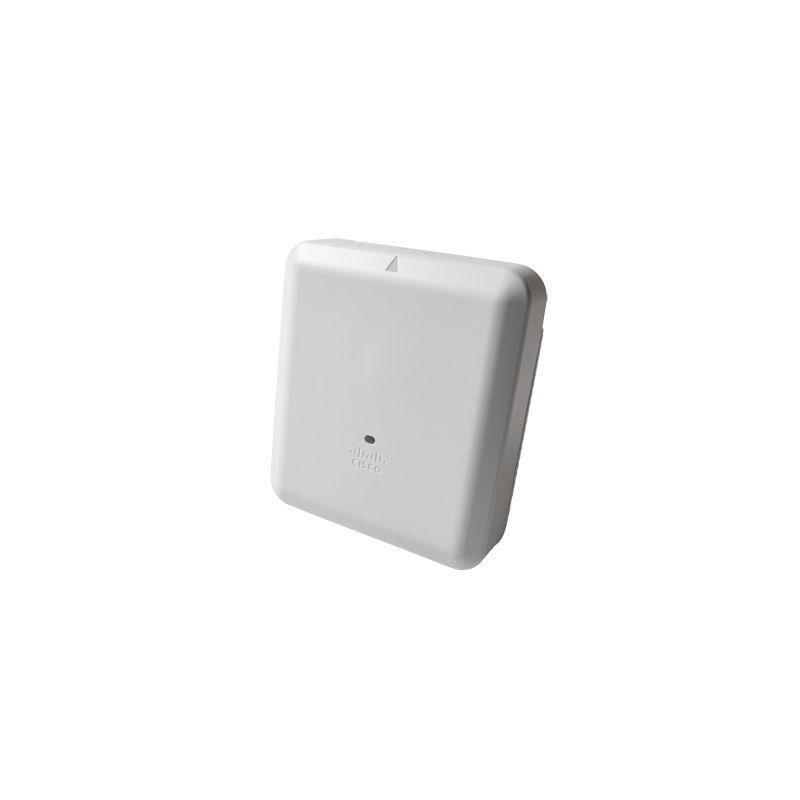

AIR-AP4800-S-K9, Cisco AIR-AP4800 Series Access Point, 802.11ac Wave 2 / CleanAir / ClientLink 4.0
Brand: Cisco · SKU: AIR-AP4800-S-K9 · MPN: AIR-AP4800-S-K9 · Category: Networking
Specifications
| Model | AIR-AP4800-S-K9 |
|---|---|
| Weight | 5.6 lb (2.5 kg) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Interfaces | 2 Ethernet ports, 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz, Category 5e cabling, Higher-quality 10GBASE-T (Category 6/6a) cabling, 100/1000BASE-T autosensing (RJ-45 AUX port), Management console port (RJ-45) |
| Power Draw | 30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support, 31W at the PSE with full functionality |
| Description | 802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -S Domain |
| Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C), Nonoperating (storage) altitude test: 25°C, 15,000 ft, Operating temperature: 32° to 104°F (0° to 40°C), Operating humidity: 10% to 90% percent (noncondensing), Operating altitude test: 40°C, 9843 ft. (non-condensing) |
| System Memory | 1024 MB DRAM, 256 MB flash |
| Integrated Antenna | Flexible radio (either 2.4 GHz or 5 GHz), 2.4 GHz gain 2.5 dBi internal antenna omnidirectional in azimuth, 5 GHz gain 5 dBi internal directional antenna elevation plane beam width 90°, Dedicated 5-GHz radio, 5 GHz gain 3.5 dBi internal antenna omnidirectional in azimuth, Third dedicated radio, 2.4 GHz and 5 GHz capable, Hyperlocation antenna array, BLE radio 2.4 GHz gain 2.5 dBi internal antenna omnidirectional in azimuth |
| Dimensions (W x L x H) | Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in (22 x 25 x 7.35 cm) |
| Input Power Requirements | 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE®), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, and 80-MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, 80, 160-MHz channels, PHY data rates up to 5.2 Gbps, Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| Wi-Fi Alliance Certifications | Wi-Fi Certified a, b, g, n, ac, Wi-Fi Vantage, Wi-Fi Multimedia (WMM), Passpoint |
| 802.11n Version 2.0 Capabilities | 4x4 MIMO with three spatial streams, Maximal Ratio Combining (MRC), 802.11n and 802.11a/g beamforming, 20- and 40-MHz channels, PHY data rates up to 450 Mbps (40 MHz with 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 Dynamic Frequency Selection (DFS), Cyclic Shift Diversity (CSD) support |
| Available Transmit Power Settings | 2.4 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW) |
| Frequency Band and 20-MHz Operating Channels | S (S regulatory domain): 2.412 to 2.472 GHz; 13 channels, 5.180 to 5.320 GHz; 8 channels, 5.500 to 5.700 GHz; 11 channels, 5.745 to 5.825 GHz; 5 channels |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.7 or later, Cisco 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, Virtual Wireless Controller, Cisco 9800 Series Wireless Controllers, Cisco IOS® XE Software Release 16.9, Cisco Catalyst® 3850 Series and 3650 Series Switches |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP4800-S-K9, Cisco AIR-AP4800 Series Access Point, 802.11ac Wave 2 / CleanAir / ClientLink 4.0 (AIR-AP4800-S-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP4800-S-K9, Cisco AIR-AP4800 Series Access Point, 802.11ac Wave 2 / CleanAir / ClientLink 4.0 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP4800-S-K9, Cisco AIR-AP4800 Series Access Point, 802.11ac Wave 2 / CleanAir / ClientLink 4.0 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP4800-S-K9.
