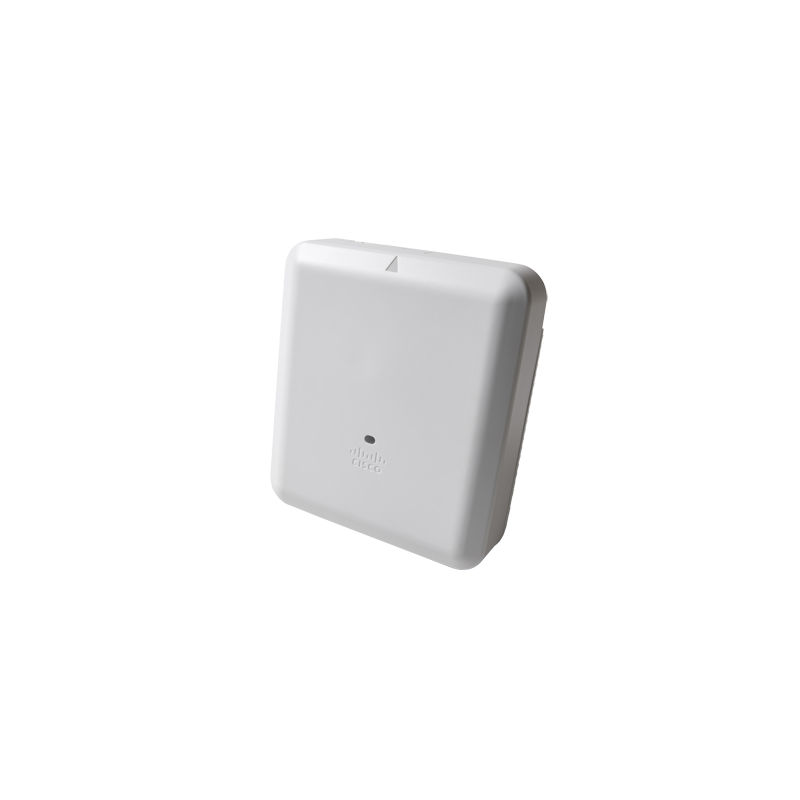

AIR-AP4800-Q-K9C, Cisco AIR-AP4800 Access Point, 4x4:3 MIMO/802.11ac Wave2/mGig

Brand: Cisco · SKU: AIR-AP4800-Q-K9C · MPN: AIR-AP4800-Q-K9C · Category: Networking

AIR-AP4800-Q-K9C, Cisco AIR-AP4800 Access Point, 4x4:3 MIMO/802.11ac Wave2/mGig
Request for Quote
In Stock • 10 units

802.11ac W2 Analytics AP w/CA; 4 3:3; Location; mGig -Q Domain, Configurable

View Wireless APs Products

Specifications

ModelAIR-AP4800-Q-K9C
Weight5.6 lb (2.5 kg)
IndicatorsStatus LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Interfaces2 Ethernet ports: 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz, Category 5e cabling, Higher-quality 10GBASE-T (Category 6/6a) cabling, 100/1000BASE-T autosensing (RJ-45 AUX port), Management console port (RJ-45)
Power Draw30 W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support, 31 W at the PSE with full functionality
Description802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -Q Domain, Configurable
EnvironmentalNonoperating (storage) temperature: -22° to 158°F (-30° to 70°C), Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C), Operating humidity: 10% to 90% percent (noncondensing), Operating altitude test: 40˚C, 9843 ft. (noncondensing)
System Memory1024 MB DRAM, 256 MB flash
Integrated AntennaFlexible radio (either 2.4 GHz or 5 GHz), 2.4 GHz: gain 2.5 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: gain 5 dBi, internal directional antenna, elevation plane beam width 90°. Dedicated 5-GHz radio: gain 3.5 dBi, internal antenna, omnidirectional in azimuth. Third dedicated radio: 2.4 GHz and 5 GHz capable, Hyperlocation antenna array. BLE radio: 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth
Dimensions (W x L x H)Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm)
Input Power Requirements802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE®), 802.3at power injector (AIR-PWRINJ6=), 50 W power supply (AIR-PWR-50=)
802.11ac Wave 1 Capabilities4x4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, and 80-MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support
802.11ac Wave 2 Capabilities4x4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, 80, 160-MHz channels, PHY data rates up to 5.2 Gbps, Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support
Wi-Fi Alliance CertificationsWi-Fi Certified a, b, g, n, ac, Wi-Fi Vantage, Wi-Fi Multimedia (WMM), Passpoint
Available Transmit Power Settings2.4 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW). 5 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW)
Frequency Band and 20-MHz Operating ChannelsQ (Q regulatory domain): 2.412 to 2.472 GHz; 13 channels, 5.180 to 5.320 GHz; 8 channels, 5.500 to 5.700 GHz; 11 channels
802.11n Version 2.0 (and Related) Capabilities4x4 MIMO with three spatial streams, Maximal Ratio Combining (MRC), 802.11n and 802.11a/g beamforming, 20- and 40-MHz channels, PHY data rates up to 450 Mbps (40 MHz with 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 Dynamic Frequency Selection (DFS), Cyclic Shift Diversity (CSD) support
Software and Supported Wireless LAN ControllersCisco Unified Wireless Network Software Release 8.7 or later, Cisco 3500/5520/8540 Series Wireless Controllers, Virtual Wireless Controller, Cisco 9800 Series Wireless Controllers, Cisco IOS® XE Software Release 16.9, Cisco Catalyst® 3850/3650 Series Switches
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP4800-Q-K9C, Cisco AIR-AP4800 Access Point, 4x4:3 MIMO/802.11ac Wave2/mGig (AIR-AP4800-Q-K9C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP4800-Q-K9C, Cisco AIR-AP4800 Access Point, 4x4:3 MIMO/802.11ac Wave2/mGig includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP4800-Q-K9C, Cisco AIR-AP4800 Access Point, 4x4:3 MIMO/802.11ac Wave2/mGig compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP4800-Q-K9C.
