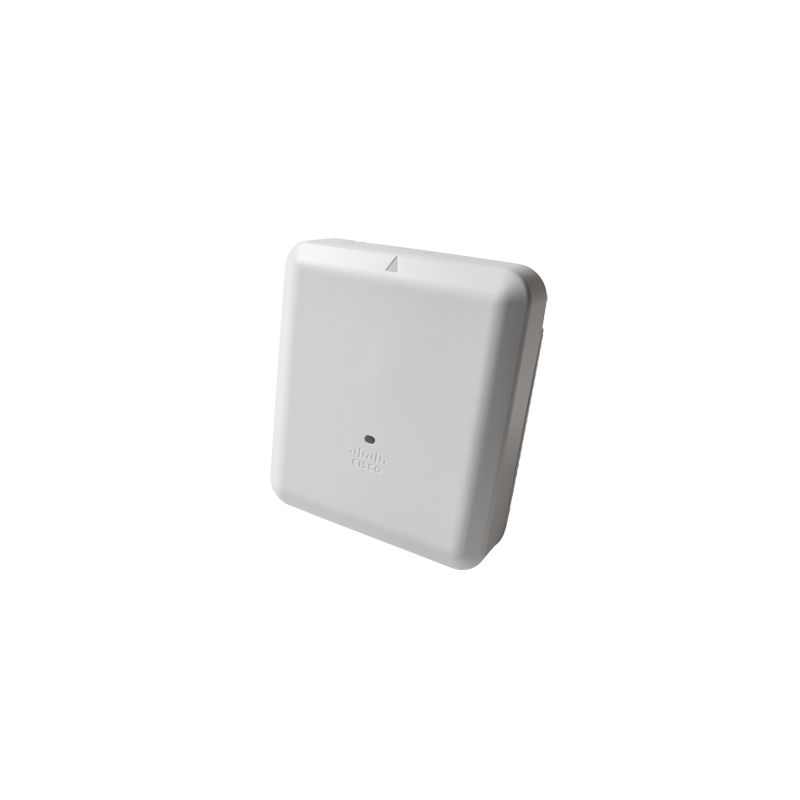

AIR-AP4800-Z-K9, Cisco AIR-AP4800 Series Access Point, 802.11ac Wave 2 / CleanAir / ClientLink 4.0

Brand: Cisco · SKU: AIR-AP4800-Z-K9 · MPN: AIR-AP4800-Z-K9 · Category: Networking

AIR-AP4800-Z-K9, Cisco AIR-AP4800 Series Access Point, 802.11ac Wave 2 / CleanAir / ClientLink 4.0
Request for Quote
In Stock • 10 units

802.11ac W2 Analytics AP w/CA

View Wireless APs Products

Specifications

ModelAIR-AP4800-Z-K9
Weight5.6 lb (2.5 kg)
IndicatorsStatus LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Interfaces2 Ethernet ports, 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) IEEE 802.3bz, Category 5e cabling, Higher-quality 10GBASE-T (Category 6/6a) cabling, 100/1000BASE-T autosensing (RJ-45 AUX port), Management console port (RJ-45)
Power Draw30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support, 31W at the PSE with full functionality
Description802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -Z Domain
EnvironmentalNonoperating (storage) temperature: -22° to 158°F (-30° to 70°C), Nonoperating (storage) altitude test: 25˚C, 15,000 ft, Operating temperature: 32° to 104°F (0° to 40°C), Operating humidity: 10% to 90% percent (noncondensing), Operating altitude test: 40˚C, 9843 ft. (noncondensing)
System Memory1024 MB DRAM, 256 MB flash
Integrated AntennaFlexible radio (either 2.4 GHz or 5 GHz), 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth, 5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90°, Dedicated 5-GHz radio, 5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth, Third dedicated radio, 2.4 GHz and 5 GHz capable, Hyperlocation antenna array, BLE radio, 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth
Dimensions (W x L x H)Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm)
Input Power Requirements802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE®), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=)
802.11ac Wave 1 Capabilities4x4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, and 80-MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support
802.11ac Wave 2 Capabilities4x4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, 80, 160-MHz channels, PHY data rates up to 5.2 Gbps, Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support
Wi-Fi Alliance CertificationsWi-Fi Certified a, b, g, n, ac, Wi-Fi Vantage, Wi-Fi Multimedia (WMM), Passpoint
802.11n Version 2.0 Capabilities4x4 MIMO with three spatial streams, Maximal Ratio Combining (MRC), 802.11n and 802.11a/g beamforming, 20- and 40-MHz channels, PHY data rates up to 450 Mbps (40 MHz with 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 Dynamic Frequency Selection (DFS), Cyclic Shift Diversity (CSD) support
Available Transmit Power Settings2.4 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW); 5 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW)
Frequency Band and 20-MHz Operating ChannelsZ (Z regulatory domain): 2.412 to 2.462 GHz; 11 channels, 5.180 to 5.320 GHz; 8 channels, 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz), 5.745 to 5.825 GHz; 5 channels
Software and Supported Wireless LAN ControllersCisco Unified Wireless Network Software Release 8.7 or later, Cisco 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller, Cisco 9800 series Wireless Controllers, Cisco IOS® XE Software Release 16.9, Cisco Catalyst® 3850 Series and 3650 Series Switches
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP4800-Z-K9, Cisco AIR-AP4800 Series Access Point, 802.11ac Wave 2 / CleanAir / ClientLink 4.0 (AIR-AP4800-Z-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP4800-Z-K9, Cisco AIR-AP4800 Series Access Point, 802.11ac Wave 2 / CleanAir / ClientLink 4.0 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP4800-Z-K9, Cisco AIR-AP4800 Series Access Point, 802.11ac Wave 2 / CleanAir / ClientLink 4.0 compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP4800-Z-K9.
