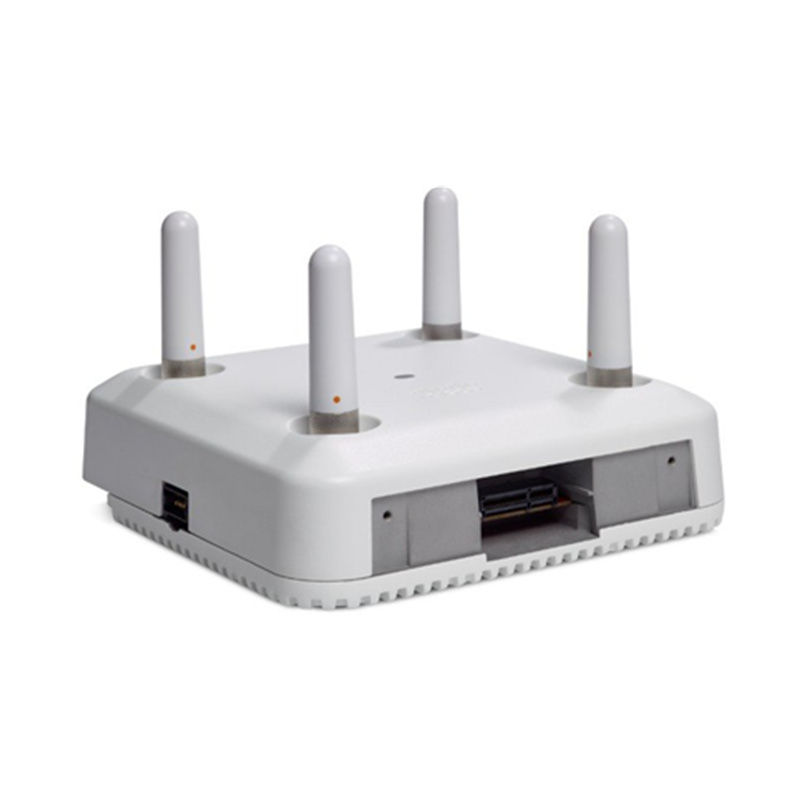

AIR-AP3802E-HK910, Cisco AIR-AP3800 Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/External Antenna
Brand: Cisco · SKU: AIR-AP3802E-HK910 · MPN: AIR-AP3802E-HK910 · Category: Networking
802.11ac Wave 2 10 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, H Regulatory Domain
Specifications
| Model | AIR-AP3802E-HK910 |
|---|---|
| Indicators | Status LED indicates boot loader status, association, operation, warnings, and errors |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz); CAT 5e cabling; 10GBASE-T (CAT 6/6a) cabling; 100/1000BASE-T autosensing (RJ-45 AUX port); Management console port (RJ-45) |
| Power Draw | 30W at PSE with all features enabled except USB 2.0 port; 34W at PSE with USB 2.0 port enabled |
| System Memory | 1024 MB DRAM; 256 MB flash |
| Integrated Antenna | Flexible radio: 2.4 GHz, 4 dBi, internal, omnidirectional; 5 GHz, 6 dBi, internal, directional, elevation beamwidth 90°; Dedicated 5 GHz radio: 5 GHz, 5 dBi, internal, omnidirectional |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) (excluding mounting brackets) |
| Smart Antenna Connector | Available on 3802e and 3802p Series; Requires AIR-CAB002-DART-R= 2 ft connector to RP-TNC; Needed when flexible radio is used as second 5 GHz serving or Wireless Security Monitoring radio |
| Input Power Requirements | 802.3at PoE+; Cisco Universal Power over Ethernet (UPOE®); 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with three spatial streams; MRC; 802.11ac beamforming; 20, 40, and 80 MHz channels; PHY rates up to 1.3 Gbps (80 MHz in 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with three spatial streams; MRC; 802.11ac beamforming; 20, 40, 80, 160 MHz channels; PHY rates up to 5.2 Gbps; Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| 802.11n Version 2.0 Capabilities | 4x4 MIMO with three spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g beamforming; 20 and 40 MHz channels; PHY rates up to 450 Mbps (40 MHz with 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 Dynamic Frequency Selection (DFS); Cyclic Shift Diversity (CSD) support |
| External Antenna (Sold Separately) | 3802e Series: up to 6 dBi (2.4 GHz and 5 GHz); 3802p Series: up to 13 dBi (2.4 GHz and 5 GHz) with AIR-ANT2513-P4M-N= antenna; Wide Cisco antenna selection for optimal coverage in varied deployments |
| Environmental (Operating & Storage Conditions) | 3800i: Storage temperature -30°C to 70°C; Operating temperature 0°C to 40°C; Operating humidity 10% to 90% (noncondensing); Storage altitude: 25°C, 15,000 ft; Operating altitude: 40°C, 9,843 ft. 3800e/3800p: Storage temperature -30°C to 70°C; Operating temperature -20°C to 50°C; Operating humidity 10% to 90% (noncondensing); Storage altitude: 25°C, 15,000 ft; Operating altitude: 40°C, 9,843 ft. |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches; Cisco 5500 Series Wireless Controllers; Cisco Flex® 7500 Series Wireless Controllers; Cisco 8500 Series Wireless Controllers; Cisco Virtual Wireless Controller; Cisco IOS® XE Software Release 16.3 or later; Cisco Catalyst 3850 and 3650 Series Switches |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP3802E-HK910, Cisco AIR-AP3800 Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/External Antenna (AIR-AP3802E-HK910) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP3802E-HK910, Cisco AIR-AP3800 Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/External Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP3802E-HK910, Cisco AIR-AP3800 Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/External Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802E-HK910.
