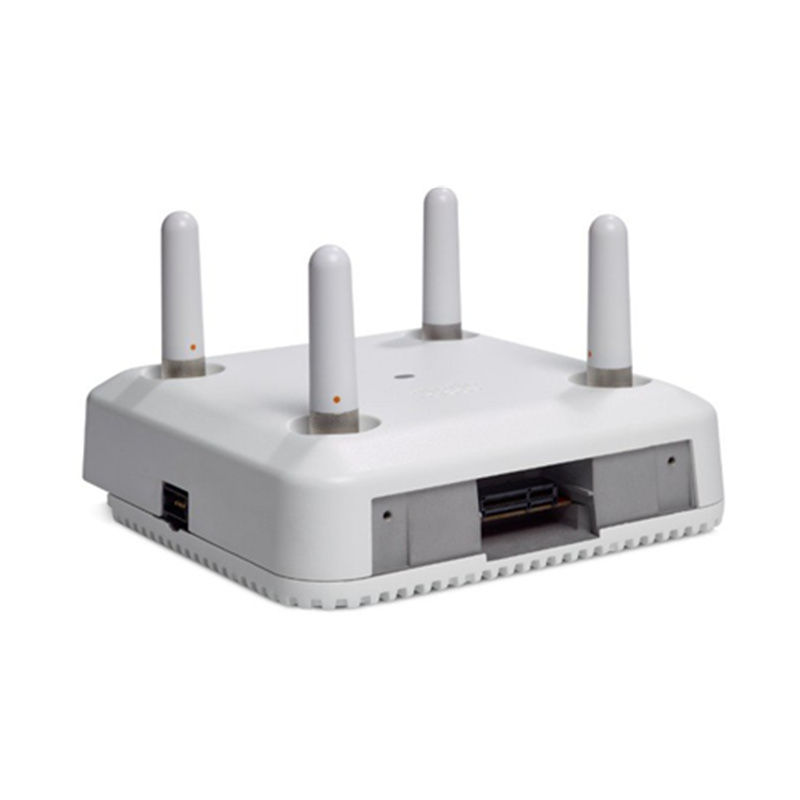

AIR-AP3802E-H-K9, Cisco AIR AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/External Antenna

Brand: Cisco · SKU: AIR-AP3802E-H-K9 · MPN: AIR-AP3802E-H-K9 · Category: Networking

AIR-AP3802E-H-K9, Cisco AIR AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/External Antenna
$1,189.56
In Stock • 10 units

802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, H Regulatory Domain

View Wireless APs Products

Specifications

ModelAIR-AP3802E-H-K9
IndicatorsStatus LED for boot loader status, association status, operating status, boot loader warnings, and errors
Interfaces2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz; CAT 5e cabling; 10GBASE-T (CAT 6/6a) cabling; 100/1000BASE-T autosensing (RJ-45 - AUX port); Management console port (RJ-45)
Power Draw30W at the PSE with all features enabled except USB 2.0 port; 34W at the PSE with USB 2.0 port enabled
System Memory1024 MB DRAM; 256 MB flash
Integrated AntennaFlexible radio (2.4 GHz or 5 GHz): 2.4 GHz, 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz, 6 dBi, internal directional antenna, elevation beamwidth 90° Dedicated 5 GHz radio: 5 GHz, 5 dBi, internal antenna, omnidirectional in azimuth
Environmental (3800e)Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temperature: -20°C to 50°C (-4°F to 122°F); Operating humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9,843 ft
Environmental (3800i)Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temperature: 0°C to 40°C (32°F to 104°F); Operating humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9,843 ft
Environmental (3800p)Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temperature: -20°C to 50°C (-4°F to 122°F); Operating humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9,843 ft
Dimensions (W x L x H)3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm); 3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm)
Smart Antenna ConnectorAvailable on 3802e and 3802p Series access points; Requires AIR-CAB002-DART-R= (2 ft smart antenna cable) to connect second antenna to access point; Required when running flexible radio as second 5-GHz serving radio or Wireless Security Monitoring radio
Input Power Requirements802.3at PoE+, Cisco Universal Power over Ethernet (UPOE®); 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=)
802.11ac Wave 1 Capabilities4x4 MIMO with 3 spatial streams; MRC; 802.11ac beamforming; 20-, 40-, and 80-MHz channels; PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support
802.11ac Wave 2 Capabilities4x4 MU-MIMO with 3 spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, 160-MHz channels; PHY data rates up to 5.2 Gbps; Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support
802.11n Version 2.0 Capabilities4x4 MIMO with 3 spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 450 Mbps (40 MHz with 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; Cyclic Shift Diversity (CSD) support
External Antenna (Sold Separately)3802e Series access points certified for antenna gains up to 6 dBi (2.4 GHz and 5 GHz); 3802p Series certified for gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna; Wide selection of Cisco antennas for varied deployment scenarios
Software and Supported Wireless LAN ControllersCisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, 5500 Series Wireless Controllers, Flex® 7500 Series Wireless Controllers, 8500 Series Wireless Controllers, Virtual Wireless Controller; Cisco IOS® XE Software Release 16.3 – Target Q3 CY2016; Catalyst 3850 Series and 3650 Series Switches
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP3802E-H-K9, Cisco AIR AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/External Antenna (AIR-AP3802E-H-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP3802E-H-K9, Cisco AIR AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/External Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP3802E-H-K9, Cisco AIR AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/External Antenna compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802E-H-K9.
