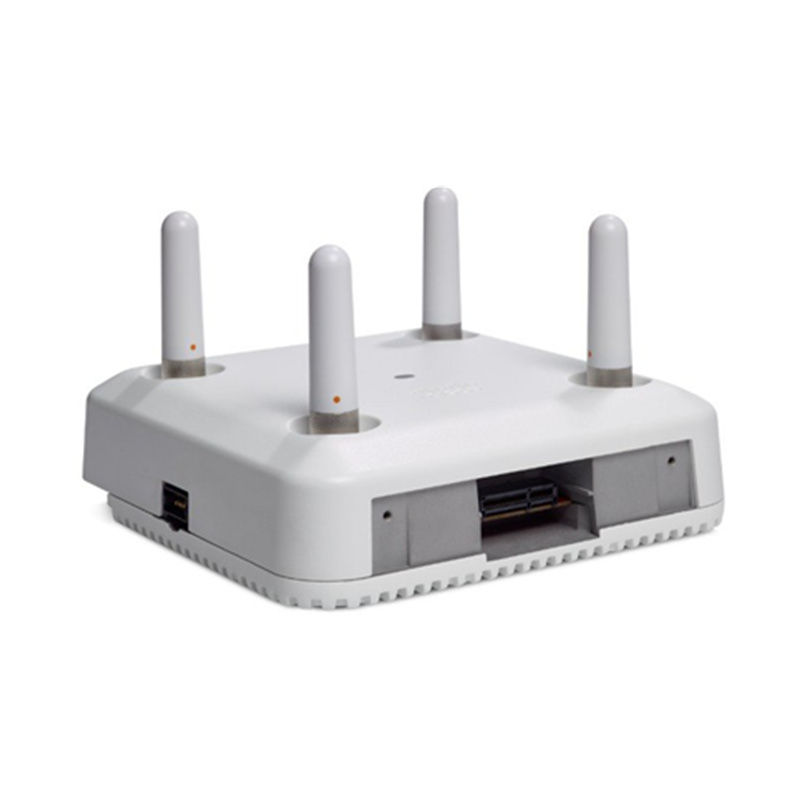

AIR-AP3802E-H-K9C, Cisco AIR Series Access Point, 4x4:3 MU-MIMO/mGig/External Antenna
Brand: Cisco · SKU: AIR-AP3802E-H-K9C · MPN: AIR-AP3802E-H-K9C · Category: Networking
802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, H Regulatory Domain, Configurable
Specifications
| Model | AIR-AP3802E-H-K9C |
|---|---|
| Indicators | Status LED shows boot loader status, association, operation, warnings, and errors. |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45), IEEE 802.3bz; CAT 5e and 10GBASE-T (CAT 6/6a) support; 100/1000BASE-T autosensing (AUX port, RJ-45); Console port (RJ-45). |
| Power Draw | 30W at PSE (all features except USB 2.0); 34W at PSE (USB 2.0 enabled). |
| Environmental | Cisco Aironet 3800i: Storage -30°C to 70°C, Operation 0°C to 40°C, Humidity 10%-90% (non-condensing), Altitude up to 9843 ft (40°C). Cisco Aironet 3800e/p: Storage -30°C to 70°C, Operation -20°C to 50°C, Humidity 10%-90% (non-condensing), Altitude up to 9843 ft (40°C). |
| System Memory | 1024 MB DRAM, 256 MB flash |
| Integrated Antenna | Flexible radio (2.4 GHz: 4 dBi gain, omnidirectional in azimuth; 5 GHz: 6 dBi gain, directional, 90° elevation beamwidth). Dedicated 5 GHz radio: 5 dBi gain, omnidirectional in azimuth. |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm). |
| Smart Antenna Connector | Available on 3802e and 3802p models. Requires AIR-CAB002-DART-R= 2 ft connector to RP-TNC for a second antenna. Needed when flexible radio acts as a second 5 GHz serving radio or wireless security monitoring radio. |
| Input Power Requirements | 802.3at PoE+, Cisco Universal Power over Ethernet (UPOE); 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=). |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO, three spatial streams; MRC; 802.11ac beamforming; 20/40/80 MHz channels; PHY data rates up to 1.3 Gbps (80 MHz, 5 GHz); A-MPDU and A-MSDU (Tx/Rx); DFS; CSD support. |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO, three spatial streams; MRC; 802.11ac beamforming; 20/40/80/160 MHz channels; PHY data rates up to 5.2 Gbps; A-MPDU and A-MSDU (Tx/Rx); DFS; CSD support. |
| 802.11n Version 2.0 Capabilities | 4x4 MIMO, three spatial streams; MRC; 802.11n/a/g beamforming; 20/40 MHz channels; PHY data rates up to 450 Mbps (40 MHz, 5 GHz); A-MPDU and A-MSDU (Tx/Rx); DFS; CSD support. |
| External Antenna (Sold Separately) | 3802e: Supports antennas up to 6 dBi (2.4 GHz/5 GHz). 3802p: Supports up to 13 dBi (with AIR-ANT2513-P4M-N=). Cisco offers a wide range of antennas for optimized coverage. |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later. Supported controllers: Cisco 2500 Series, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, 5500 Series, Flex 7500 Series, 8500 Series, Virtual Wireless Controller. Supported switches: Cisco Catalyst 3850 Series and 3650 Series. Cisco IOS XE Software Release 16.3 or later (Target Q3 CY2016). |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP3802E-H-K9C, Cisco AIR Series Access Point, 4x4:3 MU-MIMO/mGig/External Antenna (AIR-AP3802E-H-K9C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP3802E-H-K9C, Cisco AIR Series Access Point, 4x4:3 MU-MIMO/mGig/External Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP3802E-H-K9C, Cisco AIR Series Access Point, 4x4:3 MU-MIMO/mGig/External Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802E-H-K9C.
