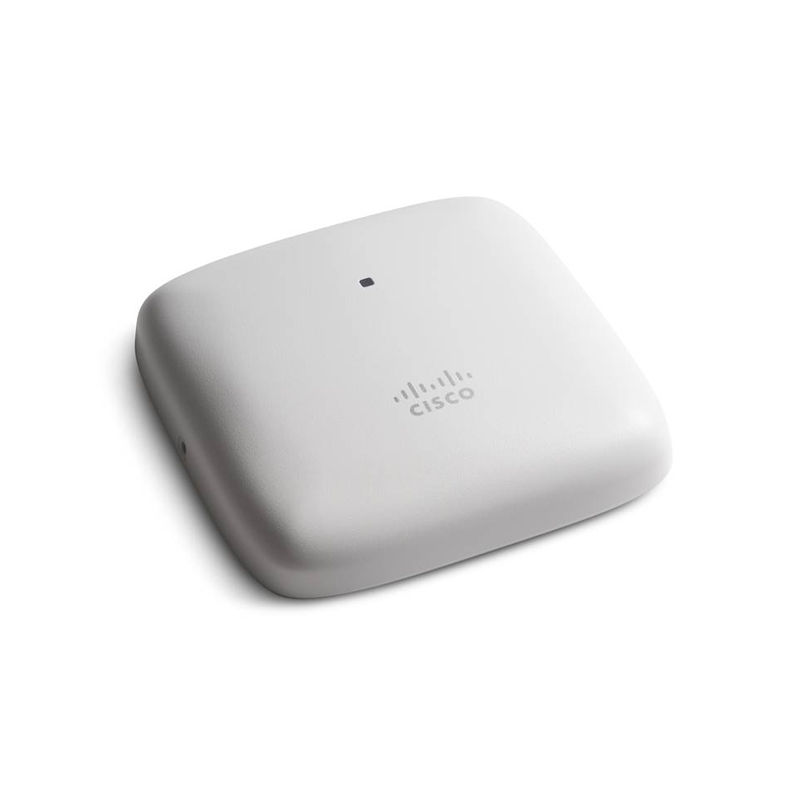

AIR-AP1840I-H-K9, Cisco Aironet AP1840I Series Access Point, 802.11ac Wave2, 4x4 MIMO, Internal Antenna
Brand: Cisco · SKU: AIR-AP1840I-H-K9 · MPN: AIR-AP1840I-H-K9 · Category: Networking
Cisco Aironet AP1840I Series access point - H domain
Specifications
| Model | AIR-AP1840I-H-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software Release 8.8 MR2 or later Cisco IOS® XE Software Release 16.12 or later |
| Indicators | Status LED shows boot loader, association, operating status, warnings, and errors |
| Interfaces | 2 x 10/100/1000BASE-T autosensing (RJ-45), PoE Management console port (RJ-45) USB 2.0 (enabled via future software) |
| Power Draw | 13.2W at PSE (12.1W at PD), all features except USB 17.8W at PSE (16.0W at PD), USB enabled |
| Description | Cisco Aironet AP1840I Series access point – H domain |
| Environmental | Non-operating temperature: -30°C to 70°C (-22°F to 158°F) Non-operating altitude: 25°C, 15,000 ft Operating temperature: 0°C to 50°C (32°F to 122°F) Operating humidity: 10% to 90% (non-condensing) Operating altitude: 40°C, 9,843 ft Note: Above 40°C, radio transmit duty cycle ≤ 50% |
| System Memory | 1 GB DRAM 256 MB flash |
| 802.11ac Features | 4x4 downlink MU-MIMO, 4 spatial streams MRC 802.11ac beamforming 20/40/80 MHz channels PHY data rates up to 1733 Mbps (80 MHz at 5 GHz) A-MPDU & A-MSDU aggregation (Tx/Rx) 802.11 DFS CSD support |
| Integrated Antenna | 2.4 GHz: peak gain 4 dBi, internal, omnidirectional (azimuth) 5 GHz: peak gain 5 dBi, internal, omnidirectional (azimuth) |
| Dimensions (W x L x H) | 7 x 7 x 1.5 in (without mounting brackets) |
| Input Power Requirements | 802.3at PoE+, Cisco Universal PoE (Cisco UPOE®) Cisco power injector AIR-PWRINJ6= 802.3af PoE Cisco power injector AIR-PWRINJ5= (802.3af only) Note: USB port is off with 802.3af PoE as power source |
| 802.11n (2.0) Capabilities | 5 GHz, 4x4 MIMO, 4 spatial streams 2.4 GHz, 2x2 MIMO, 2 spatial streams Maximal Ratio Combining (MRC) 802.11n/802.11a/g beamforming 20/40 MHz channels PHY data rates up to 744 Mbps (40 MHz at 5 GHz; 20 MHz at 2.4 GHz) A-MPDU & A-MSDU aggregation (Tx/Rx) 802.11 DFS Cyclic Shift Diversity (CSD) |
| Available Transmit Power Settings | 2.4 GHz: 20/17/14/11/8/5/2/–1 dBm (100/50/25/12.5/6.25/3.13/1.56/0.79 mW) 5 GHz: 23/20/17/14/11/8/5/2 dBm (200/100/50/25/12.5/6.25/3.13/1.56 mW) |
| Frequency Band and 20-MHz Channels | H (regulatory domain): 2.412–2.472 GHz, 13 channels 5.180–5.320 GHz, 8 channels 5.745–5.825 GHz, 5 channels |
| Supported Wireless LAN Controllers | Cisco Catalyst 9800 Wireless Controllers Cisco 3500, 5520, and 8540 Series Wireless Controllers Cisco Virtual Wireless Controller Cisco Mobility Express |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1840I-H-K9, Cisco Aironet AP1840I Series Access Point, 802.11ac Wave2, 4x4 MIMO, Internal Antenna (AIR-AP1840I-H-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1840I-H-K9, Cisco Aironet AP1840I Series Access Point, 802.11ac Wave2, 4x4 MIMO, Internal Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1840I-H-K9, Cisco Aironet AP1840I Series Access Point, 802.11ac Wave2, 4x4 MIMO, Internal Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1840I-H-K9.
