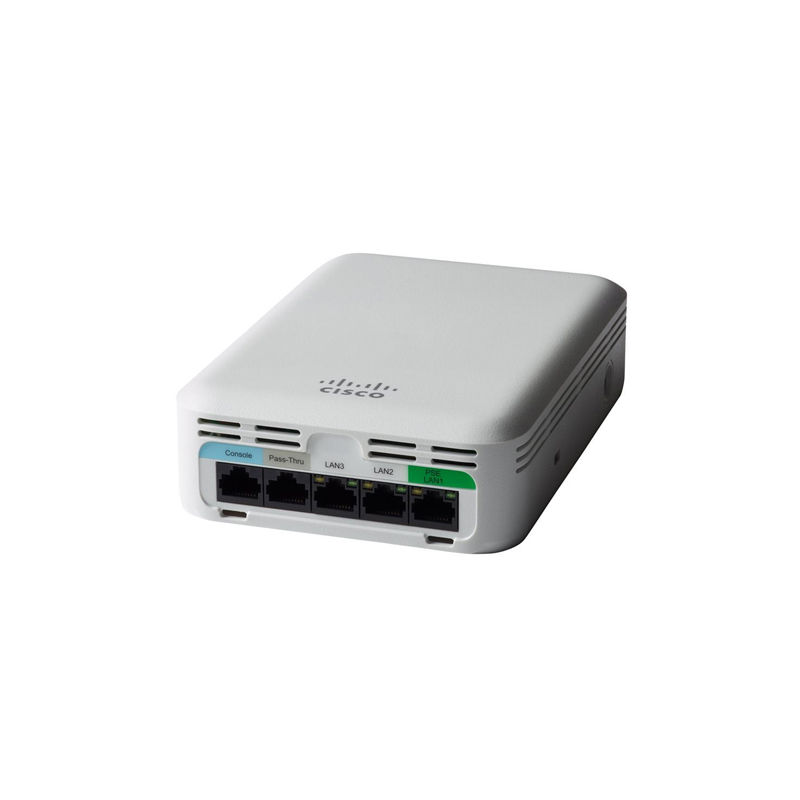

AIR-AP1815W-K-K9, Cisco Aironet 1815w Access Point, 802.11ac Wave2, 867 Mbps, 2x2 MIMO

Brand: Cisco · SKU: AIR-AP1815W-K-K9 · MPN: AIR-AP1815W-K-K9 · Category: Networking

AIR-AP1815W-K-K9, Cisco Aironet 1815w Access Point, 802.11ac Wave2, 867 Mbps, 2x2 MIMO
Request for Quote
In Stock • 10 units

Cisco Aironet 1815w Series, Reg Domain K

View Wireless APs Products

Specifications

ModelAIR-AP1815W-K-K9
System1 GB DRAM, 256 MB flash, 710 MHz quad-core processor
MountingMounting bracket AIR-AP-BRACKET-W3 included
SoftwareCisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4 or later, Cisco Mobility Express
BluetoothIntegrated Bluetooth 4.1 (BLE), maximum transmit power 4 dBm, antenna gain 2 dBi
ComplianceUL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1, FCC Part 15.247/15.407/15.107/15.109, RSS-247/ICES-003 (Canada), EN 300.328/EN 301.893/EN 301.489-1/-17/EN 50385 (Europe), ARIB-STD 66/T71, VCCI (Japan), IEEE 802.11 a/b/g/n/h/d/ac, 802.11i, WPA2, WPA, 802.1X, AES, EAP-TLS/TTLS/PEAP/FAST/GTC/SIM, Wi-Fi Multimedia (WMM), FCC Bulletin OET-65C, RSS-102
IndicatorsStatus LED for boot loader, association, operation, warnings, and errors
Interfaces1 x 10/100/1000BASE-T (RJ-45, PoE), management console (4-pin), 3 x 10/100/1000BASE-T (local Ethernet, 1 PoE out), 1 passive pass-through port RJ-45
Power Draw8.5 W (maximum, without PoE out)
AccessoriesSpare mounting bracket (AIR-AP-BRACKET-W3=), spacer kit (AIR-AP1815W-KIT=, sold separately), physical security kit (AIR-SEC-50=, sold separately)
Ethernet PortsSupports 802.1X or MAC filtering, Dynamic VLAN or per port, Traffic local switched or tunneled to wireless LAN controller
Maximum Clients200 clients per Wi-Fi radio, 400 clients per access point
Additional NotesChannel and power settings vary by regulatory domain. See product documentation for details.
Powering Options802.3af/at Ethernet switch, optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
802.11ac Features2x2 SU/MU-MIMO with two spatial streams, MRC, 20/40/80-MHz channels, PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz), Packet aggregation (A-MPDU Tx/Rx, A-MSDU Rx), DFS, CSD support
Physical SecurityTorx security screw (included), Kensington lock slot for device mounting
Integrated Antennas2.4 GHz, gain 2 dBi; 5 GHz, gain 3 dBi
Data Rates Supported802.11a: 6–54 Mbps; 802.11b/g: 1–54 Mbps; 802.11n (2.4 GHz): up to 144.4 Mbps; 802.11ac (5 GHz): up to 866.7 Mbps (80 MHz, 2 streams)
Dimensions (W x L x H)3.5 x 5.5 x 1.25 in (89 x 140 x 31.5 mm)
Transmit Power Settings2.4 GHz/5 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (max power setting varies by country and channel)
Environmental (Operating)Temperature: 0–40°C (32–104°F), Humidity: 10%–90% (non-condensing), Max altitude: 3,000 m (9,843 ft) @ 40°C
Supported WLAN ControllersCisco 2500, 3500, 5500, Flex 7500, 8500, 9800 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Mobility Express
Authentication and SecurityAdvanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication, authorization and accounting (AAA), 802.11r, 802.11i
Channels (Regulatory Domains)2.4 GHz: 11–13 channels; 5 GHz: 3–12 channels, varies by domain (see documentation for specific details)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP1815W-K-K9, Cisco Aironet 1815w Access Point, 802.11ac Wave2, 867 Mbps, 2x2 MIMO (AIR-AP1815W-K-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP1815W-K-K9, Cisco Aironet 1815w Access Point, 802.11ac Wave2, 867 Mbps, 2x2 MIMO includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP1815W-K-K9, Cisco Aironet 1815w Access Point, 802.11ac Wave2, 867 Mbps, 2x2 MIMO compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815W-K-K9.
