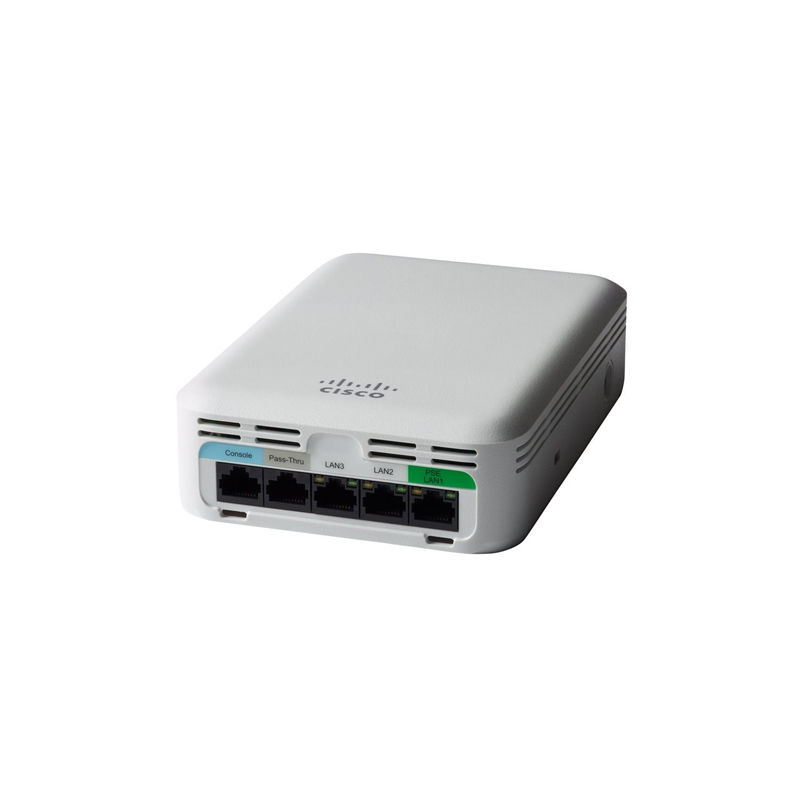

AIR-AP1815W-I-K9, Cisco Aironet 1815w Series Access Point, 867Mbps/2x2 MIMO/Wall Plate
Brand: Cisco · SKU: AIR-AP1815W-I-K9 · MPN: AIR-AP1815W-I-K9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco Aironet 1815w Series, Reg Domain I
Specifications
| Model | AIR-AP1815W-I-K9 |
|---|---|
| Mounting | Includes mounting bracket AIR-AP-BRACKET-W3 |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4 or later, Cisco Mobility Express |
| Bluetooth | Integrated Bluetooth 4.1 (BLE), Max transmit power: 4 dBm, Antenna gain: 2 dBi |
| Compliance | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1. Radios: FCC Part 15.247, 15.407, RSS-247, EN 300.328, EN 301.893, ARIB-STD 66/71, VCCI, EN 301.489-1/-17, EN 50385. IEEE 802.11a/b/g/n/ac/h/d. Security: 802.11i, WPA2, WPA, 802.1X, AES; EAP-TLS, EAP-TTLS (MSCHAPv2), PEAP v0/v1, EAP-FAST, EAP-GTC, EAP-SIM. Multimedia: WMM. Other: FCC OET-65C, RSS-102 |
| Indicators | Status LED: boot loader status, association, operating status, warnings, errors |
| Interfaces | 1 x 10/100/1000BASE-T (RJ-45) with PoE in, 3 x 10/100/1000BASE-T local ports (1 PoE out when powered by 802.3at), management console (4-pin), 1 passive pass-through RJ-45 |
| Power Draw | 8.5 W maximum (without PoE out) |
| Accessories | Mounting bracket AIR-AP-BRACKET-W3= (spare), Spacer kit AIR-AP1815W-KIT= (sold separately), Physical security kit AIR-SEC-50= (sold separately, includes screws, RJ-45 caps, unlock keys) |
| Environmental | Operating: 0°C to 40°C (32°F to 104°F), 10%–90% humidity non-condensing, max altitude 3,000 m at 40°C; Storage: -30°C to 70°C (-22°F to 158°F), 10%–90% humidity non-condensing, max altitude 4,500 m at 25°C |
| Ethernet Ports | 802.1X or MAC authentication, dynamic VLAN or per port, traffic locally switched or tunneled back to controller |
| Maximum Clients | 200 per Wi-Fi radio, total 400 clients per access point |
| System Hardware | 1 GB DRAM, 256 MB flash, 710 MHz quad-core CPU |
| Powering Options | 802.3af/at Ethernet switch, Optional Cisco power injector (AIR-PWRINJ5=, AIR-PWRINJ6=) |
| 802.11ac Features | 2x2 single-user/multiuser MIMO, two spatial streams, maximal ratio combining (MRC), 20/40/80 MHz channels, PHY rates up to 866.7 Mbps (80 MHz, 5 GHz), packet aggregation (A-MPDU, A-MSDU), 802.11 DFS, cyclic shift diversity (CSD) |
| Physical Security | Torx security screw included, Kensington lock slot for mounting bracket |
| Integrated Antennas | 2.4 GHz: 2 dBi; 5 GHz: 3 dBi |
| Dimensions (W x L x H) | 3.5 x 5.5 x 1.25 in (89 x 140 x 31.5 mm), without bracket |
| Transmit Power Settings | 2.4 GHz/5 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW); Max power may vary per channel and country |
| Supported WLAN Controllers | Cisco 2500, 3500, 5500, Flex 7500, 8500, 9800 Series Wireless Controllers, Wireless Controller Module for ISR G2, WiSM2 for Catalyst 6500 Series, Cisco Mobility Express |
| 802.11ac Data Rates (5 GHz) | Up to 866.7 Mbps (2 spatial streams, GI 400 ns, 80 MHz) |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication, authorization and accounting (AAA), 802.11r, 802.11i |
| 802.11n Data Rates (2.4 GHz) | MCS 0–15, up to 144.4 Mbps (GI 400 ns), up to 130 Mbps (GI 800 ns) |
| Data Rates Supported (802.11a/b/g) | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815W-I-K9, Cisco Aironet 1815w Series Access Point, 867Mbps/2x2 MIMO/Wall Plate (AIR-AP1815W-I-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815W-I-K9, Cisco Aironet 1815w Series Access Point, 867Mbps/2x2 MIMO/Wall Plate includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815W-I-K9, Cisco Aironet 1815w Series Access Point, 867Mbps/2x2 MIMO/Wall Plate compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815W-I-K9.
