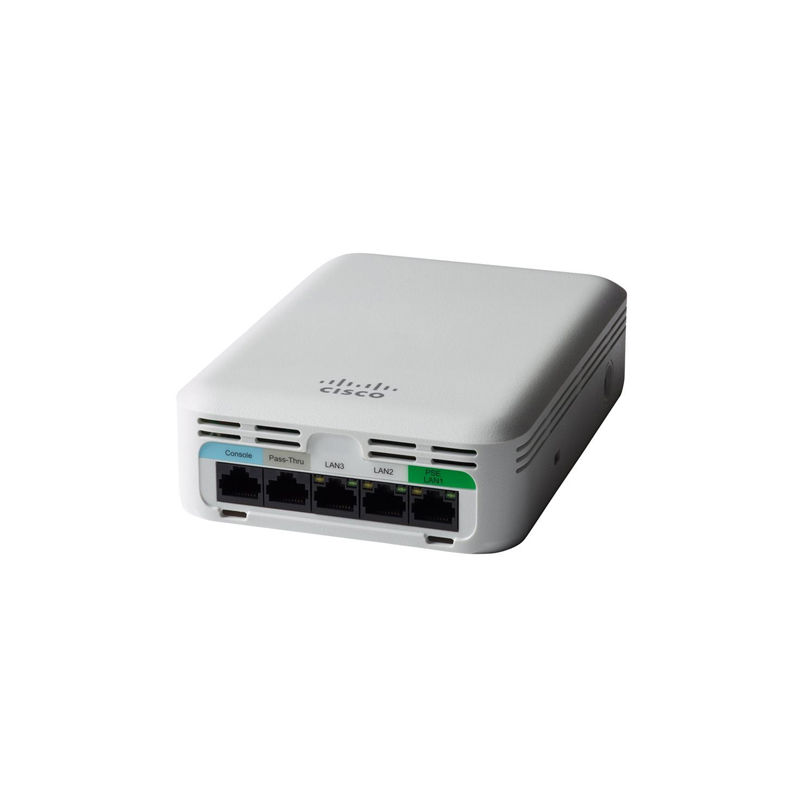

AIR-AP1815W-H-K9, Cisco Aironet 1815w Series Access Point, 802.11ac Wave 2 / 2x2 MIMO / Wall Plate Mount
Brand: Cisco · SKU: AIR-AP1815W-H-K9 · MPN: AIR-AP1815W-H-K9 · Category: Networking
Cisco Aironet 1815w Series, Reg Domain H
Specifications
| Model | AIR-AP1815W-H-K9 |
|---|---|
| Channels | Regulatory domain dependent; 2.412–2.472 GHz, 5.180–5.865 GHz, supports up to 13 channels (2.4 GHz) and varying numbers of 5 GHz channels depending on domain. See product documentation for details. |
| Mounting | Mounting bracket AIR-AP-BRACKET-W3 included |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4 or later, Cisco Mobility Express |
| Bluetooth | Integrated Bluetooth 4.1 (BLE), max transmit power: 4 dBm, antenna gain: 2 dBi |
| Compliance | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1; Radio: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66/71 (Japan), VCCI (Japan), EN 301.489-1/-17; IEEE: 802.11a/b/g/n/h/d/ac; Security: 802.11i, WPA2, WPA, 802.1X, AES; EAP: TLS, TTLS, MSCHAPv2, PEAP v0/v1, EAP-FAST, EAP-SIM; Multimedia: WMM; Others: FCC OET-65C, RSS-102 |
| Indicators | Status LED: boot loader, association, operation, warnings and errors |
| Interfaces | 1 x 10/100/1000BASE-T autosensing (RJ-45, PoE in), management console (4-pin), 3 x 10/100/1000BASE-T ports (local, 1 PoE out if powered by 802.3at), 1 passive RJ-45 pass-through |
| Power Draw | 8.5 W (maximum, without PoE out) |
| Accessories | Spare mounting bracket: AIR-AP-BRACKET-W3=; Spacer kit: AIR-AP1815W-KIT= (includes spacer, RJ-45 jumper); Physical security kit: AIR-SEC-50= |
| Environmental | Operating: 0°C to 40°C (32°F to 104°F), 10% to 90% humidity (non-condensing), max altitude 3,000 m @ 40°C; Storage: -30°C to 70°C (-22°F to 158°F), max altitude 4,500 m @ 25°C |
| Ethernet Ports | Authentication with 802.1X or MAC filter, dynamic VLAN/per port, local switching or traffic tunneling to WLC |
| Maximum Clients | 200 per Wi-Fi radio, up to 400 per access point |
| Powering Options | 802.3af/at Ethernet switch, optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=) |
| 802.11ac Features | 2x2 single/multi-user MIMO, 2 spatial streams, MRC, 20/40/80-MHz channels, up to 866.7 Mbps (80 MHz, 5 GHz), A-MPDU (Tx/Rx), A-MSDU (Rx), DFS, CSD support |
| Physical Security | Torx security screw (included), Kensington lock slot for mounting bracket |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 3 dBi gain |
| Data Rates Supported | 802.11a: 6–54 Mbps; 802.11b/g: 1–54 Mbps; 802.11n (2.4 GHz): MCS 0–15 (up to 144.4 Mbps); 802.11ac (5 GHz): MCS 0–9, up to 866.7 Mbps |
| Dimensions (W x L x H) | 3.5 x 5.5 x 1.25 in (89 x 140 x 31.5 mm) |
| Transmit Power Settings | 2.4 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm; 5 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm; maximum varies by channel/country |
| System Memory / Processor | 1 GB DRAM, 256 MB flash, 710 MHz quad-core |
| Supported WLAN Controllers | Cisco 2500, 3500, 5500, Flex 7500, 8500, 9800 Series Controllers; Wireless Controller Module for ISR G2; Wireless Services Module 2 (WiSM2) for Catalyst 6500; Cisco Mobility Express |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication, authorization and accounting (AAA), 802.11r, 802.11i |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815W-H-K9, Cisco Aironet 1815w Series Access Point, 802.11ac Wave 2 / 2x2 MIMO / Wall Plate Mount (AIR-AP1815W-H-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815W-H-K9, Cisco Aironet 1815w Series Access Point, 802.11ac Wave 2 / 2x2 MIMO / Wall Plate Mount includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815W-H-K9, Cisco Aironet 1815w Series Access Point, 802.11ac Wave 2 / 2x2 MIMO / Wall Plate Mount compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815W-H-K9.
