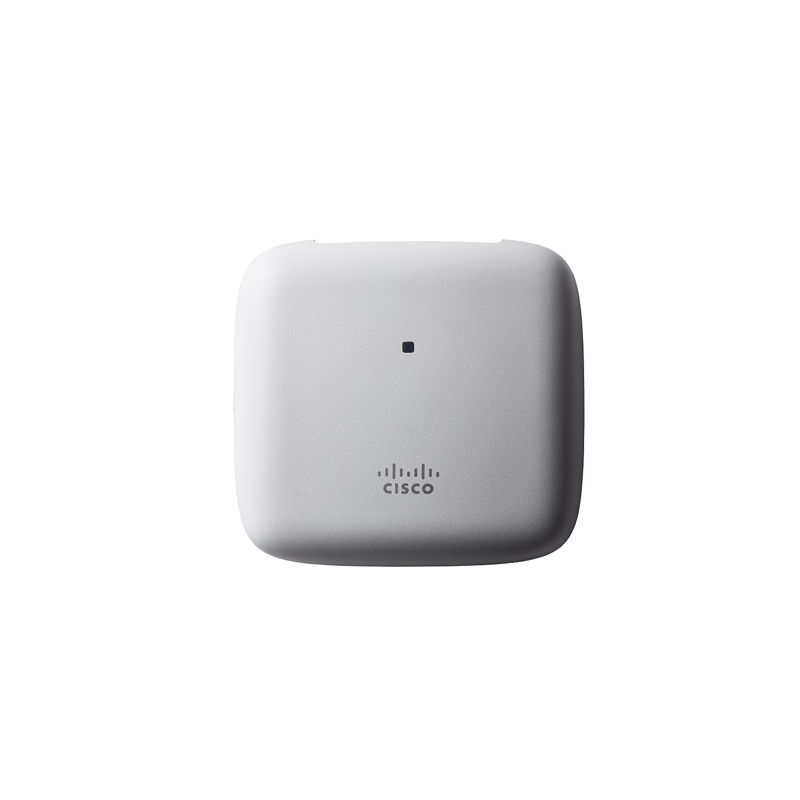

AIR-AP1815I-K-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2, 2x2 MIMO, 867 Mbps

Brand: Cisco · SKU: AIR-AP1815I-K-K9 · MPN: AIR-AP1815I-K-K9 · Category: Networking

AIR-AP1815I-K-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2, 2x2 MIMO, 867 Mbps
Request for Quote
In Stock • 10 units

Cisco Aironet 1815i Series, Reg Domain K

View Wireless APs Products

Specifications

ModelAIR-AP1815I-K-K9
NotesChannel support and max transmit power vary by regulatory domain and country. Refer to product documentation for details.
MountingBracket AIR-AP-BRACKET8 included
SoftwareCisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later; Cisco Mobility Express
BluetoothIntegrated Bluetooth 4.1 (BLE), Max transmit power: 4 dBm, Antenna gain: 2 dBi
IndicatorsStatus LED indicates boot loader status, association status, operating status, warnings, or errors
Power Draw8.3W (max, PoE)
AccessoriesMounting bracket: AIR-AP-BRACKET8= (spare); Security kit: AIR-SEC-50= (sold separately, includes security screws, RJ-45 caps, unlock keys)
Ethernet Ports1 x 10/100/1000BASE-T (RJ-45), PoE; Management console port (RJ-45); supports 802.1X or MAC filtered authentication, dynamic VLAN, traffic local/tunneled
Maximum Clients200 clients per Wi-Fi radio, total 400 clients per access point
System Hardware1 GB DRAM, 256 MB flash, 710 MHz quad-core CPU
Powering Options802.3af/at PoE, optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
802.11ac Features2x2 SU/MU-MIMO, two spatial streams, maximal ratio combining (MRC), 20/40/80 MHz channels, PHY up to 866.7 Mbps (80 MHz @5 GHz), A-MPDU (Tx/Rx), A-MSDU (Rx), DFS, cyclic shift diversity (CSD)
Physical SecurityTorx security screw included
Integrated Antennas2.4 GHz: 2 dBi; 5 GHz: 4 dBi
Dimensions (W x L x H)6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)
Transmit Power Settings2.4 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW); 5 GHz: same as 2.4 GHz
Input Power RequirementsPower injector: AIR-PWRINJ5= or AIR-PWRINJ6=
Non-Overlapping ChannelsRegulatory domain K: 2.412–2.472 GHz (13 channels); 5.180–5.320 GHz (8 channels); 5.500–5.620 GHz (7 channels); 5.745–5.805 GHz (4 channels)
Environmental—OperatingTemperature: 0–40°C (32–104°F), Humidity: 10–90% noncondensing, Max altitude: 3000 m (9843 ft) @ 40°C
Supported WLAN ControllersCisco 2500, 3500, 5500, 8500, Flex 7500, 9800 Series, Wireless Controller Module for ISR G2, WiSM2 for Catalyst 6500, Cisco Mobility Express
Authentication and SecurityAdvanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication, authorization and accounting (AAA), 802.11r, 802.11i
Supported Data Rates (5 GHz)802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11ac MCS 0-9, up to 866.7 Mbps (80 MHz, 2 spatial streams)
Compliance and CertificationsUL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1; FCC Part 15.247, FCC Part 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66/ T71 (Japan), VCCI (Japan), EN 301.489-1/-17 (Europe), EN 50385, IEEE 802.11a/b/g/n/h/d/ac, WPA2, WPA, 802.1X, AES, various EAP types, Wi-Fi Multimedia (WMM), FCC Bulletin OET-65C, RSS-102
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP1815I-K-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2, 2x2 MIMO, 867 Mbps (AIR-AP1815I-K-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP1815I-K-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2, 2x2 MIMO, 867 Mbps includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP1815I-K-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2, 2x2 MIMO, 867 Mbps compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815I-K-K9.
