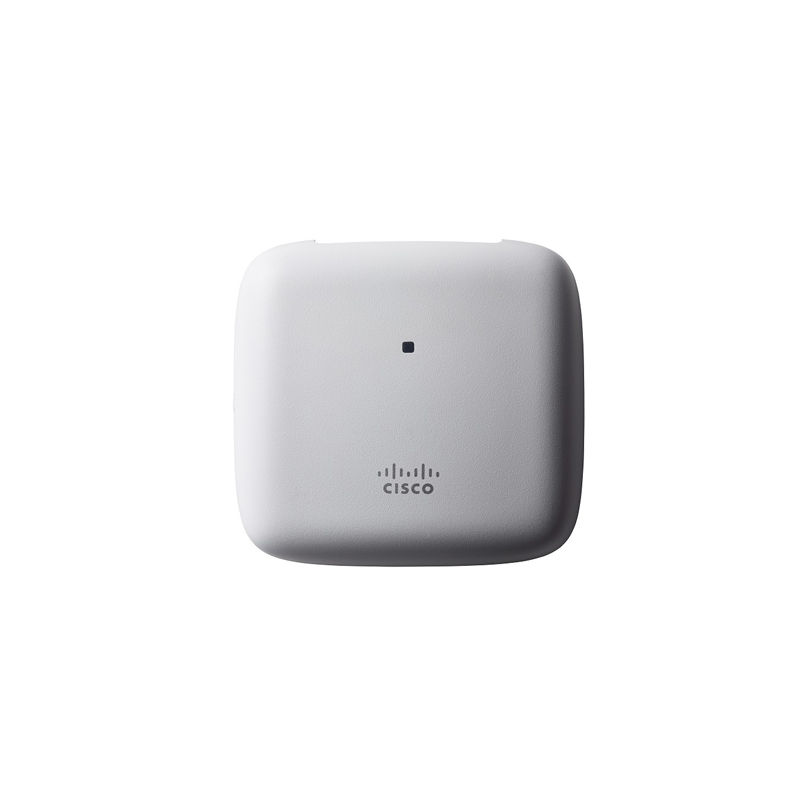

AIR-AP1815I-I-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Reg Domain I

Brand: Cisco · SKU: AIR-AP1815I-I-K9 · MPN: AIR-AP1815I-I-K9 · Category: Networking

AIR-AP1815I-I-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Reg Domain I
Request for Quote
In Stock • 10 units

Cisco Aironet 1815i Series, Reg Domain I

View Wireless APs Products

Specifications

ModelAIR-AP1815I-I-K9
802.11ac2x2 single-user/multiuser MIMO, two spatial streams, maximal ratio combining (MRC), 20/40/80 MHz channels, PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz), packet aggregation (A-MPDU Tx/Rx, A-MSDU Rx), 802.11 Dynamic Frequency Selection (DFS), cyclic shift diversity (CSD)
MountingIncludes mounting bracket AIR-AP-BRACKET8
SoftwareCisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later, Cisco Mobility Express
ComplianceSafety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66/71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107/109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1/-17 (Europe), EN 50385 IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, 802.11ac Security: 802.11i, WPA2, WPA, 802.1X, AES EAP types: EAP-TLS, EAP-Tunneled TLS (TTLS)/MSCHAPv2, Protected EAP (PEAP) v0/EAP-MSCHAPv2, EAP-FAST, PEAP v1/EAP-GTC, EAP-SIM Multimedia: Wi-Fi Multimedia (WMM) Other: FCC OET-65C, RSS-102
IndicatorsStatus LED (boot loader status, association, operating status, warnings, errors)
Power Draw8.3 W (maximum, on PoE)
AccessoriesMounting bracket: AIR-AP-BRACKET8= (spare), physical security kit: AIR-SEC-50= (sold separately, includes screws, RJ-45 caps, unlock keys)
EnvironmentalOperating: 0°C to 40°C (32°F to 104°F), humidity 10% to 90% (non-condensing), max altitude 3000 m (9843 ft) @ 40°C Non-operating: -30°C to 70°C (-22°F to 158°F), humidity 10% to 90% (non-condensing), max altitude 4500 m (15,000 ft) @ 25°C
Ethernet Ports1 x 10/100/1000BASE-T autosensing (RJ-45, PoE), Management console port (RJ-45), authentication with 802.1X or MAC filtered, dynamic VLAN or per port, local or tunneled traffic
Maximum Clients200 per Wi-Fi radio, 400 total per access point
System Hardware1 GB DRAM, 256 MB flash, 710 MHz quad core
Powering Options802.3af/at Ethernet switch, optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
Physical SecurityTorx security screw included
Integrated Antennas2.4 GHz: 2 dBi gain, 5 GHz: 4 dBi gain
Supported Data Rates802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n (2.4 GHz) and 802.11ac (5 GHz): multiple MCS indexes and spatial streams, max up to 144.4 Mbps (802.11n, 2.4 GHz GI=400 ns), max up to 866.7 Mbps (802.11ac, 5 GHz, 2 streams, GI=400 ns, 80 MHz)
Dimensions (W x L x H)6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)
Transmit Power Settings2.4 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW) 5 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW)
Input Power RequirementsPower injector: AIR-PWRINJ5= or AIR-PWRINJ6=
Supported WLAN ControllersCisco 2500, 3500, 5500, 8500, 9800 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco Flex 7500 Series, Cisco Mobility Express
Authentication and SecurityAdvanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication, authorization, and accounting (AAA), 802.11r, 802.11i
Bluetooth (Future Availability)Integrated Bluetooth 4.1 (including BLE) radio, max transmit power: 4 dBm, antenna gain: 2 dBi
Channel Availability (Regulatory Domains)2.4 GHz: up to 13 channels depending on domain 5 GHz: various, up to 12 channels, refer to documentation per region (A, B, C, D, E, F, G, H, I, K, N, Q, R, S, T, Z domains)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP1815I-I-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Reg Domain I (AIR-AP1815I-I-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP1815I-I-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Reg Domain I includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP1815I-I-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Reg Domain I compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815I-I-K9.
