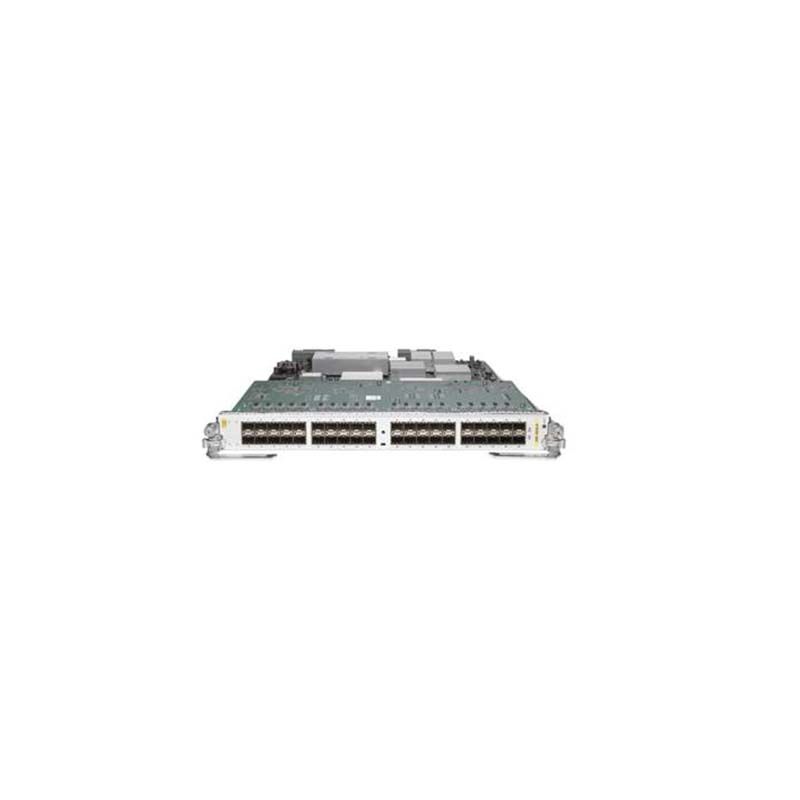

A9K-40GE-E, Cisco ASR 9000 Line Card, 40xGE Ports/Extended Line Card/SFP Required
Brand: Cisco · SKU: A9K-40GE-E · MPN: A9K-40GE-E · Category: Networking
$50,080.20
In Stock • 10 units
Cisco ASR 9000 Line Card A9K-40GE-E 40-Port GE Extended Line Card, Requires SFPs
Specifications
| OA&M | • Ethernet OA&M (EOAM) (IEEE 802.3ah): Ethernet link layer OA&M provides physical-link OA&M to monitor link health and assist in fault isolation. With IEEE 802.1ag, Ethernet link layer OA&M assists in rapid link-failure detection and signaling to remote end nodes of a local failure. • EOAM (IEEE 802.1ag): Ethernet Connectivity Fault Management (E-CFM) provides protocols and procedures to discover and verify the path through IEEE 802.1 bridges and LANs. • EOAM (ITU-T Y.1731): Y.1731 provides Fault Management (FM) and Performance Monitoring (PM). FM builds on IEEE 802.1ag message types to verify the Ethernet network and troubleshoot faults. PM allows service providers to offer SLAs by measuring delay, latency, and loss across an Ethernet network. • Ethernet LMI (E-LMI): Protocol between the customer-edge (CE) device and provider-edge (PE) device on the PE-to-CE UNI link. It notifies the CE device of connectivity status and configuration parameters of Ethernet services available on the CE port. • MPLS OA&M: Supports LSP ping, LSP traceroute, and VCCV. |
|---|---|
| Model | A9K-40GE-E |
| Memory | 4 GB DRAM |
| Safety | Cisco ASR 9000 Series designed to meet: • UL/CSA/IEC/EN 60950-1 • IEC/EN 60825 Laser Safety • ACA TS001 • AS/NZS 60950 • FDA: Code of Federal Regulations Laser Safety |
| Weight | kg |
| Options | Available as low queue, base, or extended line card versions. |
| Immunity | Cisco ASR 9000 Series designed to meet: • IEC/EN 61000-4-2: ESD Immunity (8 kV contact, 15 kV air) • IEC/EN 61000-4-3: Radiated Immunity (10 V/m) • IEC/EN 61000-4-4: Electrical Fast Transient Immunity (2 kV power, 1 kV signal) • IEC/EN 61000-4-5: Surge AC port (4 kV CM, 2 kV DM) • IEC/EN 61000-4-5: Signal ports (1 kV) • IEC/EN 61000-4-5: Surge DC port (1 kV) • IEC/EN 61000-4-6: Immunity to Conducted Disturbances (10 Vrms) • IEC/EN 61000-4-8: Power Frequency Magnetic Field Immunity (30 A/m) • IEC/EN 61000-4-11: Voltage dips, short interruptions, and voltage variations • EN 50121-4: Railway EMC |
| Policers | 256,000 – 512,000 |
| Security | • Cisco IOS XR Software: Provides ACLs, control-plane protection, routing authentication, AAA and TACACS+, SSH, SNMPv3, and RPL support. • Layer 2 ACLs: Packet filtering under an EVC based on MAC addresses. • Layer 3 ACLs: ACL matching by IPv4 packet attributes. • Additional security features: 802.1ad L2CP and BPDU filtering; MAC limiting per EFP or bridge domain; unicast, multicast, and broadcast storm control on any interface or port; Unknown Unicast Flood Blocking (UUFB); DHCP snooping; Unicast Reverse Path Forwarding (URPF); control-plane security; Dynamic ARP Inspection (DAI); IP Source Guard (IPSG). |
| Multicast | • IPv4 Multicast: Supports IGMPv2 and IGMPv3, PIM-SSM, PIM sparse mode (PIM-SM), PIM SSM Mapping, MSDP, Multicast VPN, and Anycast RP. • IGMPv2 and IGMPv3 snooping: Layer 2 mechanism that tracks multicast membership on an L2VPN network. Individual IGMP joins are snooped at the VLAN level or pseudowire level and summarized into a single upstream join. In residential broadband deployments, this allows the network to send only channels that are being watched to downstream users. |
| MPLS L3VPN | • MPLS L3VPN: IP VPN for MPLS allows deployment of scalable IPv4 Layer 3 VPN backbone services for applications, data hosting, e-commerce, and telephony services to business customers. • Carrier supporting carrier (CSC): Allows an MPLS VPN service provider to connect geographically isolated sites using another backbone service provider while maintaining a private address space for customer VPNs, as defined by IETF RFC 4364. • Selective VRF Download: Selectively downloads VRF FIB entries only to line cards with VRF membership, providing larger FIB scale at chassis level without unnecessary entries on each line card. • 6PE and 6VPE: Introduce IPv6 from the edge over an IPv4/MPLS backbone without IPv6 addressing restrictions and without impacting a well-controlled IPv4 backbone. |
| Part Number | A9K-40GE-E |
| Connectivity | 10 Mbps, 100 Mbps, 1 Gbps, and 10 Gbps IEEE 802.3 Ethernet |
| Total queues | 376,000 - 512,000 |
| EMC standards | Cisco ASR 9000 Series designed to meet: • FCC Class A • ICES 003 Class A • AS/NZS 3548 Class A • CISPR 22 (EN 55022) Class A • VCCI Class A • BSMI Class A • IEC/EN 61000-3-2: Power Line Harmonics • IEC/EN 61000-3-3: Voltage Fluctuations and Flicker • EN 50121-4: Railway EMC |
| Manageability | • Cisco IOS XR Software manageability: Provides modular CLI, SNMP, Cisco Discovery Protocol (CDP), LLDP, and native XML interfaces. • Smart Call Home (SCH): Proactive support that identifies and reports problems before they affect business operations, reducing troubleshooting time and speeding issue resolution. • Cisco Active Network Abstraction (ANA): Vendor-neutral management framework for multitechnology, multiservice networks. Operates between the network and OSS layer, aggregating virtual network elements into a software-based virtual network, dynamically discovering components and tracking network element status in near real time. Offers simplified OSS integration, a flexible common infrastructure for resource management, and consistent procedures and interfaces for all network elements. |
| ETSI standards | Cisco ASR 9000 Series designed to meet (qualification in progress): • EN 300 386: Telecommunications Network Equipment (EMC) • ETSI 300 019 Storage Class 1.1 • ETSI 300 019 Transportation Class 2.3 • ETSI 300 019 Stationary Use Class 3.1 • EN 55022: Information Technology Equipment (Emissions) • EN 55024: Information Technology Equipment (Immunity) • EN 50082-1 / EN 61000-6-1: Generic Immunity Standard |
| L2VPN services | • Virtual Private LAN Services (VPLS): VPLS supports the connection of multiple sites in a single bridged domain over a managed IP/MPLS network. VPLS presents an Ethernet interface to customers, simplifies the LAN and WAN boundary, and supports rapid and flexible service provisioning because the service bandwidth is not tied to the physical interface. All services in a VPLS appear to be on the same LAN, regardless of location. • Hierarchical VPLS (HVPLS): HVPLS provides a level of hierarchy at the edge of the VPLS network for increased scale. Two options of HVPLS are supported: QinQ access and Ethernet over MPLS (pseudowire) access. • Virtual Private Wire Service (VPWS) with Ethernet over MPLS (EoMPLS): EoMPLS transports Ethernet frames across an MPLS core using pseudowires. Individual EFPs or traffic from an entire port can be transported over the MPLS backbone using pseudowires to an egress interface or subinterface. • Pseudowire redundancy: Pseudowire redundancy supports the definition of a backup pseudowire to protect a primary pseudowire that fails. • G.8032: Provides sub-50-ms protection for Ethernet traffic in a ring topology. The implementation on the Cisco ASR 9000 Series is compliant with ITU-T G.8032 version 2. • Multisegment pseudowire stitching: A method for interworking two pseudowires together to form a cross-connect relationship. |
| Layer 3 routing | • IPv4 routing: Supports IPv4 services and routing protocols including BGP, IS-IS, OSPF, RIP, static routing, IPv4 Multicast, RPL, HSRP, and VRRP. • IPv6 routing: Supports IPv6 services including OSPFv3, IS-IS, VRRPv6, DHCPv6 relay, and static routing. • BGP PIC: BGP Prefix Independent Convergence provides fast convergence of BGP routes using Cisco IOS XR Software innovations. |
| Storage humidity | 5% to 95% relative humidity (not to exceed 0.024 kg water per 1 kg of dry air) |
| High availability | • MPLS TE-FRR: Provides Layer 3 protection switching for MPLS LSPs, with temporary rerouting around a failed link, node, or path. • Bidirectional Forwarding Detection (BFD): Fast forwarding-path failure detection for all media types, encapsulations, topologies, and routing protocols. • IEEE 802.3ad Link Aggregation Bundles: Supports bundles of multiple links for resiliency and load balancing across member links. • Multichassis Link Aggregation Group (MC-LAG): Provides a standards-based IEEE 802.3ad bundle to connect to a pair of Cisco ASR 9000 Series routers that appear as a single router. Supports rapid restoration on link or node failure and works with L2VPN, L3VPN, residential backhaul, mobile aggregation, and service provider edge solutions. |
| Power consumption | Maximum 350 W – 630 W (depending on card type); typical 310 W – 565 W (depending on card type) |
| Operating altitude | −60 to 4000 m (up to 2000 m conforms to IEC, EN, UL, and CSA 60950 requirements) |
| Module weight range | 14 – 19 lb (6.35 – 8.62 kg) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this A9K-40GE-E, Cisco ASR 9000 Line Card, 40xGE Ports/Extended Line Card/SFP Required (A9K-40GE-E) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This A9K-40GE-E, Cisco ASR 9000 Line Card, 40xGE Ports/Extended Line Card/SFP Required includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the A9K-40GE-E, Cisco ASR 9000 Line Card, 40xGE Ports/Extended Line Card/SFP Required compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the A9K-40GE-E.
