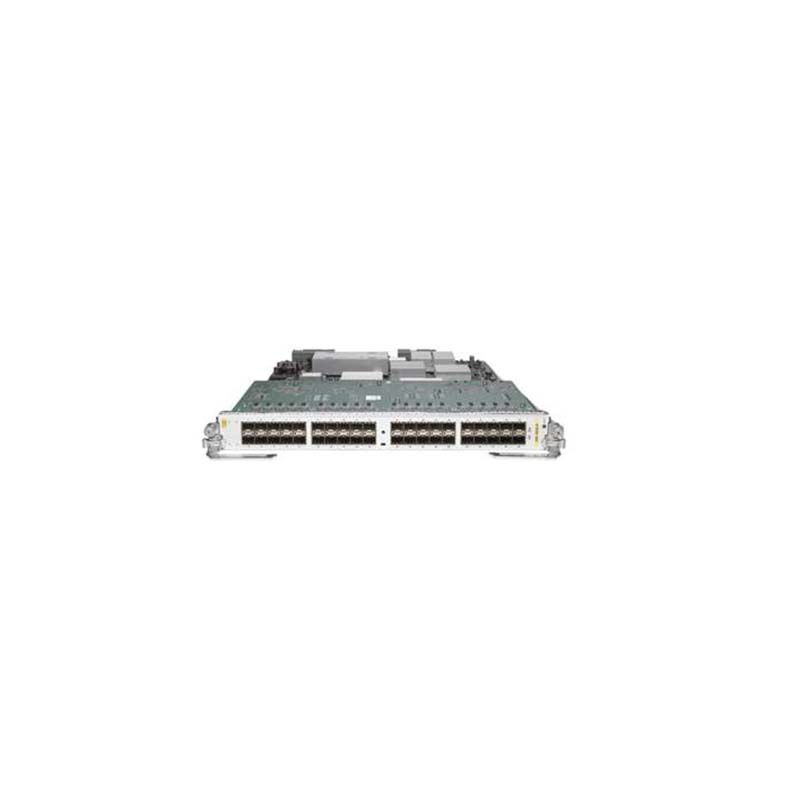

A9K-40GE-B, Cisco ASR 9000 Line Card, 40xGE/Requires SFPs/High-density
Brand: Cisco · SKU: A9K-40GE-B · MPN: A9K-40GE-B · Category: Networking
Cisco ASR 9000 Line Card A9K-40GE-B 40-Port GE Line Card, Requires SFPs
Specifications
| Model | A9K-40GE-B |
|---|---|
| Memory | 4 GB DRAM |
| Weight | kg |
| Options | Available as low queue, base, or extended line card. |
| Policers | 64,000–128,000 |
| Part Number | A9K-40GE-B |
| ANA benefits | Simplified OSS integration, common infrastructure for resource management, and consistent procedures and interfaces across elements. |
| Connectivity | 10 Mbps, 100 Mbps, 1 Gbps, and 10 Gbps IEEE 802.3 Ethernet |
| Total queues | 96,000–192,000 |
| EMC standards | Designed to meet FCC Class A, ICES-003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN 55022) Class A, VCCI Class A, BSMI Class A, IEC/EN 61000-3-2 (power line harmonics), IEC/EN 61000-3-3 (voltage fluctuations and flicker), and EN 50121-4 Railway EMC. |
| ETSI standards | Designed to meet EN 300 386 (EMC), ETSI 300 019 Storage Class 1.1, Transportation Class 2.3, Stationary Use Class 3.1, EN 55022 (emissions), EN 55024 (immunity), and EN 50082-1/EN 61000-6-1 generic immunity. |
| NEBS standards | Designed to meet SR-3580 NEBS Level 3, GR-1089-CORE NEBS EMC and Safety, GR-63-CORE NEBS Physical Protection, and VZ.TPR.9205 Verizon TEEER. |
| OA&M - MPLS OA&M | Supports MPLS LSP ping, LSP traceroute, and VCCV for MPLS operations, administration, and maintenance. |
| Safety standards | Designed to meet UL/CSA/IEC/EN 60950-1, IEC/EN 60825 laser safety, ACA TS001, AS/NZS 60950, and FDA laser safety (CFR). |
| Storage humidity | 5 to 95% relative humidity (not to exceed 0.024 kg water per 1 kg of dry air) |
| Card weight range | 14–19 lb (6.35–8.62 kg) |
| Power consumption | Maximum 350–630 W (depending on card type); typical 310–565 W (depending on card type) |
| Immunity standards | Designed to meet IEC/EN 61000-4-2 (ESD: 8 kV contact, 15 kV air), IEC/EN 61000-4-3 (radiated immunity 10 V/m), IEC/EN 61000-4-4 (EFT: 2 kV power, 1 kV signal), IEC/EN 61000-4-5 (surge AC port 4 kV CM, 2 kV DM; signal ports 1 kV; DC port 1 kV), IEC/EN 61000-4-6 (conducted disturbances 10 Vrms), IEC/EN 61000-4-8 (power frequency magnetic field 30 A/m), IEC/EN 61000-4-11 (voltage dips and interruptions), and EN 50121-4 Railway EMC. |
| Operating altitude | -60 to 4000 m (up to 2000 m conforms to IEC, EN, UL, and CSA 60950 requirements) |
| Product Description | 40-Port GE Medium Queue Line Card, requires SFPs |
| Storage temperature | -40 to 70 °C (-40 to 158 °F) |
| L2VPN services - VPLS | Virtual Private LAN Services connect multiple sites in one bridged domain over IP/MPLS, presenting a simple Ethernet interface independent of physical bandwidth. |
| High availability - BFD | Bidirectional Forwarding Detection delivers fast path-failure detection across media, encapsulations, topologies, and routing protocols. |
| L2VPN services - G.8032 | Provides sub-50 ms Ethernet protection in ring topologies, compliant with ITU-T G.8032 v2 on Cisco ASR 9000 Series. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this A9K-40GE-B, Cisco ASR 9000 Line Card, 40xGE/Requires SFPs/High-density (A9K-40GE-B) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This A9K-40GE-B, Cisco ASR 9000 Line Card, 40xGE/Requires SFPs/High-density includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the A9K-40GE-B, Cisco ASR 9000 Line Card, 40xGE/Requires SFPs/High-density compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the A9K-40GE-B.
