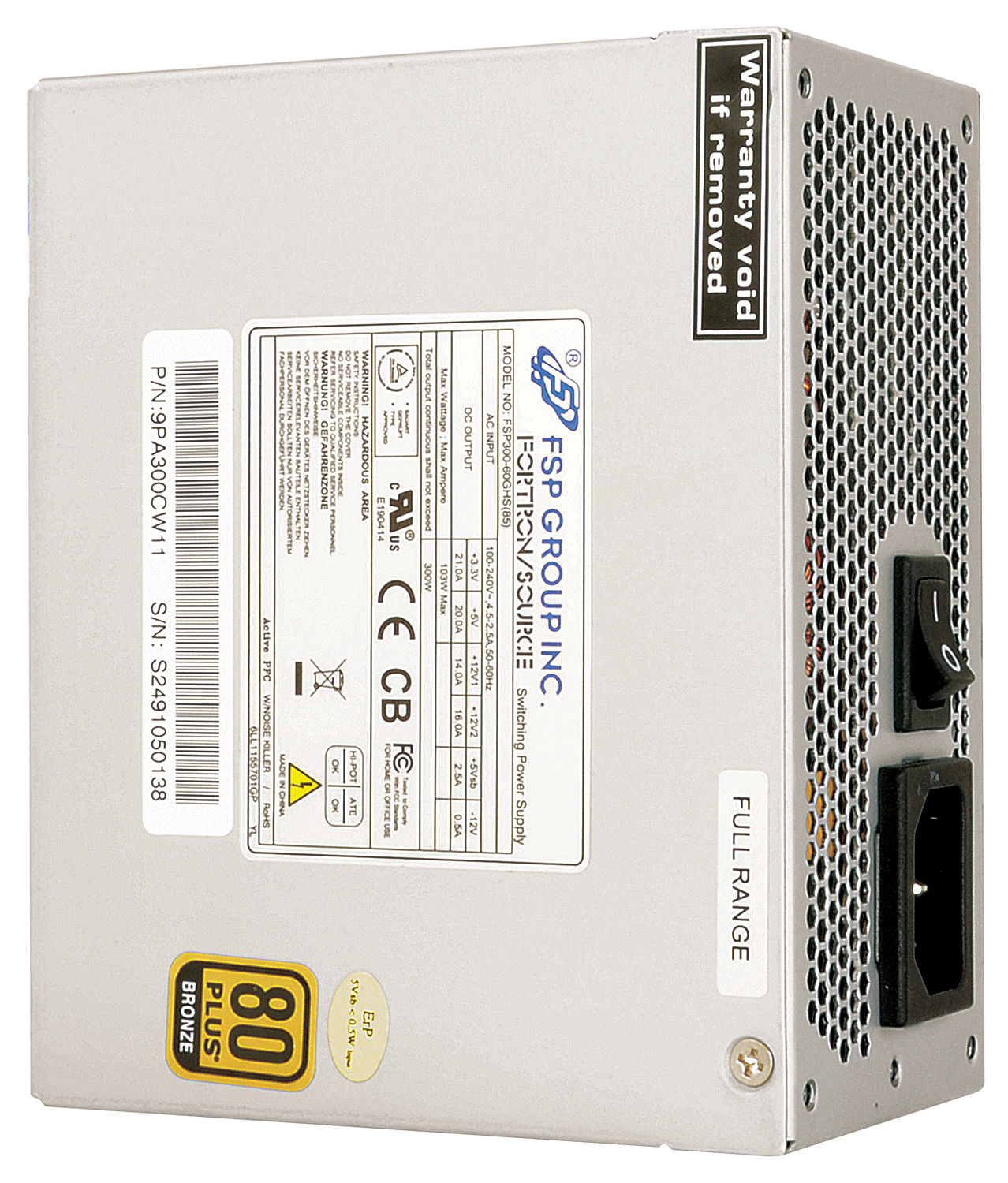

FSP FSP300-50GHS 85+ power supply unit 300 W 20+4 pin ATX SFX White
Brand: FSP · SKU: 9PA300CW11 · MPN: 9PA300CW11 · Category: Components
FSP FSP300-50GHS 85+, 300 W, 90 - 265 V, 47 - 63 Hz, 3.5 A, 103 W, 228 W
Specifications
| Depth | 100 mm |
|---|---|
| Width | 125 mm |
| Height | 63.5 mm |
| Purpose | PC/Server |
| Efficiency | 82% |
| Total power | 300 W |
| Fan diameter | 8 cm |
| Input current | 3.5 A |
| Number of fans | 1 fan(s) |
| Product colour | White |
| AC input voltage | 90 - 265 V |
| AC input frequency | 47 - 63 Hz |
| Combined power (+5V) | 103 W |
| 80 PLUS certification | 80 PLUS Bronze |
| Combined power (+12V) | 228 W |
| Combined power (-12V) | 21 W |
| Combined power (+3.3V) | 103 W |
| Combined power (+5Vsb) | 21 W |
| Compliance certificates | RoHS |
| CPU P4 connector (4-pin) | 1 |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+12V1) | 14 A |
| Max output current (+12V2) | 19 A |
| Warranty | 3-Year Warranty |
| Dimensions | 125 mm x 100 mm x 63.5 mm |
Product Description
This SFX form factor PSU has a real power rating of 300W (continuous @ 50°C) and has 80 PLUS® Bronze certification, which guarantees a minimum efficiency of 82% at low (20%) load, 85% at typical (50%) load and 82% at full load. The 80mm cooling fan of the FSP300-60GHS is located on the bottom side to help reduce the overall acoustic noise level of the system. The 80 PLUS® Bronze requirement also meets the Energy Star Version 6.1 Power Supply and Power Management Requirements for Computers: Effective September 10th, 2014.
Key Features
FSP FSP300-50GHS 85+. Total power: 300 W, AC input voltage: 90 - 265 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC/Server, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Bronze. Product colour: White, Fan diameter: 8 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS
Frequently Asked Questions
Is this product genuine OEM?
Yes, this FSP FSP300-50GHS 85+ power supply unit 300 W 20+4 pin ATX SFX White (9PA300CW11) is 100% genuine FSP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This FSP FSP300-50GHS 85+ power supply unit 300 W 20+4 pin ATX SFX White includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the FSP FSP300-50GHS 85+ power supply unit 300 W 20+4 pin ATX SFX White compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 9PA300CW11.
