FSP FSP270-60LE(80) power supply unit 270 W 20+4 pin ATX ATX Grey
Brand: FSP · SKU: FSP270-60LE(80) · MPN: FSP270-60LE(80) · Category: Components
FSP FSP270-60LE(80), 270 W, 115 - 230 V, 47 - 63 Hz, 5 A, +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V, Active
Specifications
| Depth | 150 mm |
|---|---|
| Width | 80 mm |
| Height | 40 mm |
| Safety | UL, CSA, IEC, CE, TUV/VDE, NEMKO |
| Weight | 1.36 kg |
| Total power | 270 W |
| Cabling type | Non-Modular |
| Connector(s) | IEC C14 |
| Fan diameter | 4 cm |
| Fan location | Side |
| Input current | 5 A |
| Number of fans | 1 fan(s) |
| Product colour | Grey |
| AC input voltage | 115 - 230 V |
| Country of origin | Taiwan |
| AC input frequency | 47 - 63 Hz |
| Dimensions (WxDxH) | 150 x 81.5 x 40.3 mm |
| Power rocker switch | No |
| 80 PLUS certification | 80 PLUS |
| Compliance certificates | RoHS |
| CPU P4 connector (4-pin) | 1 |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.8 A |
| Power protection features | Over current, Over voltage, Short circuit |
| Warranty | 3-Year Warranty |
| Weight | 1.36 kg |
| Dimensions | 80 mm x 150 mm x 40 mm |
Product Description

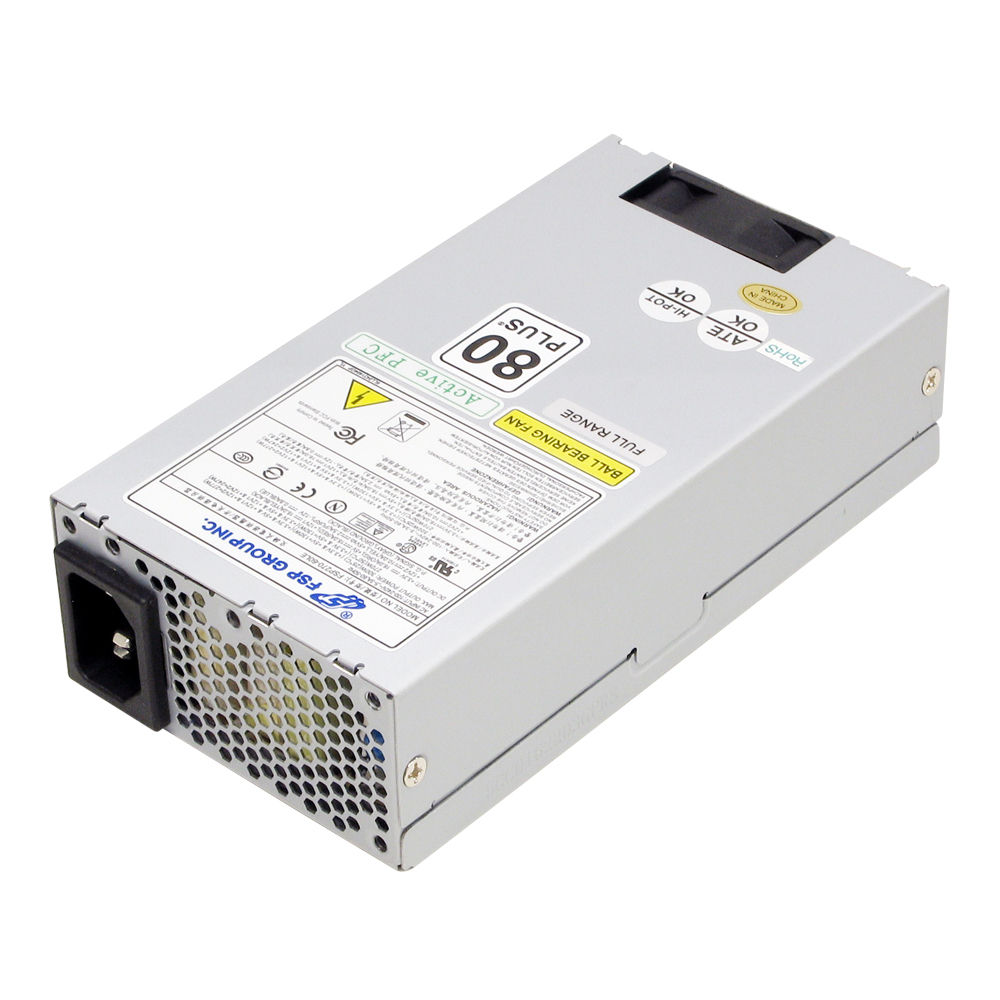

THIS FLEX ATX 270-WATT POWER SUPPLY UNIT is 80PLUS certified for strict operating efficiency performance. It features full range input, Active PFC, 40mm ball bearing cooling fan with chrome fan guard. It fits most compact high-performance Flex ATX form factor and high operating efficiency configuration. FSP Quality Assurance Program, a manufacturer’s direct service guarantees quality and performance for a period of 2-Year, included. All FSP OEM models are qualified for RoHS, Lead-Free, Green Product (G.P) global environmental friendly status. - 80PLUS CERTIFIED - SUPPORTS AMD/INTEL CPU SYSTEM - 270-WATT CONTINUOUS OUTPUT - 40mm COOLING FAN SYSTEM - THERMAL CONTROL SYSTEM LINKED TO FAN - ENERGY SAVER | 1-WATT STANDBY MODE - HIGH POWER CONVERSION EFFICIENCY - ACTIVE PFC | FULL RANGE INPUT
Key Features
FSP FSP270-60LE(80). Total power: 270 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Connector(s): IEC C14, Cabling type: Non-Modular. Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS, Mean time between failures (MTBF): 100000 h. Product colour: Grey, Fan diameter: 4 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS
