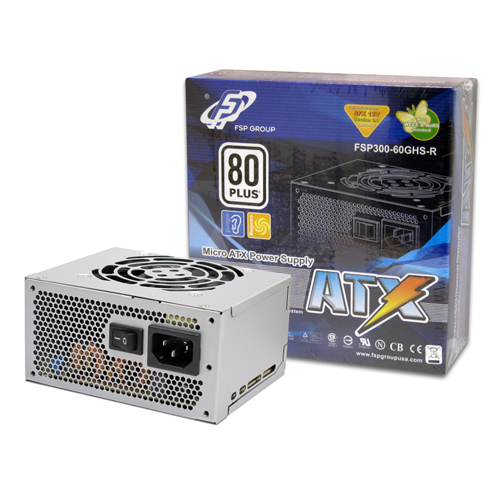

FSP FSP300-60GHS-R power supply unit 300 W 20+4 pin ATX SFX Grey
Brand: FSP · SKU: FSP300-60GHS-R · MPN: FSP300-60GHS-R · Category: Components
FSP FSP300-60GHS-R, 300 W, 115 - 230 V, 47 - 63 Hz, 3.5 A, +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V, Active
Specifications
| Depth | 100 mm |
|---|---|
| Width | 125 mm |
| Height | 63.5 mm |
| Safety | UL, FCC, CE, IEC, CSA, TUV/VDE, NEMKO, BSMI, CCC |
| Weight | 862 g |
| Purpose | PC |
| Total power | 300 W |
| Cabling type | Non-Modular |
| Connector(s) | IEC C14 |
| Fan diameter | 8 cm |
| Fan location | Top |
| Input current | 3.5 A |
| Number of fans | 1 fan(s) |
| Product colour | Grey |
| AC input voltage | 115 - 230 V |
| Country of origin | Taiwan |
| AC input frequency | 47 - 63 Hz |
| Dimensions (WxDxH) | 150 x 81.5 x 40.3 mm |
| Power rocker switch | No |
| 80 PLUS certification | 80 PLUS |
| Compliance certificates | RoHS |
| CPU P4 connector (4-pin) | 1 |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.5 A |
| Warranty | 3-Year Warranty |
| Weight | 862 g |
| Dimensions | 125 mm x 100 mm x 63.5 mm |
Product Description
FSP300-60GHS-R MICRO ATX 300-WATT POWER SUPPLY UNIT is a80PLUS CERTIFIED power supply designed to fit most compact small form factor PC systems with high-power output in mind. Power specification is fully compatible to Intel and AMD power CPU and standard PC configurations. Design, minimum efficiency and output performance are certified by Intel Mt. Jade specification requirement. It features true 300-WATT power output and 80mm cooling fan with thermal sensing technology. It is an excellent choice for compact, small form factor systems integration that demands higher power output requirement. FSP Quality Assurance Program, a manufacturer’s direct service guarantees quality and performance for a period of 3-Year, included. All models are qualified for RoHS, Lead-Free, Green Product (G.P) global environmental friendly status. - SUPPORTS AMD/INTEL CPU SYSTEM - 300-WATT MICRO ATX for PC - HIGH POWER CONVERSION EFFICIENCY | 80PLUS CERTIFIED - 80mm COOLING FAN SYSTEM - INCLUDES SFX TO PS2 BRACKET FOR EASY FITTING INTO STD. ATX CASE - THERMAL CONTROL SYSTEM LINKED TO FAN - ENERGY SAVER | 1-WATT STANDBY MODE - SUPPORTS SERIAL-ATA OUTPUT
Key Features
FSP FSP300-60GHS-R. Total power: 300 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Connector(s): IEC C14, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS. Product colour: Grey, Fan diameter: 8 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS
Frequently Asked Questions
Is this product genuine OEM?
Yes, this FSP FSP300-60GHS-R power supply unit 300 W 20+4 pin ATX SFX Grey (FSP300-60GHS-R) is 100% genuine FSP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This FSP FSP300-60GHS-R power supply unit 300 W 20+4 pin ATX SFX Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the FSP FSP300-60GHS-R power supply unit 300 W 20+4 pin ATX SFX Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the FSP300-60GHS-R.
