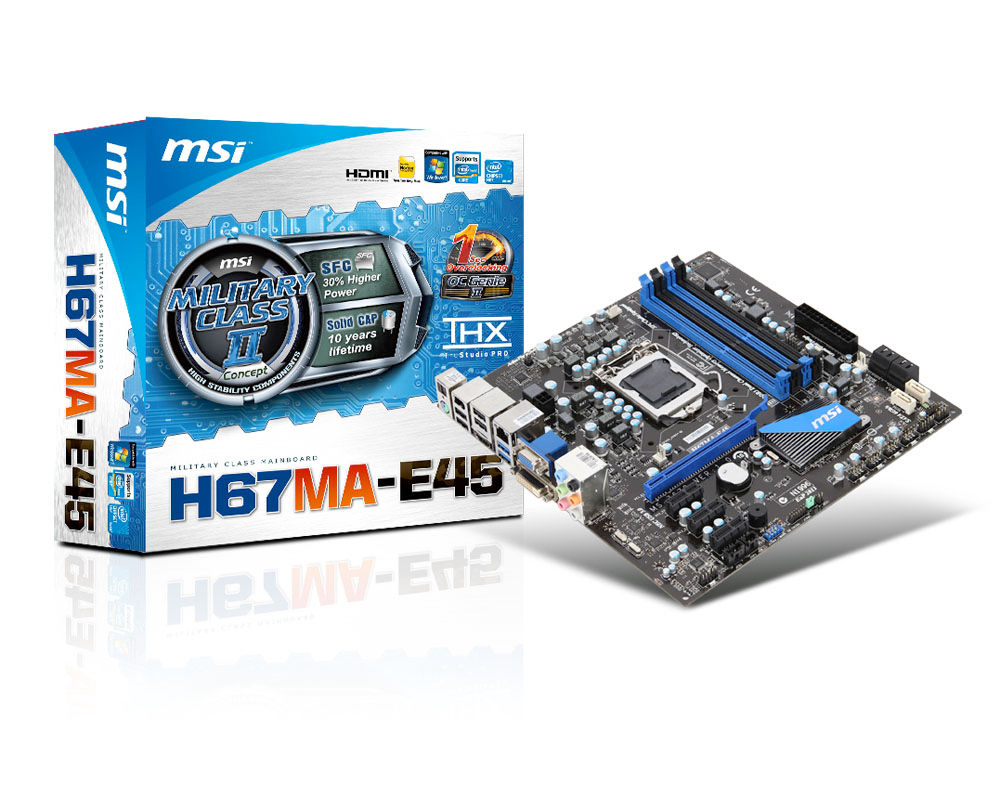

MSI H67MA-E45 (B3) Intel® H67 LGA 1155 (Socket H2) micro ATX

Specifications

Product Description

Intel® H67 Chipset Based - Military Class II Concept components: Top quality & stability; - OC Genie II: Auto OC to boost performance in 1 sec; - ClickBIOS: Easy-to-use UEFI BIOS interface; - THX TruStudio PRO: deliver the fullest audio experience for games, music and movies; - IGP Supports DirectX 10.1, Shader Model 4.1 and OpenGL 3.0; - Support USB 3.0 & SATA 6Gb/s. Military Class II Concept The perfect trinity of quality, stability and efficiency all exist at one mainboard to meet end user expectations. The MSI Military Class II series products provide the long lifespan, unparalleled quality, extreme performance and ultimate efficiency. SFC SFC(Super Ferrite Choke).The super Ferrite Chokes use a Ferrite core that is Super-Permeable. Compare with traditional choke, the Super Ferrite Chokes run at a 35 degree Celsius lower temperature. The lower working temperature will enhance mainboard stability. Solid CAP 10 years long lifespan. For providing the highest quality products, we built-in Solid CAP in the entire Military Class series. This not only makes bursting capacitors a non-issue but also ensures a dramatically extended lifetime and ultra-low ESR. OC Genie II Just press the OC Genie button or enable OC Genie II function in BIOS menu, the CPU performance (P67 series) or the 3D performance of iGPU (H67/H61 series) will be highly improved. Whether users want to watch a high bit-rate HD movie or go online gaming, both can be enjoyed with image performance that is smoother and lag-free! Features: - Exclusive OC Genie detect hardware configuration; - Intelligently auto set clock/voltage of CPU and memory or iGPU; - Increase overall system performance in 1 second. THX TruStudio PRO THX is a trade mark of a high-end audio/visual reproduction standard for movies, home theaters, computer speakers and other audio devices. THX Certified Audio products are designed to let users experience movies & videos as live show. The true sound effect can make high definition video more powerful. Features: - A high-fidelity sound reproduction standard; - Accurately reproduce the fullest audio experience of movie, music and game soundtracks. Click BIOS - Universal Extensible Firmware Interface; - User-friendly mouse-controlled BIOS menu; - Pre-OS Applications(HDD Backup, Game, Memory test); - 15 languages support. SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. Features: - 2X Faster Than SATA 3Gb/s; - Up to 6Gb/s Data Transfer Bandwidth; - Unleash True Performance of New HDDs/SSDs. M-Flash Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. Features: - Backup/Restore Your BIOS to/from Any USB Flash Disk; - Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process; - Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process. APS (Active Phase Switching) Active Phase Switching, APS, technology is an intelligent design that helps to save energy on MSI’s mainboards. The underlying idea is to switch off the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processor’s loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI's own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage. USB 3.0 Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. Features: - 10X Faster Than USB 2.0; - Up to 5Gb/s Data Transfer Bandwidth; - Boost Transfer Rate Between Your PC and External Storage Devices. HDMI v1.4 HDMI (High-Definition Multimedia Interface) is new generation fully digital video/audio interface which can transfer 1080p High-Definition video and Audio output in single compact connector. Supporting HDCP copy protection such as Blu-ray Discs, HDMI provides you with the highest-quality home theater experience. Features: - Next-Gen Multimedia Interface; - Deliver Full HD Video & Audio output In Only One Cable; (HDMI 1.4 is only supported with 2nd Intel®Generation CoreTM Processors. Pentium and Celero

Key Features

MSI H67MA-E45 (B3). Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 1024 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet
