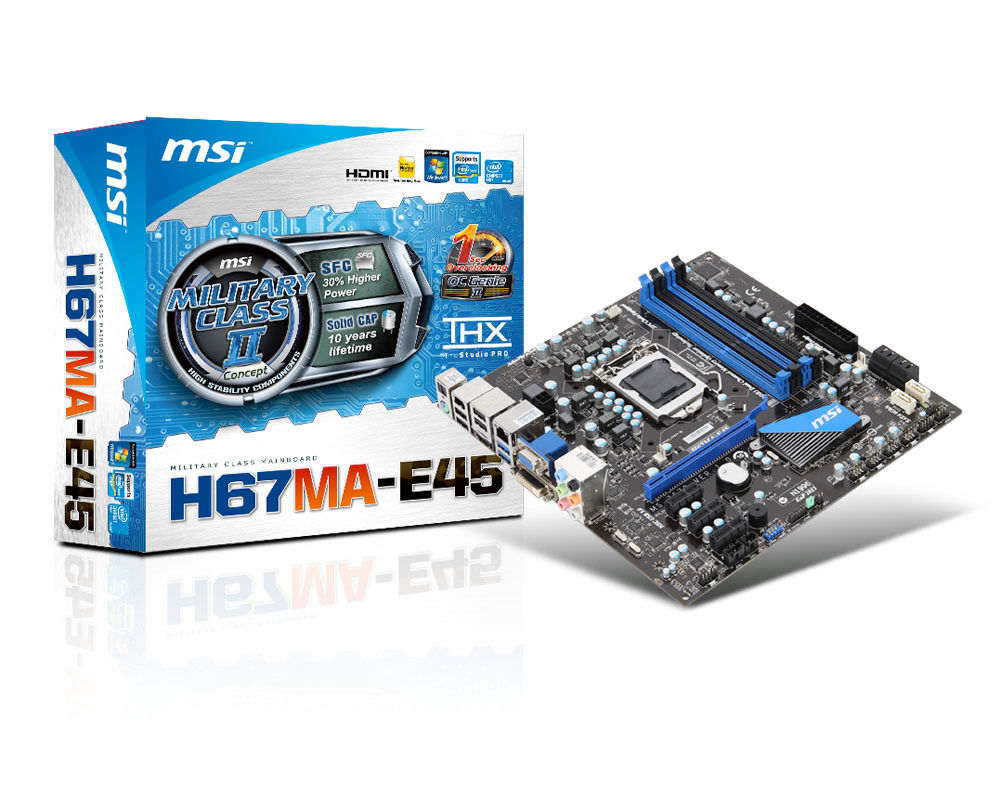

MSI H67MA-E45 Intel® H67 LGA 1155 (Socket H2) micro ATX
Brand: MSI · SKU: 7680-020R · MPN: 7680-020R · Category: Components
MSI H67MA-E45, Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, 32 GB, Dual-channel, 1.5 V
Specifications
| Depth | 245 mm |
|---|---|
| Width | 245 mm |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10 |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 4 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel® H67 |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 3 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
- A high-fidelity sound reproduction standard - Accurately reproduce the fullest audio experience of movie, music and game soundtracks - Instant MB info monitor - Green Power: CPU Phase, system fan speed controlled with max power saving - Smart Mode: 4 instant OC modes - User friendly & totally free applications - Power on to run applications in 25 seconds - Multi-language interface support - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU. - Saving Power under Variable Loading. - Power Usage More Efficiency. - Revolutionary SuperSpeed USB 3.0, 10x faster than USB 2.0 - Up to 5Gbps bandwidth, boost data transfer rate between PC and USB device - Support next-generation SATAIII, up to 6Gbps bandwidth - Double the data transfer rate of SATAII (3Gbps) - Universal charger utility for Apple iPad, iPhone, iPod - Compatible with all MSI Mainboards - Supports 1080 Full-HD multimedia playback - A perfect connection to HD visual effects - Better casual gaming experience with DirectX 10 support - Faster and Flexible and instant - If BIOS crash, it still can boot from USB Drive - Update BIOS from USB Drive by M-Flash Fucntion - The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc - Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers - support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.
Key Features
MSI H67MA-E45. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Maximum internal memory: 32 GB, Memory channels: Dual-channel, Memory voltage: 1.5 V. RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset: Intel® H67
