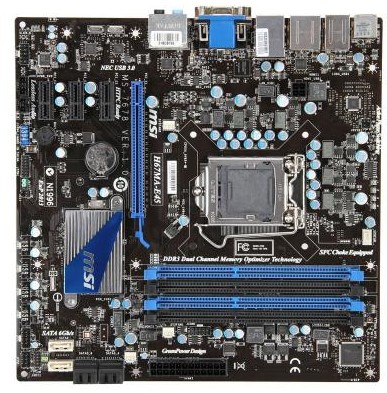

MSI H67MA-E45(B3) LGA 1155 (Socket H2) micro ATX
Brand: MSI · SKU: 7678-011R · MPN: 7678-011R · Category: Components
MSI H67MA-E45(B3), Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, 1066,1333 MHz, 6.4 GT/s, 32 GB
Specifications
| Depth | 245 mm |
|---|---|
| Width | 245 mm |
| BIOS type | AMI |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10 |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| System bus rate | 6.4 GT/s |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 4 |
| HDMI ports quantity | 1 |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 3 |
| S/PDIF out connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
- Military Class II Concept components: Top quality & stability - OC Genie II: Auto OC to boost performance in 1 sec - ClickBIOS: Easy-to-use UEFI BIOS interface - THX TruStudio PRO: deliver the fullest audio experience for games, music and movies - IGP Supports DirectX 10.1, Shader Model 4.0 and OpenGL 2.0 - Support USB 3.0 & SATA 6Gb/s A high-fidelity sound reproduction standard Accurately reproduce the fullest audio experience of movie, music and game soundtracks Instant MB info monitor Green Power: CPU Phase, system fan speed controlled with max power saving Smart Mode: 4 instant OC modes User friendly & totally free applications Power on to run applications in 25 seconds Multi-language interface support APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, its for CPU. Saving Power under Variable Loading. Power Usage More Efficiency. Revolutionary SuperSpeed USB 3.0, 10x faster than USB 2.0 Up to 5Gbps bandwidth, boost data transfer rate between PC and USB device Support next-generation SATAIII, up to 6Gbps bandwidth Double the data transfer rate of SATAII (3Gbps) Universal charger utility for Apple iPad, iPhone, iPod Compatible with all MSI Mainboards Supports 1080 Full-HD multimedia playback A perfect connection to HD visual effects Better casual gaming experience with DirectX 10 support Faster and Flexible and instant If BIOS crash, it still can boot from USB Drive Update BIOS from USB Drive by M-Flash Fucntion The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs MSI Advanced Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. live_update_4 Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.
Key Features
MSI H67MA-E45(B3). Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Maximum internal memory: 32 GB, Memory channels: Dual-channel, Memory voltage: 1.5 V. RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 1024 MB. Ethernet interface type: Fast Ethernet, LAN controller: Realtek RTL8111E, Networking features: 10/100/1000 Mbps
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI H67MA-E45(B3) LGA 1155 (Socket H2) micro ATX (7678-011R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI H67MA-E45(B3) LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI H67MA-E45(B3) LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7678-011R.
