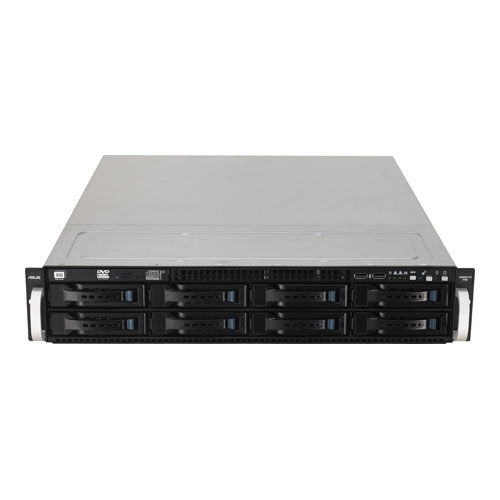

ASUS RS520-E6/ERS8 Intel® 5520 Socket B (LGA 1366) Rack (2U) Silver
Brand: ASUS · SKU: 90S63A1000U600UET · MPN: 90S63A1000U600UET · Category: Components
ASUS RS520-E6/ERS8, Intel® 5520, Socket B (LGA 1366), Intel, Intel® Xeon®, E5500, E5600, L5500, L5600, X5500, X5600, 1GB, 2GB, 4GB, 8GB
Specifications
| Depth | 444 mm |
|---|---|
| Width | 615 mm |
| Height | 87 mm |
| Safety | CE, EN55022, EEC, TUV |
| Weight | 22 kg |
| RAID levels | 0, 1, 5, 10 |
| Chassis type | Rack (2U) |
| Power supply | 770 W |
| Graphics card | AST2050 |
| LAN controller | Intel® 82574L |
| Product colour | Silver |
| Processor family | Intel |
| Processor socket | Socket B (LGA 1366) |
| Hot-swap HDD bays | Yes |
| Intel Xeon series | E5500, E5600, L5500, L5600, X5500, X5600 |
| Storage controller | Intel ICH10R |
| Motherboard chipset | Intel® 5520 |
| PS/2 ports quantity | 2 |
| Graphics card family | ASPEED |
| Maximum RDIMM memory | 96 GB |
| Maximum UDIMM memory | 48 GB |
| Number of DIMM slots | 12 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 2 |
| Warranty | 3-Year Warranty |
| Weight | 22 kg |
| Dimensions | 615 mm x 444 mm x 87 mm |
Product Description
2U Storage Server for Enterprise Applications RS520-E6/ERS8 is leading in computing power with support of the Intel® Xeon® 5500 series processor platform and total 12-DIMM memory capacity for computing-intensive applications. With 8 HDDs and versatile features, the RS520-E6/ERS8 is ideal for storage server use. Mass Storage Capacity & Complete RAID Solution RS520-E6/ERS8 has eight 3.5” hot-swap HDD bays to support SATA or SAS HDDs, meeting the demand of mass storage. The hot-swap design is reliable for 7x24 non-stop services. With ASUS optional PIKE upgrade kit, the server is able to provide flexible RAID choices. Flexible I/O Expansion Choices Catering to different demands of users, RS520-E6/ERS8 is equipped with three PCI-Express expansion slots, two of which support Full-Height/Full-Length PCI-E G2 card. High Availability for Mission Critical Enterprise applications The RS520-E6/ERS8 is built with hot-swap 1+1 redundant power supply to provide better reliability and eliminate the risk of downtime caused by power supply. In addition, the HDD bays are also hot-swappable for easy maintenance. Power-saving Solution With 80+ PFC high efficiency power supply, RS520-E6/ERS8 is able to reduce the power loss and power consumption, and save power bill for users, which can be a large deal for 7x24 hour non-stop servers. The EPU (Energy Processing Unit) engine will provide optimal and effective CPU power management. Virtualization Support The onboard vertical USB connector for VMware ESXi supports virtualization application in RS520-E6/ERS8. Virtualization not only improves the server’s utility rate and manageability, but also reduces TCO for customers. Real-time and Out-of-band Server Management The optional ASMB4-iKVM module offers real-time web-based management and remote system control (KVM-over-IP) with a single local computer.
Key Features
ASUS RS520-E6/ERS8. Motherboard chipset: Intel® 5520, Processor socket: Socket B (LGA 1366), Processor family: Intel. Supported DIMM module capacities: 1GB, 2GB, 4GB, 8GB, Maximum RDIMM memory: 96 GB, Maximum UDIMM memory: 48 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA II, Storage controller: Intel ICH10R. Maximum graphics card memory: 8 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS520-E6/ERS8 Intel® 5520 Socket B (LGA 1366) Rack (2U) Silver (90S63A1000U600UET) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS520-E6/ERS8 Intel® 5520 Socket B (LGA 1366) Rack (2U) Silver includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS520-E6/ERS8 Intel® 5520 Socket B (LGA 1366) Rack (2U) Silver compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90S63A1000U600UET.
