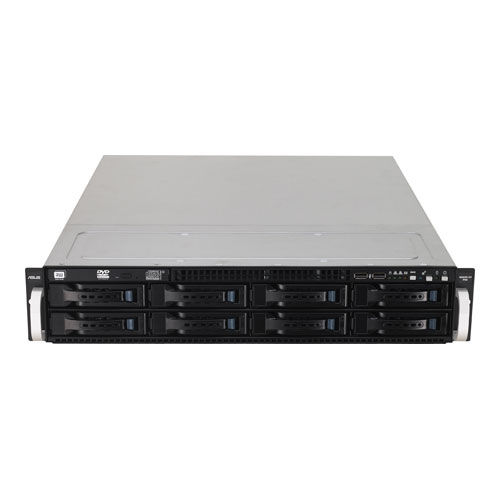

ASUS RS520-E6/RS8 Intel® 5500 Socket B (LGA 1366) Rack (2U)
Brand: ASUS · SKU: 90S3YA000U110UET · MPN: 90S3YA000U110UET · Category: Components
ASUS RS520-E6/RS8, Intel® 5500, Socket B (LGA 1366), Intel, Serial ATA II, 0, 1, 8 MB
Specifications
| ECC | Yes |
|---|---|
| Depth | 615 mm |
| Width | 444 mm |
| Height | 87 mm |
| Weight | 22 kg |
| RAID levels | 0, 1 |
| Chassis type | Rack (2U) |
| Power supply | 770 W |
| LAN controller | Intel® 82574L |
| Expansion slots | 1 x PIKE |
| Bundled software | ASWM2.0 |
| Processor family | Intel |
| Processor socket | Socket B (LGA 1366) |
| Motherboard chipset | Intel® 5500 |
| PS/2 ports quantity | 2 |
| Number of DIMM slots | 12 |
| PCI Express x1 slots | 1 |
| PCI Express x8 slots | 2 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Operating temperature (T-T) | 10 - 35 °C |
| Warranty | 3-Year Warranty |
| Weight | 22 kg |
| Dimensions | 444 mm x 615 mm x 87 mm |
Product Description
2U Storage Server for Enterprise Applications Mass Storage Capacity & Complete RAID Solution RS520-E6/RS8 has eight 3.5” hot-swap HDD bays to support SATA or SAS HDDs, meeting the demand of mass storage. The hot-swap design is reliable for 7x24 non-stop services. With ASUS optional PIKE upgrade kit, the server is able to provide flexible RAID choices. Flexible I/O Expansion Choices Catering to different demands of users, RS520-E6/RS8 is equipped with three PCI-Express expansion slots, two of which support Full-Height/Full-Length PCI-E G2 card. High Availability for Mission Critical Enterprise applications The RS520-E6/RS8 is built with hot-swap 1+1 redundant power supply to provide better reliability and eliminate the risk of downtime caused by power supply. In addition, the HDD bays are also hot-swappable for easy maintenance. Power-saving Solution With 80+ PFC high efficiency power supply, RS520-E6/RS8 is able to reduce the power loss and power consumption, and save power bill for users, which can be a large deal for 7x24 hour non-stop servers. The EPU (Energy Processing Unit) engine will provide optimal and effective CPU power management. Virtualization Support The onboard vertical USB connector for VMware ESXi supports virtualization application in RS520-E6/RS8. Virtualization not only improves the server’s utility rate and manageability, but also reduces TCO for customers. Real-time and Out-of-band Server Management The optional ASMB4-iKVM module offers real-time web-based management and remote system control (KVM-over-IP) with a single local computer.
Key Features
ASUS RS520-E6/RS8. Motherboard chipset: Intel® 5500, Processor socket: Socket B (LGA 1366), Processor family: Intel. Supported storage drive interfaces: Serial ATA II, RAID levels: 0, 1. Maximum graphics card memory: 8 MB. LAN controller: Intel® 82574L. Compatible operating systems: - Windows Server 2008 Enterprise 32/64-bit, - Windows Server 2003 Enterprise R2 SP2 32/64-bit, -...
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS520-E6/RS8 Intel® 5500 Socket B (LGA 1366) Rack (2U) (90S3YA000U110UET) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS520-E6/RS8 Intel® 5500 Socket B (LGA 1366) Rack (2U) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS520-E6/RS8 Intel® 5500 Socket B (LGA 1366) Rack (2U) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90S3YA000U110UET.
