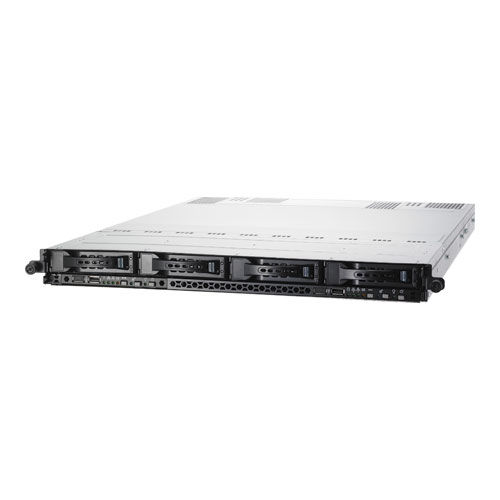

ASUS RS704DA-E6/PS4 AMD SR5670 Socket G34 Rack (1U) Silver
Brand: ASUS · SKU: 90S-S69001UEZ · MPN: 90S-S69001UEZ · Category: Components
ASUS RS704DA-E6/PS4, AMD SR5670, Socket G34, AMD, 6.4 GT/s, AMD Opteron, 1GB, 2GB, 4GB, 8GB
Specifications
| Depth | 444 mm |
|---|---|
| Width | 712 mm |
| Height | 43.6 mm |
| Safety | CE, EN55022, EEC |
| Weight | 18 kg |
| RAID levels | 0, 1 |
| Chassis type | Rack (1U) |
| Power supply | 1400 W |
| Graphics card | AST2050 |
| LAN controller | Intel® 82574L |
| Product colour | Silver |
| System bus rate | 6.4 GT/s |
| Processor family | AMD |
| Processor socket | Socket G34 |
| Hot-swap HDD bays | Yes |
| Storage controller | AMD SP5100 |
| Motherboard chipset | AMD SR5670 |
| Graphics card family | ASPEED |
| Maximum RDIMM memory | 256 GB |
| Maximum UDIMM memory | 64 GB |
| Number of DIMM slots | 16 |
| PCI Express x16 slots | 2 |
| Serial ports quantity | 2 |
| USB 2.0 ports quantity | 6 |
| Warranty | 3-Year Warranty |
| Weight | 18 kg |
| Dimensions | 712 mm x 444 mm x 43.6 mm |
Product Description
Duo Nodes 1U Server with High Speed Interconnection for AMD G34 Solution The ASUS RS704DA-E6/PS4, with support of the latest AMD Opteron 6100 series processor, is a dual 2-way system capable of providing extreme performance for customers with 4-way, up to 48-core computing capabilities in a 1U environment. With a design that supports 4 hot swap 3.5” hot-swap HDD bays, users can enjoy exceptional space-savings while utilizing the normal form factor. In addition, the RS704DA-E6/PS4 has an Infiniband QDR onboard, delivering high speed interconnection for HPC applications. Duo Nodes in 1U with High Computing Density The RS704DA-E6/PS4 is designed with dual DP system in a 1U chassis, 16 DIMM slots and up to 256GB memory capacity per node to deliver high density computing. In this way, there will be up to 84 nodes or up to 2016 computing cores in a 42U cabinet, providing extreme computing density. Extreme System Power Efficiency The RS704DA-E6/PS4 is equipped with 1400W 80 plus (Gold) power supply module to improve power efficiency, reduce power loss and save power bill. Furthermore, the intelligent fan control and independent air flow in each node optimizes the system thermal solution. High Speed Interconnection for HPC Through a QFSP port at the rear panel, the RS704DA-E6/PS4 is able to deliver high speed interconnection (40Gbps) for HPC applications from a built-in Infiniband QDR chipset. Real-time and Out-of-band Server Management The optional ASMB4-iKVM module offers real-time web-based management and remote system control (KVM-over-IP) to the system from any local computer anywhere, anytime. Designed for Virtualization Virtualization provides central management, reduces power consumption, cost for cooling and management effort for users. The RS704DA-E6/PS4 is able to provide excellent virtualization applications with VMWare. The onboard vertical USB connector is designed for integrated hypervisor for easy deployment, allowing the full use of system resources and reducing TCO and IT expenses.
Key Features
ASUS RS704DA-E6/PS4. Motherboard chipset: AMD SR5670, Processor socket: Socket G34, Processor family: AMD. Supported DIMM module capacities: 1GB, 2GB, 4GB, 8GB, Maximum RDIMM memory: 256 GB, Maximum UDIMM memory: 64 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA II, Storage controller: AMD SP5100. Maximum graphics card memory: 8 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS704DA-E6/PS4 AMD SR5670 Socket G34 Rack (1U) Silver (90S-S69001UEZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS704DA-E6/PS4 AMD SR5670 Socket G34 Rack (1U) Silver includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS704DA-E6/PS4 AMD SR5670 Socket G34 Rack (1U) Silver compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90S-S69001UEZ.
