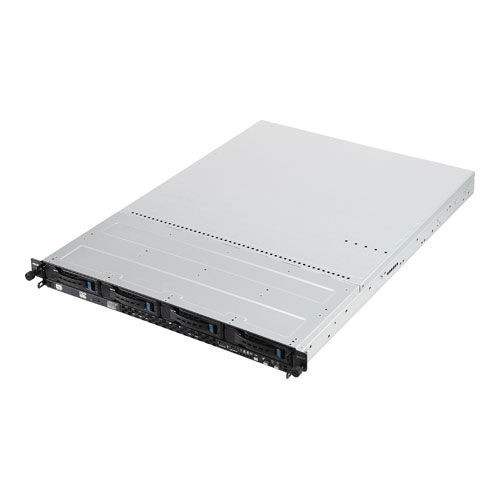

ASUS RS700-X7/PS4 Intel® C602 LGA 2011 (Socket R) Rack (1U)
Brand: ASUS · SKU: 90S82D0000CA00UET · MPN: 90S82D0000CA00UET · Category: Components
ASUS RS700-X7/PS4, Intel® C602, LGA 2011 (Socket R), Intel, Intel® Xeon®, E5-2600, DDR3-SDRAM
Specifications
| Depth | 615 mm |
|---|---|
| Width | 444 mm |
| Height | 43.4 mm |
| Safety | CE, EN55022 |
| Weight | 15 kg |
| RAID levels | 0, 1, 5, 10 |
| Chassis type | Rack (1U) |
| Ethernet LAN | Yes |
| Power supply | 600 W |
| Graphics card | AST2300 |
| LAN controller | Intel® 82574L |
| Processor family | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Hot-swap HDD bays | Yes |
| Intel Xeon series | E5-2600 |
| Motherboard chipset | Intel® C602 |
| PS/2 ports quantity | 2 |
| Graphics card family | Aspeed |
| Maximum RDIMM memory | 384 GB |
| Maximum UDIMM memory | 96 GB |
| Number of DIMM slots | 12 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 2 |
| Warranty | 3-Year Warranty |
| Weight | 15 kg |
| Dimensions | 444 mm x 615 mm x 43.4 mm |
Product Description
Optimized cooling design Front-parallel CPU and memory placement guides smooth airflow throughout the chassis, while intelligent fan control technology adjusts fan speeds automatically based on system load. Flexible 2+1 expansion in a 1U chassis Despite 1U space requirements, the RS700-X7/PS4 manages to offer two PCI Express 3.0 x16 slots and one extra slot dedicated to exclusive ASUS PIKE cards, helping users with better server integration. Up to 92% power efficiency Maintaining the ASUS commitment to environmental protection, the RS700-X7/PS4 is equipped with a 600W 80 PLUS Gold power supply to reduce power loss and consumption. As such, it lowers power bills to save users money with up to 92% power efficiency. Innovative storage and RAID The RS700-X7/PS4 supports optional ASUS PIKE RAID upgrade kits. With a PIKE card, users can integrate server functions into data security, and upgrade from SATA to SAS storage without occupying the two PCI Express 3.0 slots. This gives users better flexibility through more storage options. High availability and reliability The RS700-X7/PS4 uses hot-swap features for high availability and easy upgrades, allowing users to replace drive modules with no hassles. Additionally, the proprietary ASUS anti-vibration fan module cage provides superior cooling with no reliability compromise. Quad LAN support Four LAN ports provide high networking bandwidth with load balance and fault tolerance functions. The server supports ASUS and most other available 10Gb/s LAN cards for extra-fast networking. Outstanding computing capabilities With support for new Intel® Sandy Bridge Socket R/LGA 2011 and 12 DIMM memory slots, the RS700-X7/PS4 provides improved computing power for customers that demand an extensive range of applications. Onboard ASMB6-iKVM remote management upgrade kit The exclusive ASUS ASMB6-iKVM enables dashboard system health monitoring, remote power on/off control, virtual media over LAN, automatic video recording, and network bonding support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly graphical user interface.
Key Features
ASUS RS700-X7/PS4. Motherboard chipset: Intel® C602, Processor socket: LGA 2011 (Socket R), Processor family: Intel. Supported memory types: DDR3-SDRAM, Maximum internal memory: 384 GB, Maximum RDIMM memory: 384 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial Attached SCSI (SAS), Serial ATA II, Serial ATA III, RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 16 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® 82574L
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS700-X7/PS4 Intel® C602 LGA 2011 (Socket R) Rack (1U) (90S82D0000CA00UET) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS700-X7/PS4 Intel® C602 LGA 2011 (Socket R) Rack (1U) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS700-X7/PS4 Intel® C602 LGA 2011 (Socket R) Rack (1U) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90S82D0000CA00UET.
