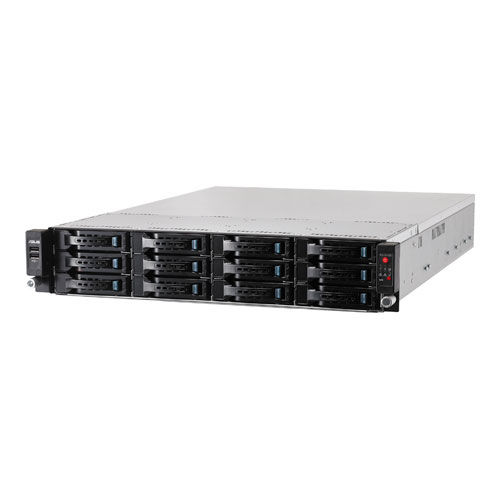

ASUS RS720-E6/RS12 Intel® 5520 Socket B (LGA 1366) Rack (2U) Black
Brand: ASUS · SKU: 90S-S5Z001CEZ · MPN: 90S-S5Z001CEZ · Category: Components
ASUS RS720-E6/RS12, Intel® 5520, Socket B (LGA 1366), Intel, Serial ATA II, 0, 1, 5, 10, 8 MB
Specifications
| ECC | Yes |
|---|---|
| Depth | 615 mm |
| Width | 444 mm |
| Height | 87 mm |
| Safety | CE, EN55022, TUV |
| Weight | 25 kg |
| PCI slots | 1 |
| RAID levels | 0, 1, 5, 10 |
| Chassis type | Rack (2U) |
| Power supply | 770 W |
| LAN controller | Intel® 82576EB |
| Product colour | Black |
| Expansion slots | 1 x PIKE |
| AC input voltage | 100 - 240 V |
| Bundled software | ASWM2.0 |
| Processor family | Intel |
| Processor socket | Socket B (LGA 1366) |
| AC input frequency | 50 - 60 Hz |
| Motherboard chipset | Intel® 5520 |
| PS/2 ports quantity | 2 |
| Number of DIMM slots | 18 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 3 |
| Serial ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Weight | 25 kg |
| Dimensions | 444 mm x 615 mm x 87 mm |
Product Description
Enterprise-Class 2U Server with Green Design Mass Storage capacity up to 12 x 3.5” HDDs RS720-E6/RS12 has twelve 3.5” hot-swap HDD bays to support SATA or SAS HDDs, meeting the demand of mass storage. The hot-swap design is reliable for 7x24 non-stop services. With ASUS optional PIKE upgrade kit, the server is able to provide flexible RAID choices. Extreme memory capacity up to 144 GB (RDIMM) RS720-E6/RS12 is equipped with 18 DDR3 memory DIMMS to support up to 144GB(RDIMM) high memory scalability for computing intensive application. This board will offer you highest memory capacity without source for proprietary chassis & riser solution. High Reliability with 1+1 770W Redundant Power Supply The RS720-E6/RS12 is built with hot-swap 1+1 redundant power supply to provide easy maintenance and highly reliable 7X24 non-stop services by eliminating the risk of maintenance downtime. Power-saving Solution For optimized energy efficiency, the RS720-E6/RS12 is built with 80+ PFC high power efficiency power supply and EPU (Energy Processing Unit) engine to lower both power loss and power consumption for effective power use and bill saving. The EPU (Energy Processing Unit) engine provides optimal and effective CPU power management. Optimized for Virtualization, VMDq Supported On-board LAN supports Intel VMDq Technology which offloads CPU utilization and decreases latency to improve throughput for virtual machines. It benefits users by enhancing performance in virtualization environments. The onboard vertical USB connector for VMware ESXi supports virtualization application in RS720-E6/RS12. Virtualization not only improves the server’s utility rate and manageability, but also reduces TCO for customers. Optional ASMB4-iKVM Upgrade Kit for Easy Troubleshooting The optional ASMB4-iKVM provides offers real-time web-based management and remote system control (KVM-over-IP) with a single local computer based on BIOS-level by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime. High Quality Components for Greater System Reliability ASUS is the first company in the market to phase in 6-Phase CPU power, 3-Phase memory power and All Ultra Long Life Solid capacitors on system. These features deliver highly efficient and reliable operations.
Key Features
ASUS RS720-E6/RS12. Motherboard chipset: Intel® 5520, Processor socket: Socket B (LGA 1366), Processor family: Intel. Supported storage drive interfaces: Serial ATA II, RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 8 MB. LAN controller: Intel® 82576EB. Compatible operating systems: - Windows Server 2008 Enterprise 32/64-bit - Windows Server 2003 R2 Enterprise (32/64 bit) -...
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS720-E6/RS12 Intel® 5520 Socket B (LGA 1366) Rack (2U) Black (90S-S5Z001CEZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS720-E6/RS12 Intel® 5520 Socket B (LGA 1366) Rack (2U) Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS720-E6/RS12 Intel® 5520 Socket B (LGA 1366) Rack (2U) Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90S-S5Z001CEZ.
