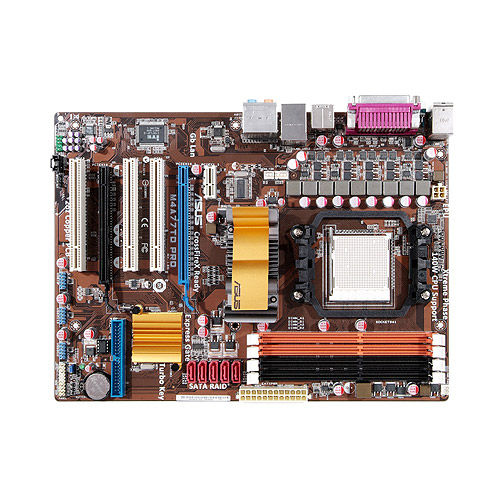

ASUS M4A77TD PRO/U3S6 AMD 770 Socket AM3 ATX
Brand: ASUS · SKU: 90-MIB9S5-G0EAY00Z · MPN: 90-MIB9S5-G0EAY00Z · Category: Components
ASUS M4A77TD PRO/U3S6, AMD, Socket AM3, 16 GB, ECC & Non-ECC, Realtek RTL8112L, PCIe Gb LAN. ASUS M4A77TD PRO/U3S6 AMD 770 Socket AM3 ATX (part number 90-MIB9S5-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, audio chip VIA VT1708S, acpi version 2.0a, lan controller Realtek RTL8112L, cd/aux audio in Yes, s/pdif out port Yes, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| Audio chip | VIA VT1708S |
| ACPI version | 2.0a |
| LAN controller | Realtek RTL8112L |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 6 |
| Motherboard chipset | AMD 770 |
| Networking features | PCIe Gb LAN |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 2 |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
AMD Socket AM3 ; Phenom II/Athlon II/Sempro 100 Series Processors This motherboard supports AMD Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process. AMD 770 chipset AMD 770 Chipset is designed to support up to 5200MT/s HyperTransport 3.0 (HT 3.0) interface speed and PCI Express 2.0 x16 graphics. It is optimized with AMD’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. Dual-Channel DDR3 1800(O.C.) This motherboard supports DDR3 1800(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.
Key Features
ASUS M4A77TD PRO/U3S6. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. LAN controller: Realtek RTL8112L, Networking features: PCIe Gb LAN. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels. BIOS memory size: 64 Mbit, ACPI version: 2.0a
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M4A77TD PRO/U3S6 AMD 770 Socket AM3 ATX (90-MIB9S5-G0EAY00Z) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M4A77TD PRO/U3S6 AMD 770 Socket AM3 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M4A77TD PRO/U3S6 AMD 770 Socket AM3 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIB9S5-G0EAY00Z.
