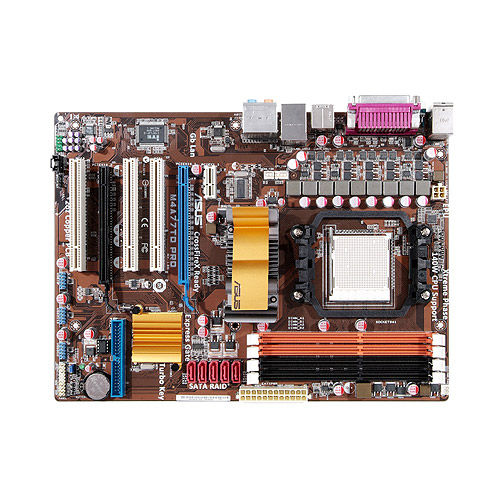

ASUS M4A77TD PRO/U3S6 motherboard AMD 770 Socket AM3 ATX
Brand: ASUS · SKU: M4A77TD PRO/U3S6 · MPN: M4A77TD PRO/U3S6 · Category: Components
ASUS M4A77TD PRO/U3S6, AMD, Socket AM3, 16 GB, ECC & Non-ECC, 0, 1, Realtek RTL8112L. ASUS M4A77TD PRO/U3S6 motherboard AMD 770 Socket AM3 ATX (part number M4A77TD PRO/U3S6) is an enterprise components product available from Server Tech Central. Key specifications include depth 224 mm, width 305 mm, bios type AMI, pci slots 3, audio chip VIA VT1708S, raid levels 0, 1, lan controller Realtek RTL8112L, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 224 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| PCI slots | 3 |
| Audio chip | VIA VT1708S |
| RAID levels | 0, 1 |
| LAN controller | Realtek RTL8112L |
| CD/AUX audio in | Yes |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD 770 |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 224 mm |
Product Description
AMD Socket AM3 ; Phenom II/Athlon II/Sempro 100 Series Processors This motherboard supports AMD Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process. AMD 770 chipset AMD 770 Chipset is designed to support up to 5200MT/s HyperTransport 3.0 (HT 3.0) interface speed and PCI Express 2.0 x16 graphics. It is optimized with AMD’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. Dual-Channel DDR3 1800(O.C.) This motherboard supports DDR3 1800(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.
Key Features
ASUS M4A77TD PRO/U3S6. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1. LAN controller: Realtek RTL8112L, Networking features: 10/100/1000 Mbps. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels
