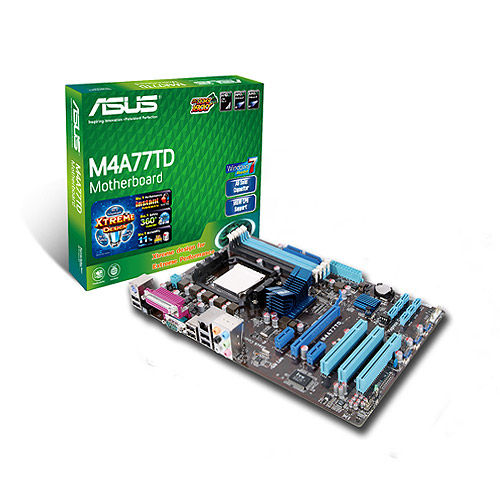

ASUS M4A77TD motherboard AMD 770 Socket AM3 ATX
Brand: ASUS · SKU: M4A77TD · MPN: M4A77TD · Category: Components
ASUS M4A77TD, AMD, Socket AM3, 16 GB, ECC & Non-ECC, 0, 1, 10, JBOD, Realtek RTL8112L. ASUS M4A77TD motherboard AMD 770 Socket AM3 ATX (part number M4A77TD) is an enterprise components product available from Server Tech Central. Key specifications include depth 213 mm, width 305 mm, bios type AMI, i/o ports 1 x LPT, pci slots 3, audio chip VIA VT1708S, raid levels 0, 1, 10, JBOD, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 213 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| I/O ports | 1 x LPT |
| PCI slots | 3 |
| Audio chip | VIA VT1708S |
| RAID levels | 0, 1, 10, JBOD |
| Microphone in | Yes |
| LAN controller | Realtek RTL8112L |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD 770 |
| Networking features | Gigabit LAN |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 213 mm |
Product Description
AMD® Phenom™ II/Athlon™ II/ Sempron™ 100 Series CPU support This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. AMD 770 chipset AMD 770 Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. HyperTransport 3.0 Support Provides 2.6 times more bandwidth than HT1.0 that radically improves system efficiency for a smoother, faster computing environment. ASUS EPU The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage to save power and money! Dual-Channel DDR3 1800(O.C.) This motherboard supports DDR3 1800(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. PCIe 2.0 support This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. Turbo Key ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!! Gigabit LAN The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. ASUS Express Gate Instant Internet Access without Entering Windows! Taking only 5 seconds to bootup, Express Gate is the one-stop gateway to instant fun! It´s a unique motherboard built-in OS. You can utilize the most popular Instant Messengers (IM) like MSN, Skype, Google talk, QQ, and Yahoo! Messenger to keep in touch with friends, or quickly check on the weather and e-mails just before leaving your house. What´s more, the user-friendly picture manager lets you view your pictures without entering Windows at anytime! * The actual boot time is subject to hardware configurations and product models. High Definition Audio Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. ASUS EZ Flash2 With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required. ASUS Q-Fan ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation. ASUS CrashFree BIOS3 The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. MyLogo2 Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again. S/PDIF-out on Back I/O Port This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS M4A77TD. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 10, JBOD. LAN controller: Realtek RTL8112L, Networking features: Gigabit LAN. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M4A77TD motherboard AMD 770 Socket AM3 ATX (M4A77TD) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M4A77TD motherboard AMD 770 Socket AM3 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M4A77TD motherboard AMD 770 Socket AM3 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the M4A77TD.
