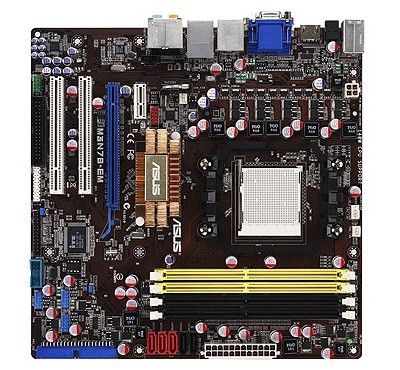

ASUS M3N78-EM Socket AM2 micro ATX
Brand: ASUS · SKU: 90-MIB5L0-G0EAY00Z · MPN: 90-MIB5L0-G0EAY00Z · Category: Components
ASUS M3N78-EM, AMD, Socket AM2, 8 GB, ECC & Non-ECC, 0, 1, 0+1, 5, JBOD, Gigabit Ethernet. ASUS M3N78-EM Socket AM2 micro ATX (part number 90-MIB5L0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, pci slots 2, audio chip Realtek ALC120, raid levels 0, 1, 0+1, 5, JBOD, microphone in Yes, trial software Anti-Virus, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC120 |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| Microphone in | Yes |
| Trial software | Anti-Virus |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | Express Gate ASUS PC Probe II ASUS Update |
| Drivers included | Yes |
| Processor socket | Socket AM2 |
| Special features | ASUS MyLogo 2 |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 6 |
| Graphics controller | NVIDIA GeForce 8 |
| HDMI ports quantity | 1 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| DVI-D ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
AMD® Socket AM2+ Phenom™ FX / Phenom™ / Athlon™ Support This motherboard supports AMD AMD® Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. AMD® Socket AM2 Athlon™/Sempron™ CPU Support This motherboard supports AMD® Socket AM2 Athlon™/Sempron™ processors. It features 2000/1600 MT/s HyperTransport™-based system bus, dual-channel un-buffered DDR2 800 memory support, and AMD® Cool 'n' Quiet™ Technology. Native DDR2 1066 This motherboard supports native DDR2 1066. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. HyperTransport 3.0 HyperTransport™ 3.0 technology provides 2.6 times more bandwidth than HyperTransport™ 1.0, radically improving system efficiency to create a smoother, faster computing environment. NVIDIA GeForce® 8300 NVIDIA® GeForce 8300 offers the latest support of Hybrid SLI Technology, DirectX® 10 graphics features, HD video playback with HDMI/DVI output. It also supports HyperTransport™ 3.0 interface, PCI Express™ 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMD´s latest AM2+ and multi-core CPUs to provide excellent system performance. PCIe 2.0 support This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. DVI Support DVI (Digital Visual Interface) provides high visual quality of digital display devices such as LCD monitor. The interface of this motherboard supports dual VGA output both DVI-D/HDMI and RGB. C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS M3N78-EM. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1, 5, JBOD. Networking features: Gigabit Ethernet. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC120
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M3N78-EM Socket AM2 micro ATX (90-MIB5L0-G0EAY00Z) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M3N78-EM Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M3N78-EM Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIB5L0-G0EAY00Z.
