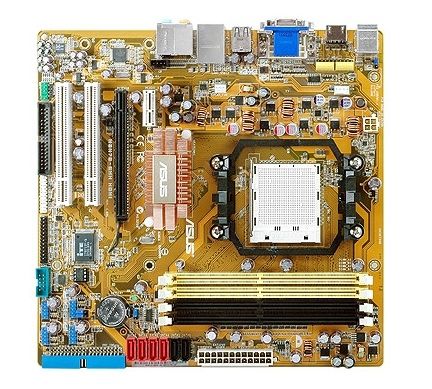

ASUS M3N78-EMH HDMI motherboard Socket AM2 micro ATX
Brand: ASUS · SKU: M3N78-EMH HDMI · MPN: M3N78-EMH HDMI · Category: Components
ASUS M3N78-EMH HDMI, AMD, Socket AM2, 8 GB, ECC & Non-ECC, 0, 1, 5, 10, JBOD, 256 MB. ASUS M3N78-EMH HDMI motherboard Socket AM2 micro ATX (part number M3N78-EMH HDMI) is an enterprise components product available from Server Tech Central. Key specifications include depth 237 mm, width 244 mm, audio chip Realtek ALC883, raid levels 0, 1, 5, 10, JBOD, cd/aux audio in Yes, expansion slots 1 x PCIe x16 1 x PCIe x1 2 x PCI, bios memory size 64 Mbit, processor socket Socket AM2. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 237 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC883 |
| RAID levels | 0, 1, 5, 10, JBOD |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCIe x16 1 x PCIe x1 2 x PCI |
| BIOS memory size | 64 Mbit |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 8 |
| HDMI ports quantity | 1 |
| Networking features | Gigabit MAC |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | micro ATX |
| Number of COM connectors | 1 |
| Number of SATA connectors | 6 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 237 mm |
Product Description
Supports AMD Socket AM2+/AM2 for Phenom FX/Phenom/ Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron / AM2+ The motherboard supports AMD socket AM2+/AM2 for Phenom FX/Phenom/Athlon 64/ Sempron/Athlon 64 X2/ Athlon 64 FX/ processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 5200 MT/s HyperTransport3.0 Bus, dual-channel un-buffered DDR2 1066 memory support and AMD Cool ´n´ Quiet! Technology. Hybrid SLI Hybrid SLI™ technology is a unique hybrid multi-GPU technology built upon NVIDIA. Hybrid SLI technology today includes two primary features: GeForce Boost and HybridPower™. GeForece Boost turbo-charges performance of NVIDIA discrete graphics cards when combined with this series motherboard GPUs. HybridPower™ unleashes graphics performance when needed and enables low-power operation when performance is not needed. You can switch from the discrete GeForce GPU(s) to the motherboard GPU for a quiet, low power PC experience. HyperTransport 3.0 Support Provides 2.6 times more bandwidth than HT1.0 that radically improves system efficiency for a smoother, faster computing environment. AMD Cool ´n´ Quiet! Technology M3N78-EMH HDMI supports AMD Cool ´n´ Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. 64-bit CPU support 64-bit computing, the next generation technology to replace the current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture. NVIDIA® GeForce™ 8200 NVIDIA GeForce 8200 offers the latest support of Hybrid SLI Technology, DirectX10 graphics features, HD video playback with HDMI/DVI output. It also supports HyperTransport™ 3.0 interface, PCI Express™ 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMD’s latest AM2+ and multi-core CPUs to provide excellent system performance. HDMI™ Interface HDMI (High-Definition Multimedia Interface) is the first and only industry-supported, uncompressed, all digital audio and video interface via a single cable and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc and other protected content. DVI Interface DVI (Digital Visual Interface) provides high visual quality of digital display devices such as LCD monitors. NVIDIA® PureVideo™ HD Technology PureVideo HD technology is the core of a complete Blu-ray or HD DVD movie solution, featuring hardware acceleration, post-processing, HDCP circuitry, and integration with leading HD movie software players. Dual DDR2 1066 This motherboard is the first AMD® platform with native DDR2 1066 support. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming. Serial ATA 3Gb/s This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. The onboard SB700 southbridge allows RAID 0, RAID 1,RAID 10 configurations for six SATA connectors. Gigabit LAN The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. High Definition Audio Enjoy high-quality sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-detect feature,which automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, meaning there will be no more confusion of Line-in, Line-out and Mic jacks. ASUS Q-Fan ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.
Key Features
ASUS M3N78-EMH HDMI. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 5, 10, JBOD. Maximum graphics card memory: 256 MB. Networking features: Gigabit MAC
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M3N78-EMH HDMI motherboard Socket AM2 micro ATX (M3N78-EMH HDMI) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M3N78-EMH HDMI motherboard Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M3N78-EMH HDMI motherboard Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the M3N78-EMH HDMI.
