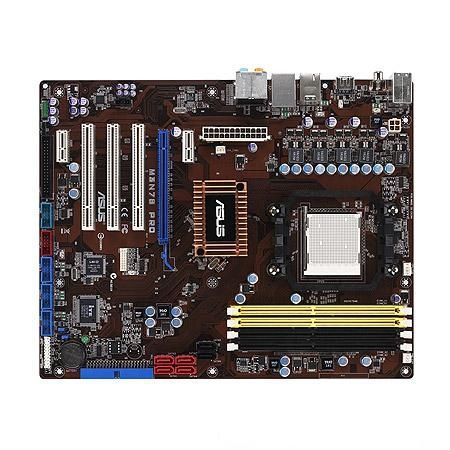

ASUS M3N78 PRO motherboard Socket AM2 ATX
Brand: ASUS · SKU: M3N78 PRO · MPN: M3N78 PRO · Category: Components
ASUS M3N78 PRO, AMD, Socket AM2, 8 GB, ECC & Non-ECC, 0, 1, 0+1, 5, JBOD, Realtek RTL8211CL. ASUS M3N78 PRO motherboard Socket AM2 ATX (part number M3N78 PRO) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, i/o ports 1 x VGA connector, pci slots 3, audio chip Realtek ALC1200, raid levels 0, 1, 0+1, 5, JBOD, microphone in Yes, lan controller Realtek RTL8211CL. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| I/O ports | 1 x VGA connector |
| PCI slots | 3 |
| Audio chip | Realtek ALC1200 |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| Microphone in | Yes |
| LAN controller | Realtek RTL8211CL |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | Express Gate Lite, ASUS PC Probe II ASUS Update, ASUS AI Suite, Anti-virus software (OEM) |
| Drivers included | Yes |
| Processor socket | Socket AM2 |
| Special features | - D-Sub module - HDMI to DVI |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Graphics controller | NVIDIA GeForce 8 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
AMD® Socket AM2+ Phenom™ FX / Phenom™ / Athlon™ / Sempron™ Support This motherboard supports AMD AMD® Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron Support This motherboard supports AMD® Socket AM2 single-core Athlon™ 64 / Sempron™ and dual-core Athlon™ 64 X2 / Athlon™ 64 FX processors with 2MB / 1MB / 512KB L2 cache based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport™-based system bus, dual-channel un-buffered DDR2 800 memory support, and AMD® Cool ´n´ Quiet™ Technology. Native DDR2 1066 This motherboard is the first AMD® platform with native DDR2 1066 support. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. NVIDIA GeForce® 8300 NVIDIA® GeForce 8300 offers the latest support of Hybrid SLI Technology, DirectX® 10 graphics features, HD video playback with HDMI/DVI output. It also supports HyperTransport™ 3.0 interface, PCI Express™ 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMD’s latest AM2+ and multi-core CPUs to provide excellent system performance. PCIe 2.0 support This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. Hybrid Hybrid SLI Support GeForce® Boost—Boosted Performance with Onboard GPU and Discrete Graphics Card HybridPower™—Intelligent Graphics Power-Savings and Quiet Operations Hybrid SLI™ technology is a unique hybrid multi-GPU technology. It includes two primary features: GeForce Boost and HybridPower™. GeForce Boost turbo-charges performance of discrete graphics cards when combined with the motherboard GPUs. HybridPower™ unleashes graphics performance for demanding 3D applications and enables low-power operation for everyday computing needs. * GeForce®(R) Boost and HybridPower™ are on select GeForce®(R) GPUs. Visit www.nvidia.com/hybridsli for more information. HDMI Support Enjoy Full HD 1080p Multimedia Home-Theater Entertainment High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience. HDMI/DVI/RGB Support Flexible Graphics Alternatives With bundled HDMI to DVI conversion adapter, this motherboard can support both DVI and HDMI output. DVI (Digital Visual Interface) provides high quality visuals for digital display devices like LCD monitors. The interface of this motherboard supports digital HDMI/DVI and analog D-Sub standards. 4+1 Phase Power Design Longer Life & Higher Efficiency! Unleashes ultimate memory performances with independent power to core components, while providing fast transient response and stability for the CPU under heavy loading or overclocking modes. AI Gear 2 AI Gear 2 allows you to choose from profiles to adjust CPU frequency and vCore voltage, minimizing system noise and saving CPU power consumption at most. You can real-time change the mode under operating system to suit your needs. AI Nap With AI Nap, the system can continue running at minimum power and noise when you are temporarily away. To wake the system and return to the OS environment, simply click the mouse or press a key. ASUS Q-Fan 2 Adjusts both CPU fan and chassis fan speeds according to system loading ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. Express Gate™ 5 Sec from Bootup to Online Taking only 5 seconds to bootup, Express Gate is the one-stop gateway to instant fun! It´s a unique motherboard built-in OS. You can utilize the most popular Instant Messengers (IM) like MSN, Skype, Google talk, QQ, and Yahoo! Messenger to keep in touch with friends, or quickly check on the weather and e-mails just before leaving your house. What´s more, the user-friendly picture manager lets you view your pictures without entering Windows at anytime! Q-Shield Make Connection Quick and Accurate! The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate. Q-Connector Make Connection Quick and Accurate! The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, mak
Key Features
ASUS M3N78 PRO. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1, 5, JBOD. LAN controller: Realtek RTL8211CL. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC1200
