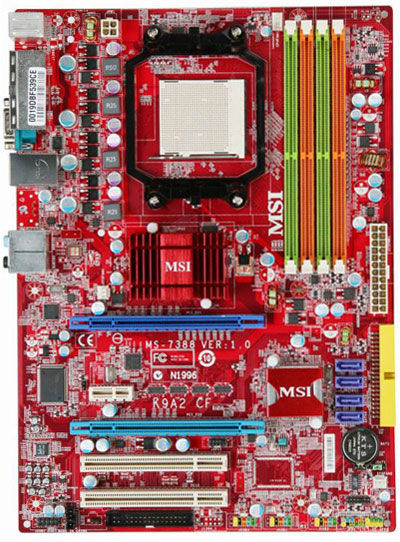

MSI K9A2 CF AMD 790X Socket AM2 ATX
Brand: MSI · SKU: 7388-010R · MPN: 7388-010R · Category: Components
MSI K9A2 CF, AMD, Socket AM2, 2600 MHz, 8 GB, 0, 1, 0+1, Realtek RTL8111B
Specifications
| Depth | 220 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC888 |
| RAID levels | 0, 1, 0+1 |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111B |
| CD/AUX audio in | Yes |
| Expansion slots | 2xPCI-E (x16), 1xPCI-E (x1), 2xPCI |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 6 |
| Motherboard chipset | AMD 790X |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 220 mm |
Product Description
FSB - HyperTransport 3.0 supporting speed up to 2600MHz. - AM2 CPU supports HyperTransport 1.0. - AM2+ CPU supports HyperTransport 3.0. Chipset - AMD® 790X and SB600 Chipset. Main Memory - Supports Dual DDR II 533/667/800/1066(only for AM2+) - 4 DDRII DIMMs (240pin / 1.8V) - Supports a maximum memory size up to 8GB. Slots - 1 mazarine PCI Express x16 slot with x16 operation (PCI Express Bus SPEC V1.0a compliant) - 1 light-blue PCI Express x16 slot with x8 operation (PCI Express Bus SPEC V2.0 compliant) - When 2 PCI Express x16 slots are all installed, the PCIE x 16 lanes will auto arrange form x16/ x0 to x8/ x8. Do not use the light-blue slot when only one PCI Express x16 card is installed. - 1 PCI Express x1 slots - 2 PCI slots, support 3.3V/ 5V PCI bus Interface. On-Board IDE - One IDE port by AMD® SB600. - Supports Ultra DMA 66/100/133 mode. - Supports PIO, Bus Master operation mode. - Can connect up to two IDE devices. On-Board SATA - 4 SATA II (1~4) ports by AMD® SB600. - 1 eSATA port by Silicon Image® Sil3531. - Supports storage and data transfers at up to 300 MB/s. RAID Function - SATA II 1~4 support RAID 0, 1 and 0+1 mode by AMD® SB600. Audio - Chipset integrated by Realtek® ALC888 - Flexible 8-channel audio with jack sensing - Compliant with Azalia 1.0 Spec LAN - Realtek PCI-E GbLAN controller 8111B. - Integrated Fast Ethernet MAC and PHY in single chip. - Supports 10Mb/s, 100Mb/s and 1000Mb/s. - Compliance with PCI-Express Bus specification v1.0a.
Key Features
MSI K9A2 CF. Processor manufacturer: AMD, Processor socket: Socket AM2, Processor system buses supported: 2600 MHz. Maximum internal memory: 8 GB. RAID levels: 0, 1, 0+1. LAN controller: Realtek RTL8111B. Motherboard form factor: ATX, Motherboard chipset: AMD 790X, Audio output channels: 7.1 channels
