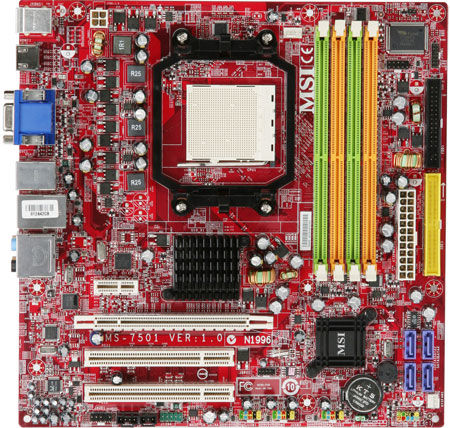

MSI K9A2GM-FIH AMD 780G Socket AM2 micro ATX
Brand: MSI · SKU: 7501-02S · MPN: 7501-02S · Category: Components
MSI K9A2GM-FIH, AMD, Socket AM2, AMD Phenom, 8 GB, 0, 1, 0+1, Realtek RTL8111C
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC888 |
| RAID levels | 0, 1, 0+1 |
| LAN controller | Realtek RTL8111C |
| CD/AUX audio in | Yes |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD 780G |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | micro ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
CPU - AMD Phenom/Athlon/Sempron CPU. Hyper Transport Bus - HyperTransport 3.0 supporting speed up to 5200MT/s. - AM2 CPU supports HyperTransport 1.0/2.0. - AM2+ CPU supports HyperTransport 3.0. Chipset - AMD 780G and SB700 Chipset Main Memory - Supports Dual DDR2 533/667/800/1066. - 4 DDR2 DIMMs (240pin / 1.8V). - Supports a maximum memory size up to 8GB. Slots - 1 PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant). - 1 PCI Express x1 slot. - 2 PCI slots, support 3.3V/ 5V PCI bus Interface. On-Board IDE - One IDE port by AMD SB700. - Supports Ultra DMA 66/100/133 mode. - Supports PIO, Bus Master operation mode. - Can connect up to two IDE devices. On-Board SATA - 4 SATA II (1-4) ports by AMD SB700. - Supports storage and data transfers at up to 3Gb/s. RAID Function - SATA II 1-4 support RAID 0, 1 and 0+1 mode by AMD SB700. Audio - Chipset integrated by Realtek ALC888. - Flexible 8-channel audio with jack sensing. - Compliant with Azalia 1.0 Spec. LAN - Realtek PCI-E GbLAN controller 8111C. - Integrated Fast Ethernet MAC and PHY in single chip. - Supports 10Mb/s, 100Mb/s and 1000Mb/s. - Compliance with PCI-Express Bus specification v1.0a. IEEE1394 / FireWire - Chipset integrated by JMicron 381. - Transfer rate is up to 400Mbps.
Key Features
MSI K9A2GM-FIH. Processor manufacturer: AMD, Processor socket: Socket AM2, Compatible processor series: AMD Phenom. Maximum internal memory: 8 GB. RAID levels: 0, 1, 0+1. LAN controller: Realtek RTL8111C, Networking features: Gigabit Ethernet. Motherboard form factor: micro ATX, Motherboard chipset: AMD 780G, Audio output channels: 7.1 channels
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI K9A2GM-FIH AMD 780G Socket AM2 micro ATX (7501-02S) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI K9A2GM-FIH AMD 780G Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI K9A2GM-FIH AMD 780G Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7501-02S.
