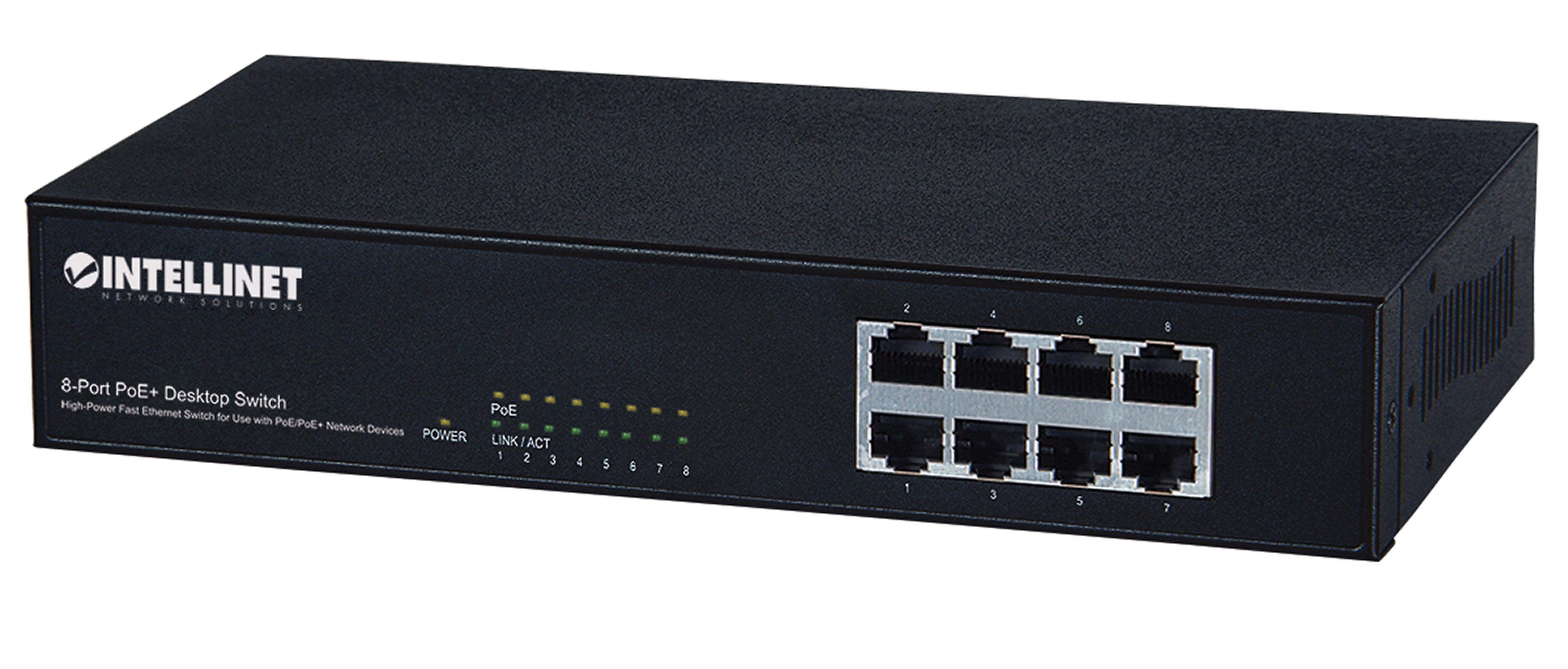

Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box
Brand: Intellinet · SKU: 560764 · MPN: 560764 · Category: Networking
Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE). Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box (part number 560764) is an enterprise switches product available from Server Tech Central. Key specifications include depth 179 mm, width 280 mm, height 44 mm, manual Yes, weight 1.5 kg, 10g support No, full duplex Yes, certification FCC Class A, CE. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 179 mm |
|---|---|
| Width | 280 mm |
| Height | 44 mm |
| Manual | Yes |
| Weight | 1.5 kg |
| 10G support | No |
| Full duplex | Yes |
| Certification | FCC Class A, CE |
| Auto MDI/MDI-X | Yes |
| LED indicators | Activity, Link, PoE, Power |
| Product colour | Black |
| Cables included | AC |
| Forwarding rate | 0.1488 Mpps |
| Power connector | DC-in jack |
| AC input voltage | 100 - 240 V |
| Housing material | Metal |
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
| AC input frequency | 50 - 60 Hz |
| Switching capacity | 1.6 Gbit/s |
| Flow control support | Yes |
| Networking standards | IEEE 802.1af, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Power consumption (max) | 150 W |
| Power over Ethernet (PoE) | Yes |
| Warranty | 3-Year Warranty |
| Weight | 1.5 kg |
| Dimensions | 280 mm x 179 mm x 44 mm |
Product Description
Save installation time and money with PoE. _x000D_ _x000D_ The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (560764) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (all of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. _x000D_ _x000D_ Power over Ethernet 802.3at _x000D_ The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_ _x000D_ _x000D_ * Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.
Key Features
Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2048 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.1af, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box (560764) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 560764.
