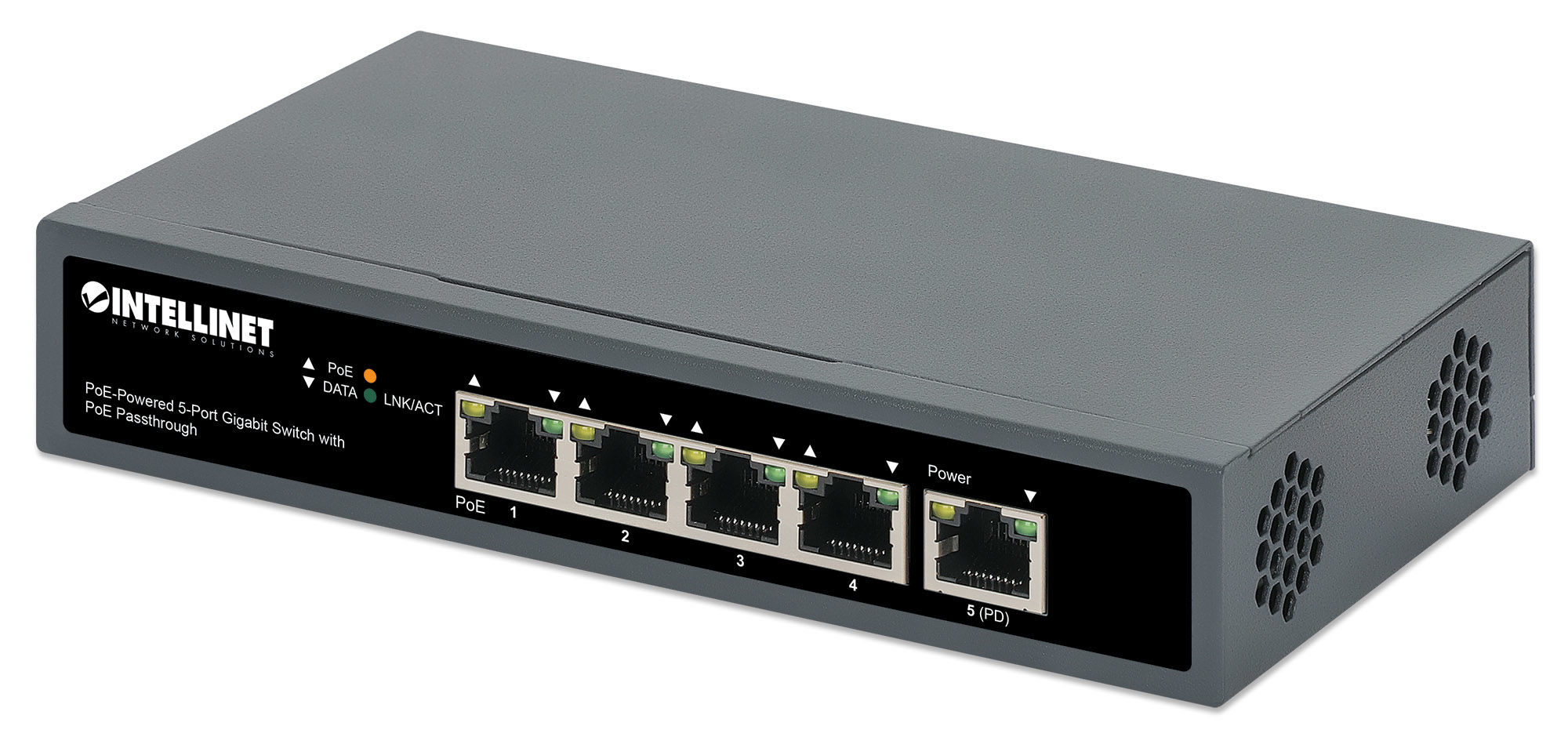

Intellinet 5-Port Gigabit Switch with PoE Passthrough, One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, Four PSE PoE ports, PoE Power Budget up to 65 W, IEEE 802.3at/af Compliant Output, Desktop, Wall-mount Option
Brand: Intellinet · SKU: ICI-561808 · MPN: 5-Port Gigabit Switch with PoE Passthrough, One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, Four PSE PoE ports, PoE Power Budget up to 65 W, IEEE 802.3at/af Compliant Output, Desktop, Wall-mount Option · Category: Networking
Intellinet 5-Port Gigabit Switch with PoE Passthrough, One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, Four PSE PoE ports, PoE Power Budget up to 65 W, IEEE 802.3at/af Compliant Output, Desktop, Wall-mount Option, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Specifications
| Depth | 93 mm |
|---|---|
| Width | 168 mm |
| Height | 32 mm |
| Manual | Yes |
| Weight | 400 g |
| 10G support | No |
| Full duplex | Yes |
| Power source | AC |
| Certification | FCC Class A, CE, RoHS, UKCA, NDAA |
| LED indicators | Activity, Link, PoE, Power |
| Package weight | 900 g |
| Wall mountable | Yes |
| Cables included | AC |
| AC input voltage | 100 - 240 V |
| Housing material | Metal |
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
| AC input frequency | 50 - 60 Hz |
| Switching capacity | 10 Gbit/s |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Packet buffer memory | 1 MB |
| Cable types supported | Cat3, Cat5, Cat5e |
| Warranty | 3-Year Warranty |
| Weight | 400 g |
| Dimensions | 168 mm x 93 mm x 32 mm |
Product Description
Get the most out each Power over Ethernet connection with this PoE passthrough switch The PoE-Powered 5-Port Gigabit Switch with PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps. Usable as a PoE extender Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices. Power over Ethernet 802.3bt Compliant This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input up to 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The Perfect Workgroup Switch When you connect the PD port (port 5) to a PoE injector or switch, this product uses some of the electric current to power itself and passes the available surplus power to up to four PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center. Eliminate Bottlenecks with Gigabit Speeds Equipped with five auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices. Wall-mount option For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.
Key Features
Intellinet 5-Port Gigabit Switch with PoE Passthrough, One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, Four PSE PoE ports, PoE Power Budget up to 65 W, IEEE 802.3at/af Compliant Output, Desktop, Wall-mount Option. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"Scaling a Core Aggregation Layer requires hardware that ensures packet integrity; the Intellinet ICI-561808 is design-optimized for this specific role in the network stack."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet 5-Port Gigabit Switch with PoE Passthrough, One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, Four PSE PoE ports, PoE Power Budget up to 65 W, IEEE 802.3at/af Compliant Output, Desktop, Wall-mount Option (ICI-561808) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet 5-Port Gigabit Switch with PoE Passthrough, One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, Four PSE PoE ports, PoE Power Budget up to 65 W, IEEE 802.3at/af Compliant Output, Desktop, Wall-mount Option includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet 5-Port Gigabit Switch with PoE Passthrough, One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, Four PSE PoE ports, PoE Power Budget up to 65 W, IEEE 802.3at/af Compliant Output, Desktop, Wall-mount Option compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ICI-561808.
