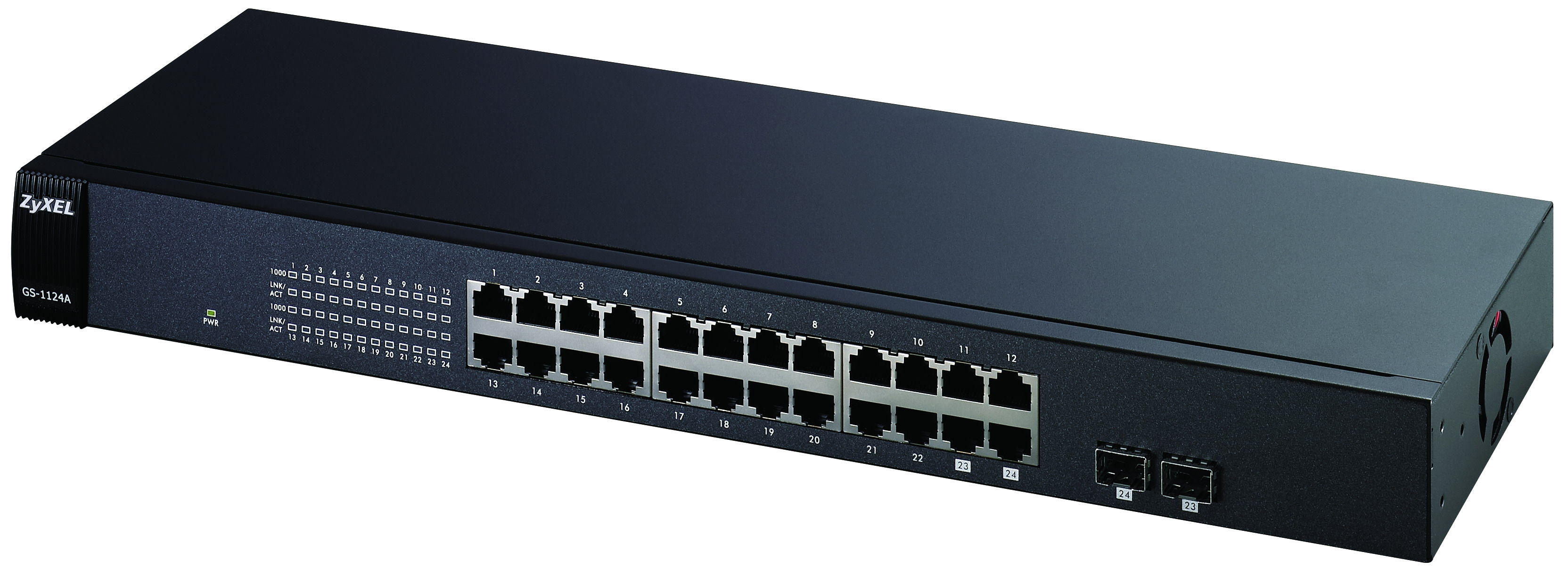

Zyxel GS-1124A Unmanaged L2 Blue
Brand: Zyxel · SKU: ZYXGS-1124A · MPN: ZYXGS-1124A · Category: Components
Zyxel GS-1124A, Unmanaged, L2. Zyxel GS-1124A Unmanaged L2 Blue (part number ZYXGS-1124A) is an enterprise components product available from Server Tech Central. Key specifications include weight 3.2 kg, stackable No, switch type Unmanaged, switch layer L2, auto mdi/mdi-x Yes, product colour Blue, input frequency 50/60 Hz, power connector DC-in jack. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 3.2 kg |
|---|---|
| Stackable | No |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Auto MDI/MDI-X | Yes |
| Product colour | Blue |
| Input frequency | 50/60 Hz |
| Power connector | DC-in jack |
| Connectivity LEDs | Y |
| MAC address table | 4000 entries |
| Dimensions (WxDxH) | 440 x 161 x 44 mm |
| Power requirements | 100 - 240VAC |
| Switching capacity | 48 Gbit/s |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Packet buffer memory | 0.5 MB |
| Packet transfer speed | 1488000 pps |
| Connectivity technology | Wired |
| SFP/SFP+ slots quantity | 2 |
| Combo SFP ports quantity | 2 |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -20 - 70 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Warranty | 3-Year Warranty |
| Weight | 3.2 kg |
Product Description
24-port Unmanaged Gigabit Ethernet Switch ideal for bandwidth-heavy applications such as high resolution digital image transmission, video/audio file streaming/downloading and server farm connectivity. -Non-blocking Gigabit wire-speed forwarding to fly the transmission. -Jumbo frame mode support (up to 10K bytes) to maximize efficiency of transmission for giant packets. -IEEE802.1p CoS support to priority transmission according to packet priority level. -IEEE 802.3x Flow control to optimize transmission by reducing congestion. -2 built-in Dual-personality (RJ-45 or SFP open slot) interfaces for flexible deployment. -Auto MDI/MDI-X support for hales-free usage. -1U, 19" rack mountable. -ZyAssure Support Options Available here Cost-effective solution for Gigabit migration ZyXEL GS-1124A is a 24-port unmanaged gigabit switch providing a cost-effective solution to empower "Gigabit to the desktop" connectivity. This brings significant performance improvement with increased network bandwidth. In addition, the GS-1124A comes with two dual personality (RJ-45 or SFP open slot) interfaces. It offers flexible connectivity (copper or fiber) to adapt to different deployment environments. The GS-1124A is an ideal solution for bandwidth-hungry applications (such as high resolution digital image transmission, video/audio file streaming/downloading, server farm connectivity). Wire-speed Gigabit Engine to Fly the Transmission With a robust hardware design, the GS-1124A performs packet forwarding at wire-speed, which can instantly transfer giant packets without performance degradation. In addition, with the support of 802.3x flow control, theGS-1124A guarantees smooth transmission by adjusting packet transmission to reduce congestion. IEEE802.1p CoS allows the switch to send packets based on the priority level. In addition, theGS-1124A supports jumbo frame transmission up to 10K bytes to improve transmission efficiency and network performance. Hassle-free Installation and Usage Connectivity can be as easy as connecting to a port on the switch. All the rest of the functions are done automatically. All ports on the GS-1124A are Auto MDI/MDIX ; that means you don't need to check the Ethernet cable type. In addition, auto-negotiation helps adjust link speed intelligently to reach the best link quality. In other words, there is not hassle of twigging with the switch or pouring over the user manuals. The GS-1124A is rack mountable, allowing you to place it in a rack to save precious office space.
Key Features
Zyxel GS-1124A. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 22. MAC address table: 4000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: DC-in jack
