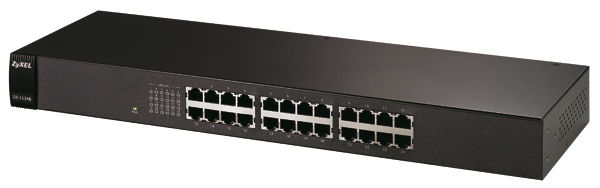

Zyxel GS-1124B Unmanaged
Brand: Zyxel · SKU: 91-010-212001B · MPN: 91-010-212001B · Category: Components
Zyxel GS-1124B, Unmanaged. Zyxel GS-1124B Unmanaged (part number 91-010-212001B) is an enterprise components product available from Server Tech Central. Key specifications include safety UL, CSA, EN, IEC, weight 2.5 kg, stackable Yes, switch type Unmanaged, certification FCC, CE EMC, package depth 218 mm, package width 548 mm, auto mdi/mdi-x Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Safety | UL, CSA, EN, IEC |
|---|---|
| Weight | 2.5 kg |
| Stackable | Yes |
| Switch type | Unmanaged |
| Certification | FCC, CE EMC |
| Package depth | 218 mm |
| Package width | 548 mm |
| Auto MDI/MDI-X | Yes |
| Package height | 108 mm |
| Power connector | DC-in jack |
| MAC address table | 4000 entries |
| Data transfer rate | 38.7 Mbit/s |
| Dimensions (WxDxH) | 440 x 130 x 45 mm |
| Networking features | Ethernet |
| Switch fabric speed | 48Gbps |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Packet buffer memory | 0.5 MB |
| MAC address filtering | Yes |
| Connectivity technology | Wired |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 48 Gbit/s |
| Warranty | 3-Year Warranty |
| Weight | 2.5 kg |
Product Description
Hassle-free installment and usage Connectivity can be so easy. Just simple cable plug-in is the only action you have to take. Then, all the rest will be done automatically. No need to check the cable type. Support of Auto MDI/MDI-X reduces the inconvenience of usage crossover cable in certain connectivity environment. Then, Auto-negotiation will help adjust link speed intelligently to reach the best link quality. In other words, no need to go through headache of checking user manual and you can get connectivity immediately. In addition, with its rackmountable design, ZyXEL GS-1124B can also be placed in rack to save space. Cost-effective solution for Gigabit migration An unmanaged gigabit switch, a cost-effective solution to empower "Gigabit to the desktop", which can bring dramatic performance improvement by broadening the traffic route substantially. For applications, like high resolution digital image transmission, video/audio file streaming/downloading, server farm connectivity that networks carries heavy traffic with high frequency, the GS-1124B is the ideal solution to adapt. Flexible deployment and usage With robust hardware design, the GS-1124B can perform packets forwarding/filtering at wire-speed, which can promptly pipe away giant packets without difficulty. At meanwhile, support of 802.3x flow control can smooth transmission by dynamically adjusting packet transmission to reduce congestion. IEEE802.1p CoS also gets supported as well, if the packets are prioritized, the switch can look into the priority attribution of the packet and send them at high or low priority accordingly. In addition, support of Jumbo frame packets up to 9K bytes and broadcast storm control can improve the efficiency and performance of networks.
Key Features
Zyxel GS-1124B. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 4000 entries. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Zyxel GS-1124B Unmanaged (91-010-212001B) is 100% genuine Zyxel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Zyxel GS-1124B Unmanaged includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Zyxel GS-1124B Unmanaged compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 91-010-212001B.
