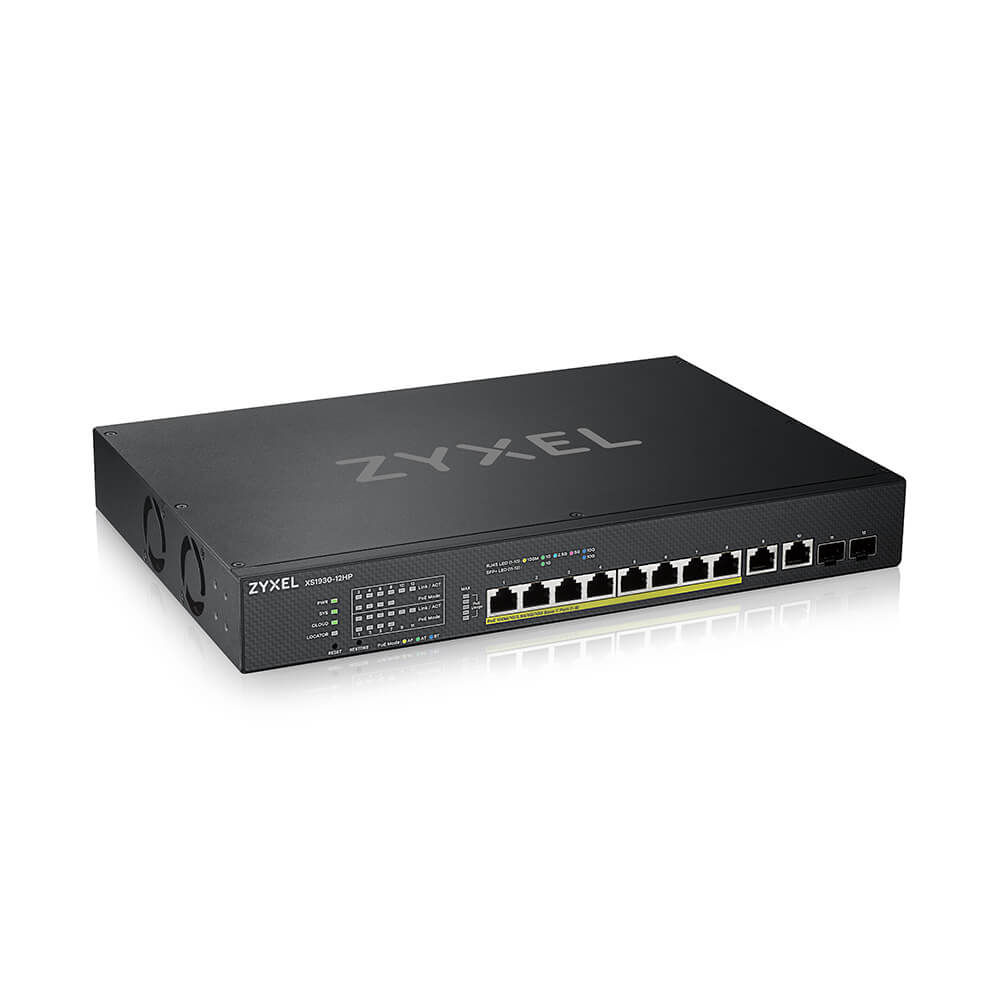

Zyxel XS1930-12HP network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black
Brand: Zyxel Communications · SKU: ZXL-XS1930-12HP · MPN: XS1930-12HP · Category: Networking
Zyxel XS1930-12HP, Managed, L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting
Specifications
| Depth | 230 mm |
|---|---|
| Width | 330 mm |
| Height | 44 mm |
| Weight | 2.8 kg |
| 10G support | Yes |
| MIB support | Y |
| Switch type | Managed |
| Switch layer | L3 |
| VLAN support | Yes |
| Cloud-managed | Yes |
| Rack mounting | Yes |
| LED indicators | Yes |
| Port mirroring | Yes |
| Product colour | Black |
| AC input voltage | 100 - 240 V |
| Heat dissipation | 151.06 BTU/h |
| MAC address table | 16000 entries |
| Multicast support | Yes |
| Switching capacity | 240 Gbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x |
| Web-based management | Yes |
| Power supply included | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Power consumption (max) | 493 W |
| Warranty | 3-Year Warranty |
| Weight | 2.8 kg |
| Dimensions | 330 mm x 230 mm x 44 mm |
Product Description
Light Up the Speed Zyxel’s XS1930 Series Multi-Gigabit Smart Managed Switch Breakthrough 1 Gbps The new XS1930 Series switch supports IEEE 802.3bz standard for delivering Multi-Gigabit technology on existing wiring infrastructure which offering up to 10 times more bandwidth capacity without expensive and disruptive cable upgrades. In addition, it is designed with industry-first 5-color LED to instantly display the operating port speed. New era of connectivity Each of the Multi-Gigabit ports on XS1930 Series Switch support speed 100M/1G/2.5G/5G/10G that are suitable for every network device. For 2.5G/5G capable devices such as WiFi 6 (11ax) AP, servers and workstations now are able to operate at the maximum speed without forcing the connection downgrades to 1G. True backbone of WiFi 6 WiFi 6 needs higher speed LAN (>1Gbps) and power (PoE++). The PoE model XS1930-12HP supports the latest PoE standard IEEE 802.3bt (PoE++) providing port power up to 60W for WiFi6 AP, as well as backwarding compatibility with existing PoE/PoE+ devices. With a large power budget of up to 375W, XS1930-12HP gives enough headroom for connections up to 8 WiFi 6 (11ax) APs. Experience The Near Silent Operation The built-in smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the XS1930 series is operating. It is ideal for your office environment. Manage it your way! The XS1930 Series introduces Zyxel NebulaFlex, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks. Smart managed switch inside and out The XS1930 Series aims to widen user experience with its unique One-touch ‘Restore’ button as well as fully-loaded SMB features such as VLAN, enhanced QoS, and LAG along with IPv4/IPv6 Layer 3 static route, can all be configured via its local user-friendly web interface efficiently. Designed for the long haul Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS1930 Series for your networks.
Key Features
Zyxel XS1930-12HP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Power over Ethernet (PoE). Rack mounting
