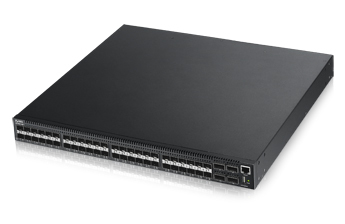

Zyxel XS3900-48F network switch Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black
Brand: Zyxel · SKU: XS3900-48F · MPN: XS3900-48F · Category: Networking
Zyxel XS3900-48F, Managed, L2, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting. Zyxel XS3900-48F network switch Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black (part number XS3900-48F) is an enterprise switches product available from Server Tech Central. Key specifications include depth 455 mm, width 440 mm, height 43 mm, weight 22.5 kg, throughput 952.4 Mpps, 10g support Yes, switch type Managed, switch layer L2. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 455 mm |
|---|---|
| Width | 440 mm |
| Height | 43 mm |
| Weight | 22.5 kg |
| Throughput | 952.4 Mpps |
| 10G support | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| VLAN support | Yes |
| DHCP features | DHCP client |
| Rack mounting | Yes |
| Product colour | Black |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Switching capacity | 1280 Gbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Access Control List (ACL) | Yes |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -47 - 70 °C |
| SFP+ module slots quantity | 48 |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 232 W |
| Storage relative humidity (H-H) | 10 - 90% |
| Quality of Service (QoS) support | Yes |
| Warranty | 3-Year Warranty |
| Weight | 22.5 kg |
| Dimensions | 440 mm x 455 mm x 43 mm |
Product Description
Ultra-low Latency Top-of-rack Switch for Data Center Bridging Deployments Data centers today are facing a new generation of challenges. Virtualization and data center consolidation have imposed higher bandwidth demands on data center networks. The competitive business landscape has also pushed forward the need for faster application deployments. Next-generation data centers need to provide the efficiency, flexibility and availability to facilitate business agility and competitiveness. The ZyXEL XS3900-48F is a high-density top-of-rack (ToR) switch designed to facilitate fast and modularized application deployments in next-generation data centers. It supports DCBX, 802.1Qaz (ETS) and 802.1Qbb (PFC) protocols, and offers 10GbE and 40GbE connectivity to provide high bandwidth and ultra-low latency performance for converged networks and virtualized applications. The 48 fixed 10GbE SFP+ ports can also support 1GbE SFP transceivers for added flexibility and easy network transitions.With redundant and hot-swappable fan trays and power supply modules, the XS3900-48F offers the redundancy, reliability and availability for non-stop services. Ultra-low latency performance The ZyXEL XS3900-48F is a high-density ToR switch designed to provide ultra-low latency performance for Data Center Bridging deployments. It features forty-eight (48) 10GbE SFP+ ports and four (4) 40GbE QSFP+ uplinks for high-performance and scalable networking. Built with non-blocking switching architecture, the XS3900-48F delivers 1.28 Tbps switching capacity and 952.4 Mpps forwarding rate, with an additional 9 MB packet buffer. The XS3900-48F offers ultra-low latency IP switching performance on all ports, making it the ideal choice for ToR deployments in data centers. Data center optimized service quality The ZyXEL XS3900-48F is optimized to deliver the service quality required in demanding converged data center networks. This high-performance ToR switch offers enhanced management of data center traffic with support for Data Center Bridging Exchange (DCBX), 802.1Qaz Enhanced Transmission Selection (ETS) and 802.1Qbb Priority-based Flow Control (PFC) protocols. The switch can discover and communicate with other DCB-enabled network devices with the DCBX protocol, and utilize PFC and ETS to manage, pause and schedule the behavior of different traffic to avoid traffic congestions, ensure lossless operation, and guarantee bandwidth for critical applications. Modular and flexible rack-by-rack deployment To meet the demands of rapidly changing business operations, data centers today need to be more agile and flexible than ever before. Purpose-built for top-of-rack deployments, the ZyXEL XS3900-48F facilitates modular data center deployments, which offer fast and easy rack-by-rack server changes or upgrades. Not only do top-of-rack data center designs require less cabling infrastructure and offer cleaner cable management, they also enable quicker deployment and easier scaling of network applications.
Key Features
Zyxel XS3900-48F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 1280 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE.... Power over Ethernet (PoE). Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Zyxel XS3900-48F network switch Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black (XS3900-48F) is 100% genuine Zyxel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Zyxel XS3900-48F network switch Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Zyxel XS3900-48F network switch Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the XS3900-48F.
