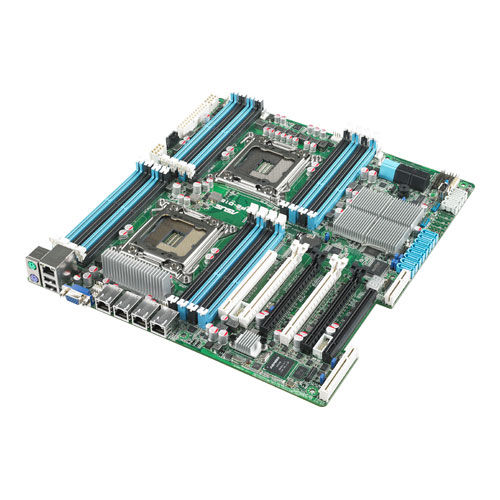

ASUS Z9PE-D16 motherboard Intel® C602 LGA 2011 (Socket R)
Brand: ASUS · SKU: Z9PE-D16 · MPN: Z9PE-D16 · Category: Components
ASUS Z9PE-D16, Intel, LGA 2011 (Socket R), 4, 8, 6.4,7.2 GT/s, DDR3-SDRAM, 512 GB
Specifications
| Depth | 330 mm |
|---|---|
| Wi-Fi | No |
| Width | 305 mm |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | US (FCC, CFR47 15 A), Europe (CE, EN55022 / EN55024), Australia (C-TICK) |
| Microphone in | No |
| Supported QPI | 6.4,7.2 GT/s |
| TPM connector | Yes |
| Cables included | SATA, USB |
| Memory channels | Quad-channel |
| Processor socket | LGA 2011 (Socket R) |
| Parallel connector | No |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® C602 |
| PS/2 ports quantity | 1 |
| Maximum RDIMM memory | 512 GB |
| Number of DIMM slots | 16 |
| PCI Express x16 slots | 6 |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 2 |
| Ethernet interface type | Gigabit Ethernet |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 330 mm |
Product Description
The ASUS Z9PE-D16 serverboard provides an ideal foundation for reliable performance and future upgrades. Through innovative ASUS design, it offers high power efficiency of up to 90%, quad Intel® LAN ports with great virtualization support, and high I/O expandability. Users also obtain high manageability via the latest ASMB6, making this an ideal general purpose host server, AP server, mail server, and storage server. Innovative technologies deliver easy expandability, complete storage and high power efficiency Complete storage support The Z9PE-D16 boasts multiple SAS implementation, from Intel® SCU/AHCI to ASUS PIKE, supporting the latest SATA/SAS 6Gb/s technology. While ASUS optional PIKE provides slim-sized and flexible storage options, direct SAS RAID upgrades can be achieved via a unique slot — without sacrificing expansion capability. ASUS PIKE further provides customers with multiple I/O options and RAID functionality, and various storage expansion choices for different applications. Green and highly power efficient Z9PE-D16 voltage regulation manages up to 90% peak power efficiency, with 88%+ during heavy CPU loading. This ensures high power efficiency for the entire system to help customers save operating costs. ASMB6-iKVM upgrade kit for easy troubleshooting The ASMB6-iKVM enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface through all major browsers. Cutting-edge architecture The Z9PE-D16 supports the latest Intel® E5-2600 series processors (Sandy Bridge-EP). Through ASUS design and research expertise, it has been adapted to support upcoming E5-2600 V2 processors (Ivy Bridge-EP) to protect customer investment. Featuring 16-DIMM slots, it can take up to 512GB of DDR3 1600/1333/1066 RDIMM/UDIMM/LRDIMM memory, providing high computing capability. Additionally, with PCI Express 3.0 support, the Z9PE-D16 enables higher bandwidth to meet various demanding application requirements. Server-class quad LAN connection The new serverboard ships with the industry’s first fully integrated Intel® I350 quad-port Ethernet controller, which supports energy efficient Ethernet and DMA coalescing and offers reliable and fast network connections. With VT-d technology and new VMDq queuing, the Z9PE-D16 easily manages virtualization applications while maintaining superior performance.
Key Features
ASUS Z9PE-D16. Processor manufacturer: Intel, Processor socket: LGA 2011 (Socket R), Processor number of cores supported: 4, 8. Supported memory types: DDR3-SDRAM, Maximum internal memory: 512 GB, Memory channels: Quad-channel. Supported storage drive interfaces: SATA, SATA II, SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2300, On-board graphics card memory: 16 MB. Ethernet interface type: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS Z9PE-D16 motherboard Intel® C602 LGA 2011 (Socket R) (Z9PE-D16) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS Z9PE-D16 motherboard Intel® C602 LGA 2011 (Socket R) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS Z9PE-D16 motherboard Intel® C602 LGA 2011 (Socket R) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the Z9PE-D16.
