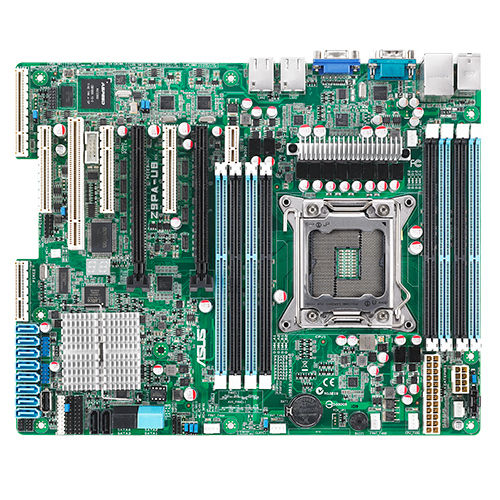

ASUS Z9PA-U8 motherboard Intel® C602 LGA 2011 (Socket R) ATX
Brand: ASUS · SKU: Z9PA-U8 · MPN: Z9PA-U8 · Category: Components
ASUS Z9PA-U8, Intel, LGA 2011 (Socket R), E5-1600, E5-2600, 4, 6, DDR3-SDRAM, 256 GB
Specifications
| Depth | 243.8 mm |
|---|---|
| Wi-Fi | No |
| Width | 304.8 mm |
| PCI slots | 1 |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | FCC, CFR47 15, Class B, CE, EN55022 & EN55024 |
| Component for | Server |
| TPM connector | Yes |
| LAN controller | Intel® 82574L |
| Processor socket | LGA 2011 (Socket R) |
| Intel Xeon series | E5-1600, E5-2600 |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® C602 |
| PS/2 ports quantity | 1 |
| Serial port headers | 1 |
| Number of DIMM slots | 8 |
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 2 |
| Serial ports quantity | 1 |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 243.8 mm |
Product Description
Optimized dual-use server and high-end workstation performance Commercial way to upgrade to Romley platform The ATX-sized Z9PA-U8 supports the latest Intel® Xeon® E5-1600 and E5-2600 processor family, featuring high computing capacity and faster data transmission. This server motherboard provides customer a cost-effective way to enter into Romley platform with one way CPU and Desktop (ATX) power supply. Design for Datacenter Cache Server application The Z9PA-U8 delivers outstanding data transmission performance with two DIMM per channel and up to 256GB LRDIMM. Thus, it is suitable for datacenter on Cache Server application which speeds up the access to data and quick response the demand from network. Dual Use for Server and High End Workstation The design and features of the Z9PA-U8 accommodate usage as a medium to large scale server or high-end workstation for even the most complex tasks. Additionally, it adopts the latest hardware standards, including USB 3.0 for faster data transfers and PCI Express 3.0 enhanced signaling and data integrity. MIO-892 Card Supported for 7.1 ch Audio Experience The Z9PA-U8 supports the latest ASUS MIO-892 Card. With better enhanced signal-to-noise ratio in a 7.1 surround channel, the MIO card offers great sound quality to complement the robust video power—delivering exhilarating surround sound. Accompany with graphic card and MIO-892, Z9PA-U8 becomes powerful E5-2600 single socket workstation. Comprehensive Server Management Solution: ASMB6-iKVM and ASWM Enterprise The ASMB6-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, management LAN fail-over support, and user-friendly web-based graphical interface through all major browsers. Moreover, ASWM Enterprise provides one-to-multiple centralized management including BIOS flash, remote control, power control through a colorful, graphical, and informative interface.
Key Features
ASUS Z9PA-U8. Processor manufacturer: Intel, Processor socket: LGA 2011 (Socket R), Intel Xeon series: E5-1600, E5-2600. Supported memory types: DDR3-SDRAM, Maximum internal memory: 256 GB, Supported memory clock speeds: 1066,1333,1600 MHz. Supported storage drive interfaces: Serial Attached SCSI (SAS), RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2300, On-board graphics card memory: 16 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82574L
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS Z9PA-U8 motherboard Intel® C602 LGA 2011 (Socket R) ATX (Z9PA-U8) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS Z9PA-U8 motherboard Intel® C602 LGA 2011 (Socket R) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS Z9PA-U8 motherboard Intel® C602 LGA 2011 (Socket R) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the Z9PA-U8.
