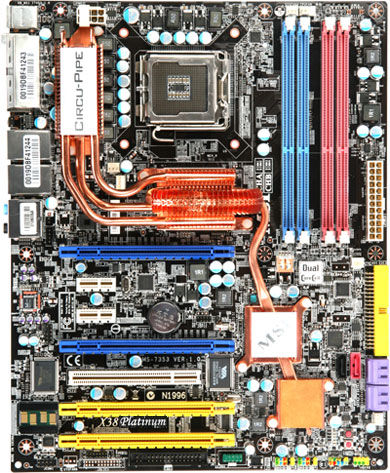

MSI X38 Platinum LGA 775 (Socket T) ATX
Brand: MSI · SKU: X38 PLATINUM · MPN: X38 PLATINUM · Category: Components
MSI X38 Platinum, Intel, LGA 775 (Socket T), Realtek RTL8111B, 10/100/1000, ATX, ATX. MSI X38 Platinum LGA 775 (Socket T) ATX (part number X38 PLATINUM) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 245 mm, microphone in Yes, tpm connector Yes, lan controller Realtek RTL8111B, s/pdif out port Yes, processor socket LGA 775 (Socket T), power source type ATX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 245 mm |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111B |
| S/PDIF out port | Yes |
| Processor socket | LGA 775 (Socket T) |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | 10/100/1000 |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 8 |
| Motherboard form factor | ATX |
| Number of SATA connectors | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| Chassis intrusion connector | Yes |
| Floppy disk drive connector | Yes |
| Number of IEEE1394 connectors | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 305 mm |
Product Description
CPU - Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package. - Supports Intel® Yorkfield, Wolfdale in the LGA775 package. - Supports FSB 1333/1066/800 MHz. Chipset - Intel® X38 Chipset - Supports FSB 800/1066/1333MHz. - Supports dual channel, DDR3 800/1066/1333. Intel® ICH9R Chipset - Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports. - 4 SATAII with 2 eSATA* ports with transfer rate up to 3Gb/s. - Supports Viiv technology - PCI Master v2.3, I/O APIC. - ACPI 2.0 compliant. - Serial ATA RAID 0/1/5/10. - Integrated AHCI controller. Main Memory - Supports four unbuffered DIMM of 1.5 Volt DDR3 SDRAM - Supports up to 8GB memory size. - Supports dual channel DDR3 memory architecture. - Supports DDR3 800/1066/1333 memory interface. Slots - Two mazarine PCI Express x16 slots (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology) - Two yellow PCI Express x16 slots with x4 operations (PCI Express Bus SPEC V1.0a compliant) - Two PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant) - One 32-bit v2.3 master PCI bus slot. - Support 3.3v/5v PCI bus interface. On-Board IDE/SATA - One Ultra DMA 66/100/133 IDE controller integrated in Marvell® 88SE6111. - Supports PIO, Bus Master operation modes. - Can connect up to two Ultra ATA drives. SATAII controller integrated in ICH9R and Silicon Image® 5723 chipest - Up to 300MB/sec transfer speed. - Supports four SATAII ports and two eSATA ports by ICH9R. - Supports AHCI controller with SATA RAID 0/1/5/10 by ICH9R. - Supports two SATAII ports by 5723. - Supports SATA RAID 0/1, JBOD mode/ by 5723. (for SATA7 & SATA8 only) Audio - Chip integrated by Realtek® ALC888 - Flexible 8-channel audio with jack sensing - Compliant with Azalia 1.0 spec. - Meet Microsoft Vista Premium spec. LAN - Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111B. - Supports Gigabit Ethernet LAN 10/100/1000 Fast Ethernet by Intel 82566DC. (for ViiV) IEEE1394 - VIA® VT6308P chipset - Supports up to two 1394 ports. (Rear panel x1, pinheader x1) - Transfer rate is up to 400Mbps. Internal I/O Connectors - ATX 24-Pin power connector - 8-pin ATX 12V power connector - CPU / System x 5 FAN connectors - CD-in connector - Front panel audio connector - Front panel connector - 1 x SPDIF-out pinheader - 1 x chasis intrusion connector - 1 x serial port pinheader - 2 x USB 2.0 connectors - 1 x Floppy disk drive connector - 6 x Serial ATAII connectors - 1 x ATA133 connector - 1 x IEEE1394 connector support additional 1 port - 1 x TPM module connector (optional) Back Panel I/O Ports - 1 x PS/2 keyboard - 1 x PS/2 mouse - 2 x eSATA ports (support Command Based Port Multipliers) - 1 x 6 in 1 audio jack - 8 x USB 2.0 ports - 2 x RJ45 LAN jacks - 1 x IEEE1394 port - 1 x Optical SPDIF-out BIOS - The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. - The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Key Features
MSI X38 Platinum. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). LAN controller: Realtek RTL8111B, Networking features: 10/100/1000. Motherboard form factor: ATX, Power source type: ATX. Width: 245 mm, Depth: 305 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI X38 Platinum LGA 775 (Socket T) ATX (X38 PLATINUM) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI X38 Platinum LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI X38 Platinum LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the X38 PLATINUM.
