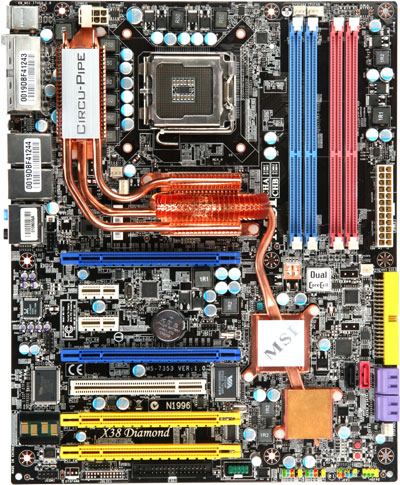

MSI X38 Diamond LGA 775 (Socket T) ATX
Brand: MSI · SKU: 7353-B10 · MPN: 7353-B10 · Category: Components
MSI X38 Diamond, Intel, LGA 775 (Socket T), 8 GB, Realtek RTL8111B, 10/100/1000 Fast Ethernet, ATX. MSI X38 Diamond LGA 775 (Socket T) ATX (part number 7353-B10) is an enterprise components product available from Server Tech Central. Key specifications include audio chip Realtek ALC888, microphone in Yes, tpm connector Yes, lan controller Realtek RTL8111B, cd/aux audio in Yes, cables included SATA, s/pdif out port Yes, processor socket LGA 775 (Socket T). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Audio chip | Realtek ALC888 |
|---|---|
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111B |
| CD/AUX audio in | Yes |
| Cables included | SATA |
| Expansion slots | 2 x PCI Express x16(SPEC V2.0) 2 x PCI Express x16(SPEC V1.0a) 2 x PCI Express x1 1 x 32-bit v2.3 PCI bus |
| S/PDIF out port | Yes |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Networking features | 10/100/1000 Fast Ethernet |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 2 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 8 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Controller interface type | Ultra DMA 66/100/133 IDE |
| Number of SATA connectors | 6 |
| Warranty | 3-Year Warranty |
Product Description
Features: - Functions designed with button to be easy use. - Help power-users tweaking process in-chasis enviornment - Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra. - 4 LED Matrix to show boot up status. - Directly showing the problem part, NOT debug code. - Easy to find out the error of the parts while debugging. - With 4-phase PWM IC, dual channel PWM design and Hi-c CAP, which lead to better power converting, reducing noise and expand the lifespan and stability. - Hi-c CAP can bring 100x faster electrical conductivity than solid acpacitor and less power loss. PWM brings more power efficiency, thus lower the real power spend. - Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready. - The ultimate multi-GPU performance gaming platform. - Provides 2.7x faster performance than single graphic card solution. X-Fi Audio - Make MP3 music sound better than CDs - Transform to surround sound (speakers/headphone) from stereo audio source - EAX ADVANCED HD 4.0 provides the fidelity of gaming audio effect - World’s 1st PCIe interface X-Fi audio card The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. - Key components status hardware monitor. - Monitor the Dual Core CPU each unit status. - Optimize System status define. - Auto speed up with system loading change. Live Update 3 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.
Key Features
MSI X38 Diamond. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 8 GB. LAN controller: Realtek RTL8111B, Networking features: 10/100/1000 Fast Ethernet. Motherboard form factor: ATX, Audio chip: Realtek ALC888, Power source type: ATX. Cables included: SATA
