Brand: Supermicro · SKU: X12DPI-N6 · MPN: MBD-X12DPI-N6-O · Category: Servers

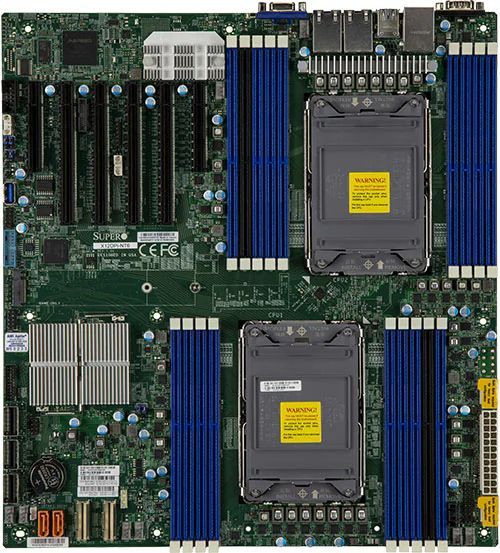

The Supermicro X12DPI-N6 is an Extended ATX server motherboard designed for high-performance, high-end computing platforms, ideal for big data and enterprise applications. It supports dual 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake) in Socket P+ (LGA 4189) with a maximum TDP of up to 270W per CPU. It is built with the Intel C621A chipset. The board supports up to 4TB of 3DS LRDIMM/LRDIMM/3DS RDIMM/RDIMM DDR4 ECC memory at speeds up to 3200MHz across 16 DIMM slots, plus two additional slots reserved for up to 4TB of Intel® Optane™ PMem 200 Series. Expansion includes six PCIe 4.0 slots (four x16, two x8), two PCIe 4.0 x8 NVMe SlimSAS ports (with four connections), 14 SATA 3.0 ports, one M.2 slot (2280/22110), and nine USB ports. Networking is provided by dual Intel® i350 Gigabit Ethernet LAN ports, along with a dedicated IPMI port for remote management. The onboard video is handled by the ASPEED AST2600 BMC. The motherboard is designed for professional installation and service.
| LAN | Dual Intel i350 Gigabit Ethernet (1Gbps) |
|---|---|
| Chipset | Intel C621A |
| Storage | 14 x SATA 6Gb/s (RAID 0, 1, 5, 10), 2 x PCIe 4.0 x8 NVMe SlimSAS ports, 1 x M.2 (2280/22110, PCIe 4.0 x4) |
| PCIe Slots | 4 x PCIe 4.0 x16, 2 x PCIe 4.0 x8 |
| Form Factor | E-ATX |
| Max CPU TDP | 270W |
| Memory Slots | 16 DDR4 DIMM slots + 2 Optane PMem slots (Total 18) |
| Memory Speed | DDR4-3200/2933/2666MHz |
| Onboard Video | ASPEED AST2600 BMC |
| Supported CPU | 3rd Gen Intel Xeon Scalable Processors (Ice Lake) |
| CPU Socket Type | Dual Socket P+ (LGA 4189) |
| Max Memory Capacity | Up to 4TB (DDR4 ECC) + Up to 4TB (Optane PMem) |
| Warranty | 1-Year Limited Warranty (parts), 3-Year Limited Warranty (labor) |
| Weight | Not specified |
| Dimensions | E-ATX 12" x 13" (304.8 x 330.2mm) |
The Supermicro X12DPI-N6 motherboard is optimized for high-performance, high-end computing platforms, making it ideal for demanding workloads like big data and enterprise applications. It features dual support for 3rd Gen Intel Xeon Scalable processors and massive memory capacity with support for up to 4TB of DDR4 ECC RAM and Intel Optane Persistent Memory. Its I/O is strong, offering multiple PCIe 4.0 expansion slots, numerous SATA ports, and dual 1GbE LAN plus dedicated remote management via IPMI.
