Brand: Supermicro · SKU: MBD-X12SPA-TF-O · MPN: MBD-X12SPA-TF-O · Category: Components

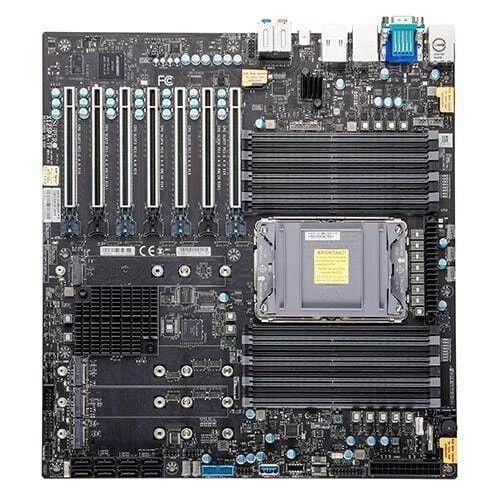

The Supermicro X12SPA-TF is an extended ATX (E-ATX) workstation motherboard built with the Intel C621A chipset. It supports a single 3rd Generation Intel® Xeon® Scalable/Intel Xeon W-33xx Series processor in a Socket P+ LGA 4189, supporting CPUs with up to 40 cores and a TDP of up to 270W. It features 16 DDR4 DIMM slots supporting up to 4TB of ECC RDIMM, 3DS RDIMM, LRDIMM, 3DS LRDIMM, and Intel Optane™ Persistent Memory 200 Series at speeds up to 3200 MT/s (2DPC). Expansion includes seven PCIe 4.0 slots (4 x16, 3 x8 in x16 slot), eight SATA 3.0 ports with RAID 0, 1, 5, 10 support, and four M.2 sockets supporting RAID 0, 1, 5, 10 (VROC key required). Networking includes dual LAN (Gigabit Ethernet and 10-Gigabit Ethernet) plus a dedicated IPMI LAN port. Onboard graphics use the ASPEED AST2500, and audio is HD Audio. The board supports advanced security features like TPM and Root of Trust (RoT). It is optimized for high-performance computing, big data, and enterprise applications. Dimensi
| Chipset | Intel C621A |
|---|---|
| LAN Ports | 1 x Gigabit Ethernet (I210-AT), 1 x 10-Gigabit Ethernet (Marvell AQC113), 1 x Dedicated IPMI LAN (Realtek PHY) |
| CPU Support | Single 3rd Gen Intel® Xeon® Scalable / Intel Xeon W-33xx Series (Up to 40 cores, 270W TDP) |
| Memory Slots | 16 x DDR4 DIMM |
| Storage Ports | 8 x SATA3 (6 Gbps) with RAID 0, 1, 5, 10, 4 x M.2 (M-Key, 2260/2280/22110) |
| Expansion Slots | 4 x PCIe 4.0 x16, 3 x PCIe 4.0 x8 (in x16 slot) |
| Onboard Graphics | ASPEED AST2500 |
| Processor Socket | LGA4189 (Socket P+) |
| Max Memory Capacity | 4 TB |
| Warranty | 3-year labor warranty / 1-year parts warranty (Note: Warranty details may vary by seller/region, official data cites 1 Year Limited Warranty for parts and 3 Years for labor on some listings) |
| Weight | N/A |
| Dimensions | 13" x 12" (330 mm x 305 mm) E-ATX |
The Supermicro X12SPA-TF is a high-performance E-ATX motherboard designed for single-socket workstations and servers utilizing 3rd Gen Intel® Xeon® Scalable or Xeon W-3300 series processors. It offers massive memory capacity with 16 DIMM slots and extensive I/O expandability via multiple PCIe 4.0 slots and high-speed storage options (SATA3 and M.2). Integrated dual 10GbE networking enhances data throughput for demanding applications.
