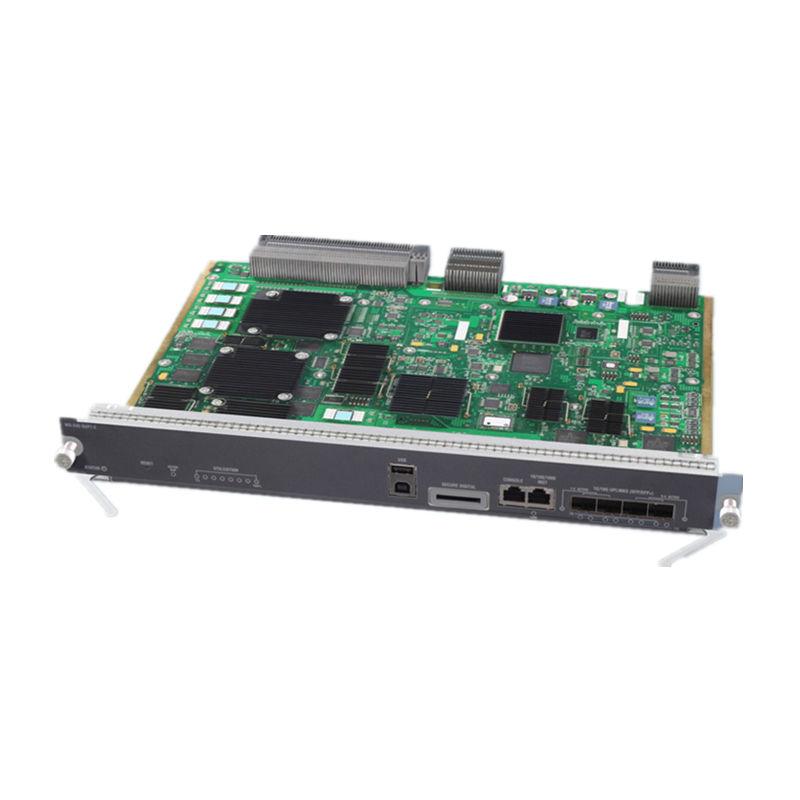

WS-X45-SUP7-E, Cisco Catalyst 4500 Switch, 848Gbps/7-E Supervisor/No Fan & PSU

Brand: Cisco · SKU: WS-X45-SUP7-E · MPN: WS-X45-SUP7-E · Category: Components

WS-X45-SUP7-E, Cisco Catalyst 4500 Switch, 848Gbps/7-E Supervisor/No Fan & PSU
Request for Quote
In Stock • 10 units

Catalyst 4500 E-Series Supervisor Engine 7-E, 848Gbps

View Components Products

Specifications

ModelWS-X45-SUP7-E
Memory2 GB (upgradeable to 4 GB)
Weight7.18 kg
LINK LEDIndicates link status for the 10/100/1000 MGT port
STATUS LEDIndicates the current health of the supervisor engine and the current software state
Console portRJ-45 10/100/1000 port for local access; used to configure the switch from the CLI, monitor network statistics and errors, and configure SNMP agent parameters
RESET switchUsed to reset and restart the switch; use a paper clip or other small, pointed object to press the RESET switch
ACTIVE SUP LEDIndicates whether the supervisor engine is active or in standby mode in redundant supervisor engine configurations
USB connectorsTwo USB 2.0 ports: Port 1 (Type B, device mode, can be used as USB console); Port 2 (Type A, host mode, supports standard USB 2.0 devices such as flash memory)
UTILIZATION LEDsEight LEDs indicate, as an approximate percentage, the current traffic load over the backplane
Uplink port LEDsEach uplink port has two LEDs: one for 1G SFP status and one for 10G SFP+ status
Power requirement302 W
Bandwidth per slot48 Gbps
STATUS LED detailsGreen: All diagnostic tests have passed; Orange: System boot or diagnostic test in progress; Red: Diagnostic test failed; Off: Supervisor engine is disabled or not powered up
Secure Digital slotStandard Secure Digital (SD) memory card interface on the front panel
10/100/1000 MGT port10/100/1000BASE-T Ethernet management Layer 3 host port for PC connection; can be used instead of the console port for network management; an IP address must be assigned when connecting a PC
MGT port LED detailsGreen: Link is operational; Orange: Link is disabled by user; Flashing orange: Power-on self-test indicates a faulty port; Off: No signal detected or link configuration failure
Chassis compatibilityAll Catalyst 4500 E-Series switches
ACTIVE SUP LED detailsGreen: Supervisor engine is active (in redundant supervisor engine configurations); Off: Supervisor engine is in standby mode (in redundant supervisor engine configurations)
UTILIZATION LED detailsEight LEDs show current backplane traffic load as an approximate percentage; each green LED represents about 12.5% load
Uplink link LED detailsGreen: Link is operational; Orange: Link is disabled by user; Flashing orange: Power-on self-test indicates a faulty port; Off: No signal detected or link configuration failure
Front panel LEDs headingSupervisor Engine 7-E front panel LEDs
Humidity (noncondensing)10% to 90% RH ambient
Chassis slot restrictionsCatalyst 4503-E: Slot 1 only; Catalyst 4506-E: Slot 1 only; Catalyst 4507R-E and 4507R+E: Slot 3 and 4; Catalyst 4510R-E and 4510R+E: Slot 5 and 6
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this WS-X45-SUP7-E, Cisco Catalyst 4500 Switch, 848Gbps/7-E Supervisor/No Fan & PSU (WS-X45-SUP7-E) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This WS-X45-SUP7-E, Cisco Catalyst 4500 Switch, 848Gbps/7-E Supervisor/No Fan & PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the WS-X45-SUP7-E, Cisco Catalyst 4500 Switch, 848Gbps/7-E Supervisor/No Fan & PSU compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-X45-SUP7-E.
