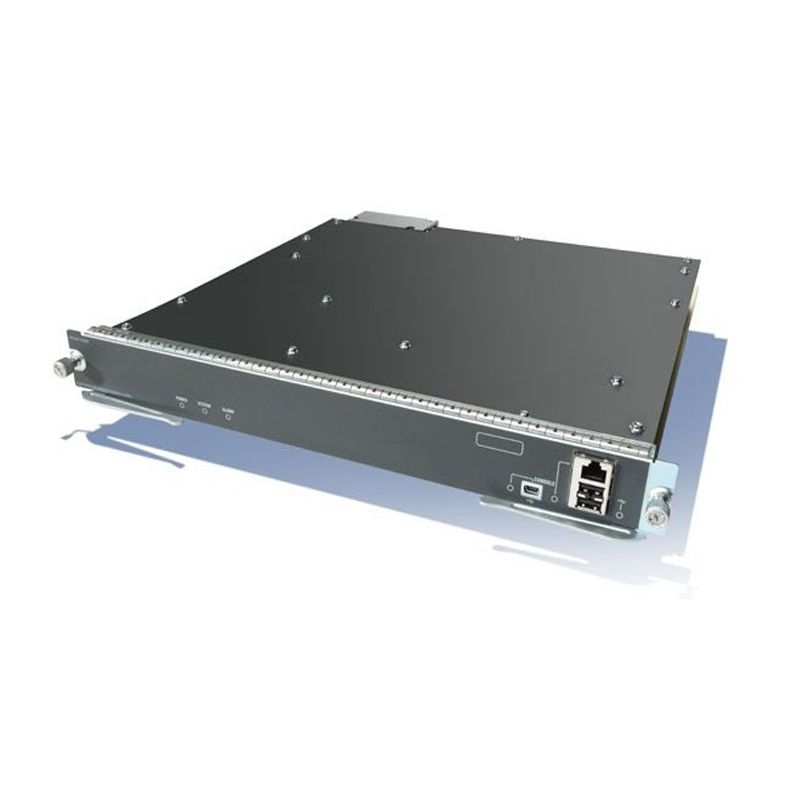

WS-SVC-WISM2-1-K9, Cisco Wireless Module, 100 AP Support/Services Module/WiSM-2

Brand: Cisco · SKU: WS-SVC-WISM2-1-K9 · MPN: WS-SVC-WISM2-1-K9 · Category: Components

WS-SVC-WISM2-1-K9, Cisco Wireless Module, 100 AP Support/Services Module/WiSM-2
Request for Quote
In Stock • 10 units

Cisco Wireless Module WS-SVC-WISM2-1-K9 Wireless Services Module:WiSM-2: w/ 100 AP Support License

View Components Products

Specifications

ModelWS-SVC-WISM2-1-K9
Weight7.9 kg
WirelessIEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM (IEEE 802.11e), IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.11ac
EncryptionWEP and TKIP-MIC: RC4 40, 104, 128-bit (static and shared keys); AES: CBC, CCM, CCMP; DES: DES-CBC, 3DES; SSL/TLS: RC4 128-bit and RSA 1024-bit, 2048-bit; DTLS: AES-CBC; IPsec: DES-CBC, 3DES, AES-CBC
EnvironmentalOperating temperature: 32 to 104 °F (0 to 40 °C); Storage temperature: -40 to 167 °F (-40 to 75 °C); Operating humidity: 10% to 95% non-condensing; Storage humidity: up to 95%
Security StandardsWPA; IEEE 802.11i (WPA2, RSN); RFC 1321 MD5 Message-Digest Algorithm; RFC 1851 ESP Triple DES Transform; RFC 2104 HMAC: Keyed Hashing for Message Authentication; RFC 2246 TLS 1.0; RFC 2401 Security Architecture for IP; RFC 2403 HMAC-MD5-96 within ESP and AH; RFC 2404 HMAC-SHA-1-96 within ESP and AH; RFC 2405 ESP DES-CBC with Explicit IV; RFC 2407 Interpretation for ISAKMP; RFC 2408 ISAKMP; RFC 2409 IKE; RFC 2451 ESP CBC-Mode Cipher Algorithms; RFC 3280 Internet X.509 PKI Certificate and CRL Profile; RFC 3602 AES-CBC Cipher Algorithm and its use with IPsec; RFC 3686 Using AES Counter Mode with IPsec ESP; RFC 4347 Datagram TLS; RFC 4346 TLS 1.1
Physical Dimensions1.6 × 15.3 × 16.3 in. (4.0 × 37.9 × 40.3 cm)
Management ProtocolsSNMP v1, v2c, v3; RFC 854 Telnet; RFC 1155 Management Information for TCP/IP-Based Internets; RFC 1156 MIB; RFC 1157 SNMP; RFC 1213 SNMP MIB II; RFC 1350 TFTP; RFC 1643 Ethernet MIB; RFC 2030 SNTP; RFC 2616 HTTP; RFC 2665 Ethernet-like Interface Types MIB; RFC 2674 Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and VLAN Extensions; RFC 2819 RMON MIB; RFC 2863 Interfaces Group MIB; RFC 3164 Syslog; RFC 3414 User-Based Security Model (USM) for SNMPv3; RFC 3418 MIB for SNMP; RFC 3636 Managed Objects for IEEE 802.3 MAUs; Cisco private MIBs
Management InterfacesWeb-based: HTTP/HTTPS; CLI: Telnet, SSH, serial console; Cisco Wireless Control System (WCS); Cisco Network Control System (NCS)
Regulatory ComplianceCE Mark; Safety: UL 60950-1:2003, EN 60950:2000; EMI and susceptibility (Class A): U.S. FCC Part 15.107 and 15.109, Canada ICES-003, Japan VCCI, Europe EN 55022, EN 55024
Wired/Switching/RoutingIEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, 1000BASE-T, 1000BASE-SX, 1000BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation
Interfaces and IndicatorsService port: 1000 Mbps Ethernet internal; Redundancy port: 1000 Mbps Ethernet internal; Console port: RS-232 (DB-9 male/RJ-45 connector included), mini-USB; Status indicators: Power, System, Alarm, Console, USB
Power and Heat DissipationInput power: 225 W maximum (test conditions: 104 °F (40 °C), full traffic; typical deployments use less); Heat dissipation: 768 BTU/h maximum (test conditions: 104 °F (40 °C), full traffic)
Data Request for Comments (RFC)RFC 768 UDP; RFC 791 IP; RFC 2460 IPv6 (pass-through bridging mode only); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 1122 Requirements for Internet Hosts; RFC 1519 CIDR; RFC 1542 BOOTP; RFC 2131 DHCP; RFC 5415 CAPWAP Protocol Specification
Authentication, Authorization, and Accounting (AAA)IEEE 802.1X; RFC 2548 Microsoft Vendor-Specific RADIUS Attributes; RFC 2716 PPP EAP-TLS; RFC 2865 RADIUS Authentication; RFC 2866 RADIUS Accounting; RFC 2867 RADIUS Tunnel Accounting; RFC 3576 Dynamic Authorization Extensions to RADIUS; RFC 3579 RADIUS Support for EAP; RFC 3580 IEEE 802.1X RADIUS Guidelines; RFC 3748 Extensible Authentication Protocol (EAP); Web-based authentication; TACACS support for management users
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
