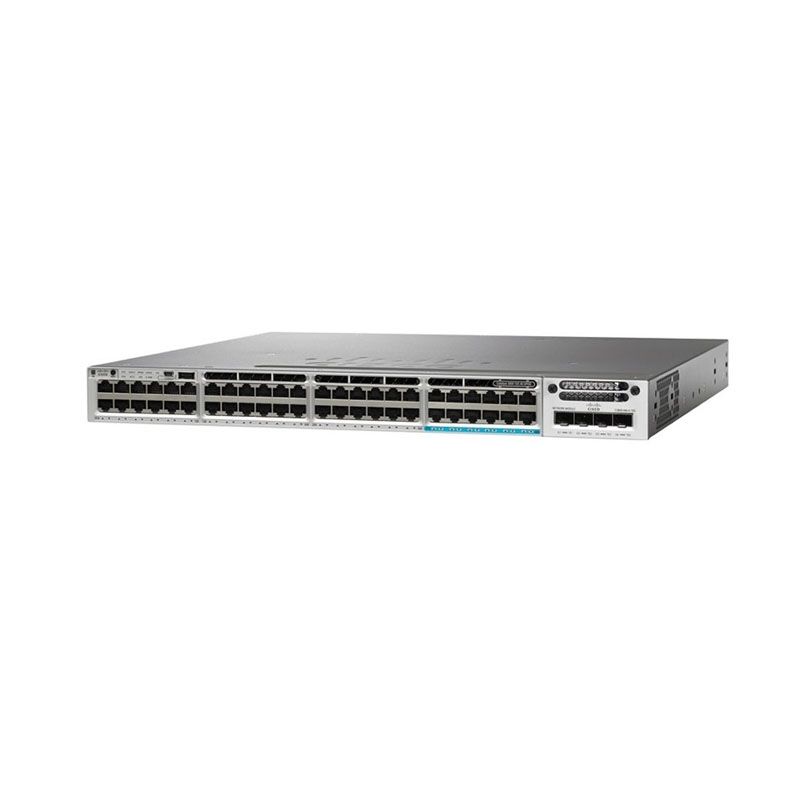

WS-C3850-48U-S, Cisco C3850 Switch, 48xUPOE/1xModule/1100W PSU

Brand: Cisco · SKU: WS-C3850-48U-S · MPN: WS-C3850-48U-S · Category: Components

WS-C3850-48U-S, Cisco C3850 Switch, 48xUPOE/1xModule/1100W PSU
Request for Quote
In Stock • 10 units

Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply, 1 RU, IP Base feature set

View Components Products

Specifications

CPUMulticore CPU
RAM4 GB
ModelWS-C3850-48U-S
PortsStackable 48 10/100/1000 Cisco UPOE ports
FeaturesRPS Support, Jumbo Frames, VLANS, Voice Vlan, VTPv2, CDPv2, LLDP, 802.3ad LACP, and PAgP, PVST/PVST+, 802.1W/802.1S, Port Fast/Uplink Fast, Dynamic Trunking Protocol (DTP), Port CoS Trust and Override, Trusted Boundary, ACL Classification, Ingress Policing, Auto QoS, Per VLAN policies, 802.1p queues, Scheduling, Priority Queuing, Configure CoS Priority Queues, Configure Queue Weights, Configure Buffers and Thresholds, Class & Policy Maps, Modify CoS and DSCP Mapping, Weighted Tail Drop, IGMPv1, v2, v3, and MLDv1, v2, DHCP server, DSCP transparency, HSRP, VRRP, BLGP, RIPv1, v2 EIGRP, PIM, OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4, VRF-lite, PIM-SM/DM, PIM sparse-dense mode, SSM, Flexible Netflow
ManagementBRIDGE-MIB, CISCO-AUTH-FRAMEWORK-MIB, CISCO-BGP4-MIB, BGP4-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-CONTEXT-MAPPING-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, ENTITY-MIB, CISCO-ERR-DISABLE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-ISIS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-CONFIG-MAN-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IPMROUTE-MIB, CISCO-IP-STAT-MIB, CISCO-IP-URPF-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-MAC-AUTH-BYPASS-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-FLASH-MIB, CISCO-OSPF-MIB, CISCO-OSPF-TRAP-MIB, CISCO-PAE-MIB, CISCO-PAGP-MIB, CISCO-PIM-MIB, CISCO-PING-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB, CISCO-RTTMON-MIB, CISCO-SMART-INSTALL-MIB, CISCO-SNMP-TARGET-EXT-MIB, CISCO-STACKMAKER-MIB, CISCO-MEMORY-POOL-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, EtherLike-MIB, HC-RMON-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB, IGMP-MIB, IGMP-STD-MIB, IP-FORWARD-MIB, IP-MIB, IPMROUTE-STD-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, NOTIFICATION-LOG-MIB, OLD-CISCO-MEMORY-MIB, CISCO-CDP-MIB, POWER-ETHERNET-MIB, RMON2-MIB, RMON-MIB, SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB, SNMP-TARGET-MIB, SNMP-USM-MIB, SNMPv2-MIB, SNMP-VIEW-BASED-ACM-MIB, TCP-MIB, UDP-MIB, CISCO-IMAGE-MIB, CISCO-STACKWISE-MIB, AIRESPMACE-WIRELESS-MIB, CISCO-LWAPP-IDS-MIB, CISCO-LWAPP-AP-MIB, CISCO-LWAPP-CCX-RM-MIB, CISCO-LWAPP-CLIENT-ROAMING-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-MIB, CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB, CISCO-LWAPP-DOT11-CLIENT-MIB, CISCO-LWAPP-DOT11-MIB, CISCO-LWAPP-DOWNLOAD-MIB, CISCO-LWAPP-LINKTEST-MIB, CISCO-LWAPP-MFP-MIB, CISCO-LWAPP-MOBILITY-EXT-MIB, CISCO-LWAPP-QOS-MIB, CISCO-LWAPP-REAP-MIB, CISCO-LWAPP-ROGUE-MIB, CISCO-LWAPP-RRM-MIB, CISCO-LWAPP-SI-MIB, CISCO-LWAPP-TSM-MIB, CISCO-LWAPP-WLAN-MIB, CISCO-LWAPP-WLAN-SECURITY-MIB
Flash Memory2 GB
Power DevicePower supply - redundant - plug-in module
Power SupplyPWR-C1-1100WAC/2=
Console PortsUSB (Type-B), Ethernet (RJ-45)
MTBF in Hours205,110
Enclosure TypeRack-mountable - 1U
Stacking CableSTACK-T1-50CM, STACK-T1-1M, STACK-T1-3M
Stack Bandwidth480Gbps
System SoftwareIOS IP Base
Power RedundancyOptional
Expansion Slot(s)1 network module slot and 1 power redundant slot
Rack Mounting KitOptional
EnergyWise LicenseENERGY-MGMT, ENERGY-MGT-100-K9
Available PoE Power800W
Compliant StandardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1X-Rev, IEEE 802.11, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, RMON I and II, SNMP v1, v2c, and v3
Voltage Range (Auto)100V-240V
Dimensions (H x W x D)1.75 x 17.5 x 19.2 inch; 4.45 x 44.5 x 48.8 cm
Maximum Stacking NumberUp to 9 switches with same IOS feature set in same series
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this WS-C3850-48U-S, Cisco C3850 Switch, 48xUPOE/1xModule/1100W PSU (WS-C3850-48U-S) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This WS-C3850-48U-S, Cisco C3850 Switch, 48xUPOE/1xModule/1100W PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the WS-C3850-48U-S, Cisco C3850 Switch, 48xUPOE/1xModule/1100W PSU compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-C3850-48U-S.
